RFR  10/02
Frame rack

home / product a to z / R

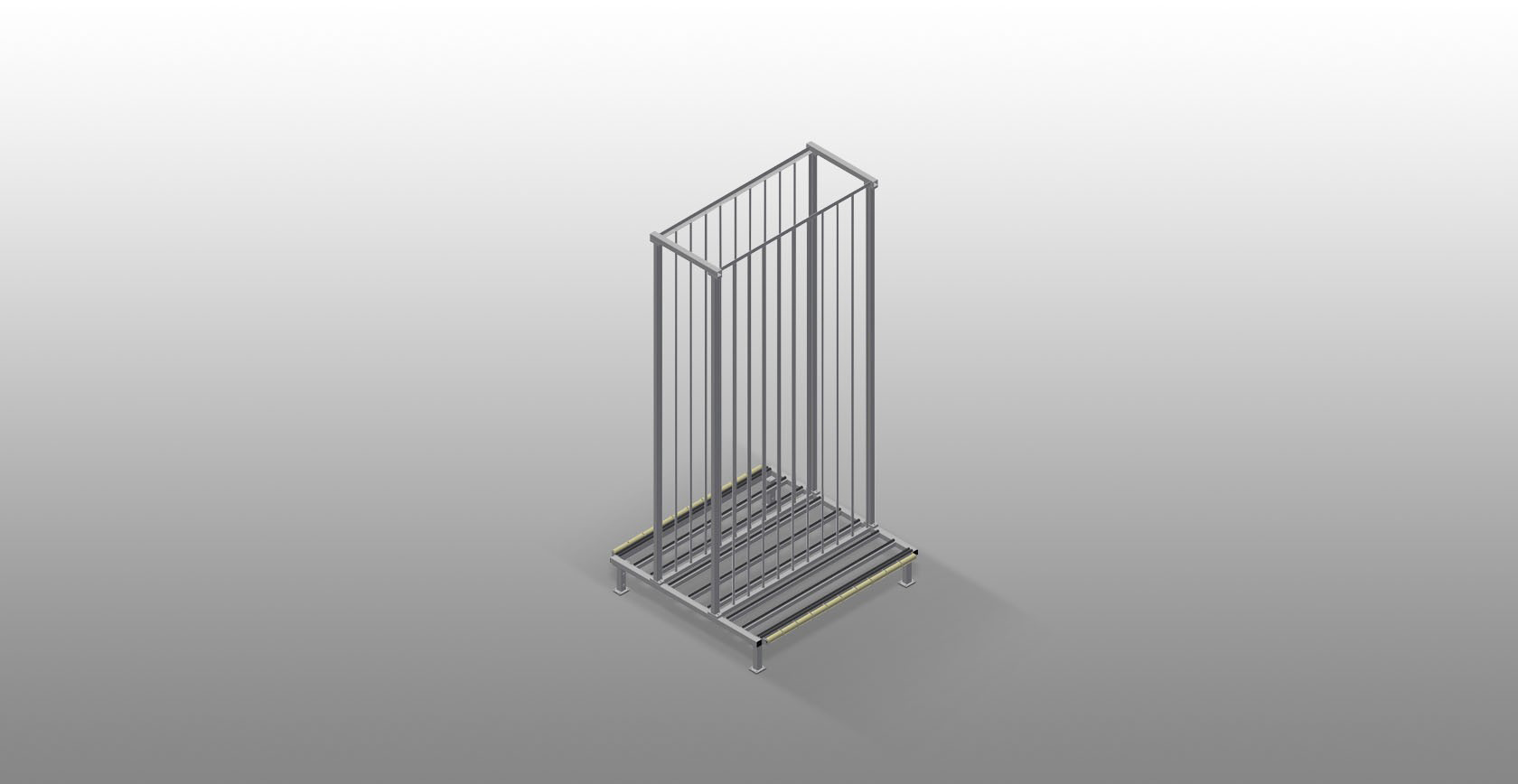

Rack for storage of frame elements. Stable steel construction. Rack for storage of frames. The individual elements are available for direct access. Specially designed for integration in assembly lines. Access is possible from both sides. Floor support equipped with knob profile. Compartment separating bars covered with protective tubing. Supporting surface with rollers for even easier loading and unloading.
Technical data arrow_drop_down
CHARACTERISTICS
Length (mm)
1.950
Width (mm)
1.620
Height (mm)
3.375
Compartments
10
Compartment width (mm)
160
Compartment height (mm)
3.010
Weight (kg)
275
Load capacity (kg)
800
Floor support equipped with knob profile

Compartment separating bars covered with protective tubing

Supporting surface with rollers

Included
Available
Compartments

All supporting surfaces have a non-slip PVC cladding which protects surfaces from damage during storage

RFR 10/02 Compartments Someco
RFR 10/02 Supports Someco

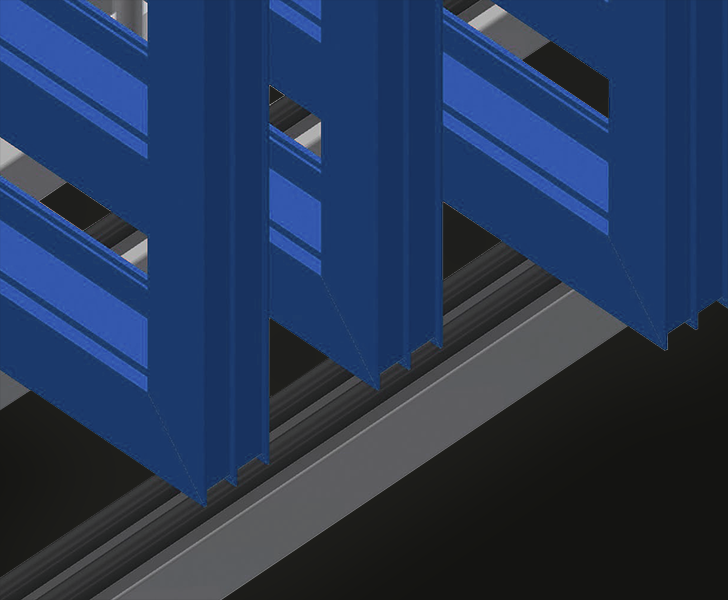

Supports

Lower supporting surfaces with knob profile to protect profiles from damage

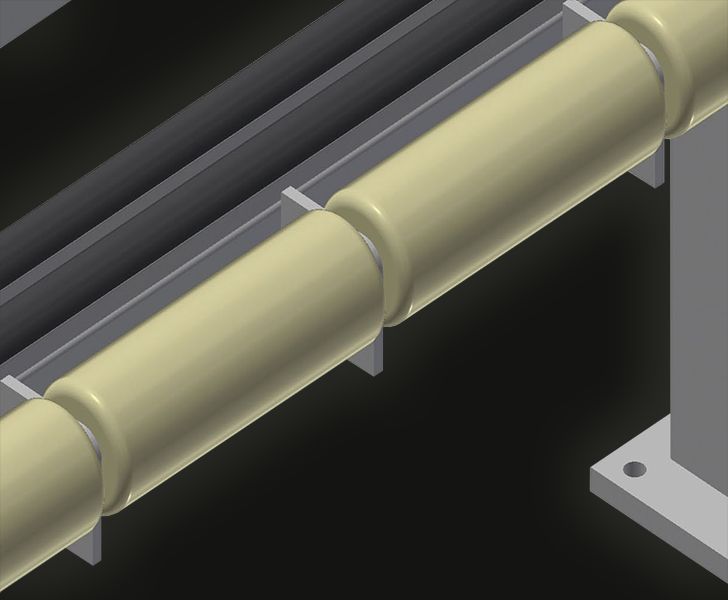

Rollers

Rollers are mounted to every compartment for even easier loading and unloading of heavy or large elements

RFR 10/02 Rollers Someco
