DW
Gasket trolley

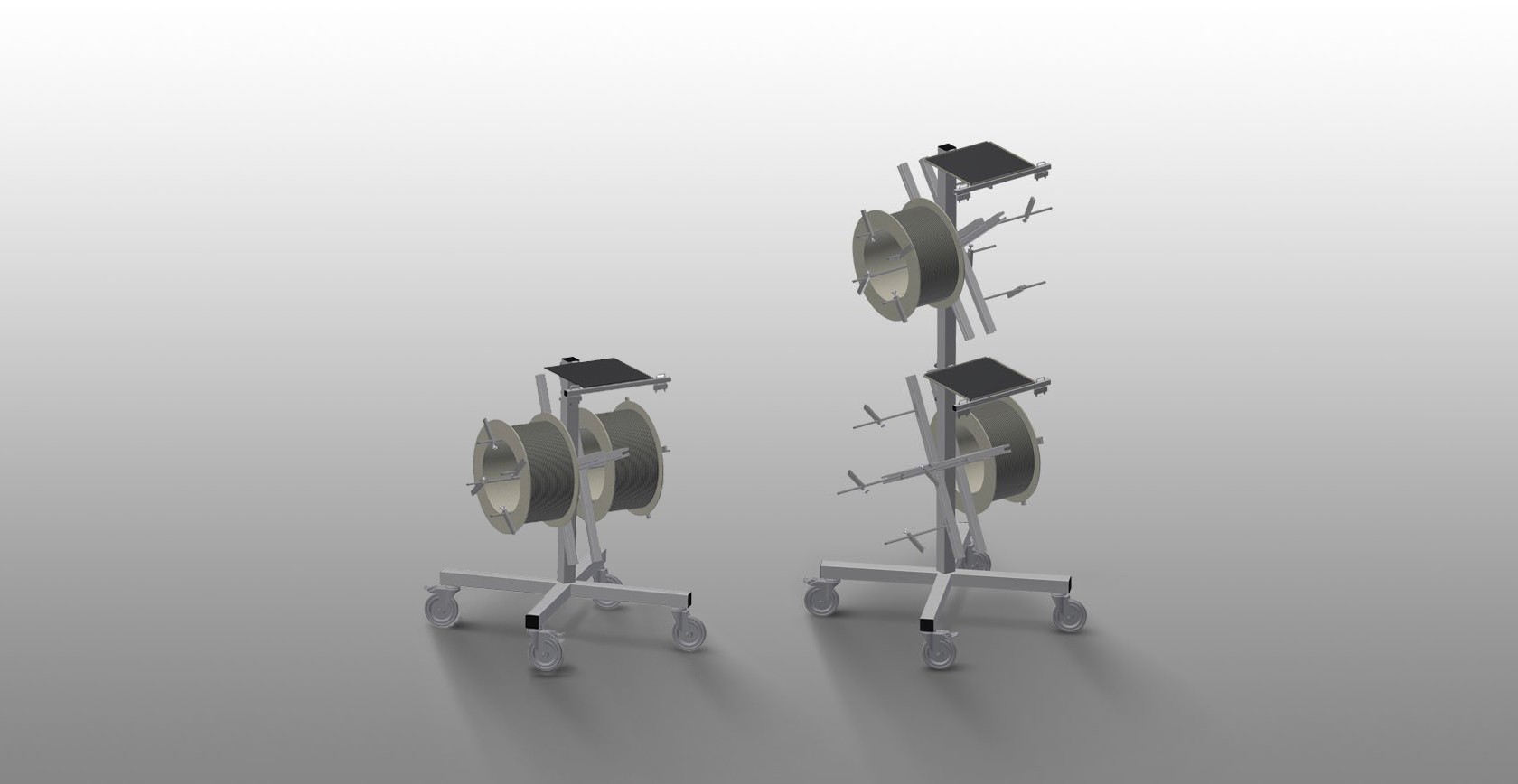

Gasket trolley for gasket reels. Stable steel construction. 2/4 reel mounts, according to model. Indispensable for gasket insertion. Adjustable for any reel diameter. Tool tray. Four swivel castors, two of which with locking stop.

Technical data arrow_drop_down
DIMENSION AND WEIGHT

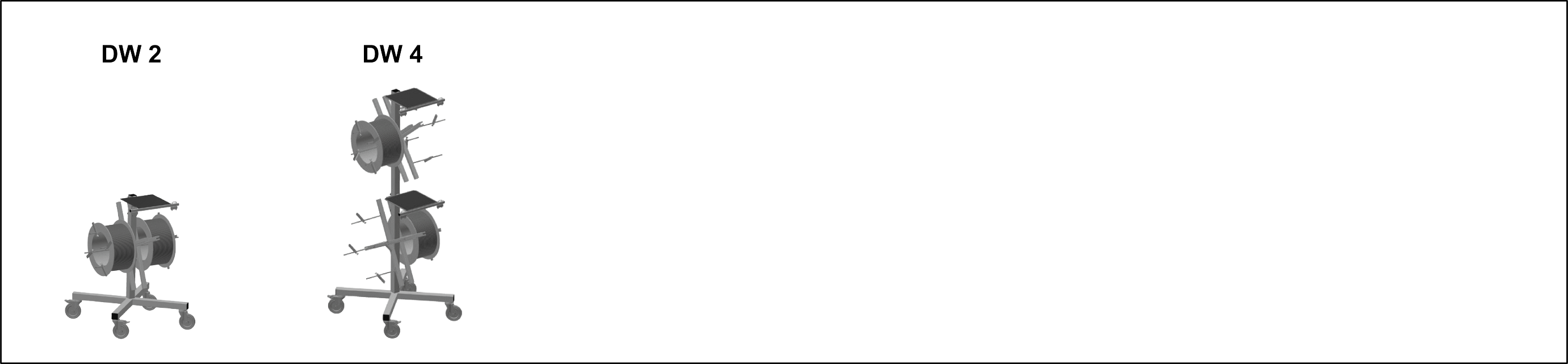

DW 2 / DW 4

Length (mm)
700
Width (mm)
700
Height (mm)
1.005 / 1.870
Weight (kg)
25 / 40
CHARACTERISTICS

DW 2 / DW 4

Reel holder
2 / 4
Maximum reel diameter (mm)
750
Maximum reel width (mm)
250
Swivel castors
4
Swivel castors with locking stop
2
Swivel castors diameter (mm)
125
Included
Available
Casters

Four casters, two of which have a fixing brake, provide a high degree of mobility and easy, safe handling

DW Casters Someco
DW Reel mounts DW 2 Someco
Reel mounts DW 2

For two gasket reels. Mounts adjustable for any reel size

Reel mounts DW 4

For four gasket reels. Mounts adjustable for any reel size

DW Reel mounts DW 4 Someco
DW Storage area for tools Someco
Storage area for tools

Practical tool tray located at working height

Unwinding brake

Unwinding brake for each reel

DW Unwinding brake Someco
