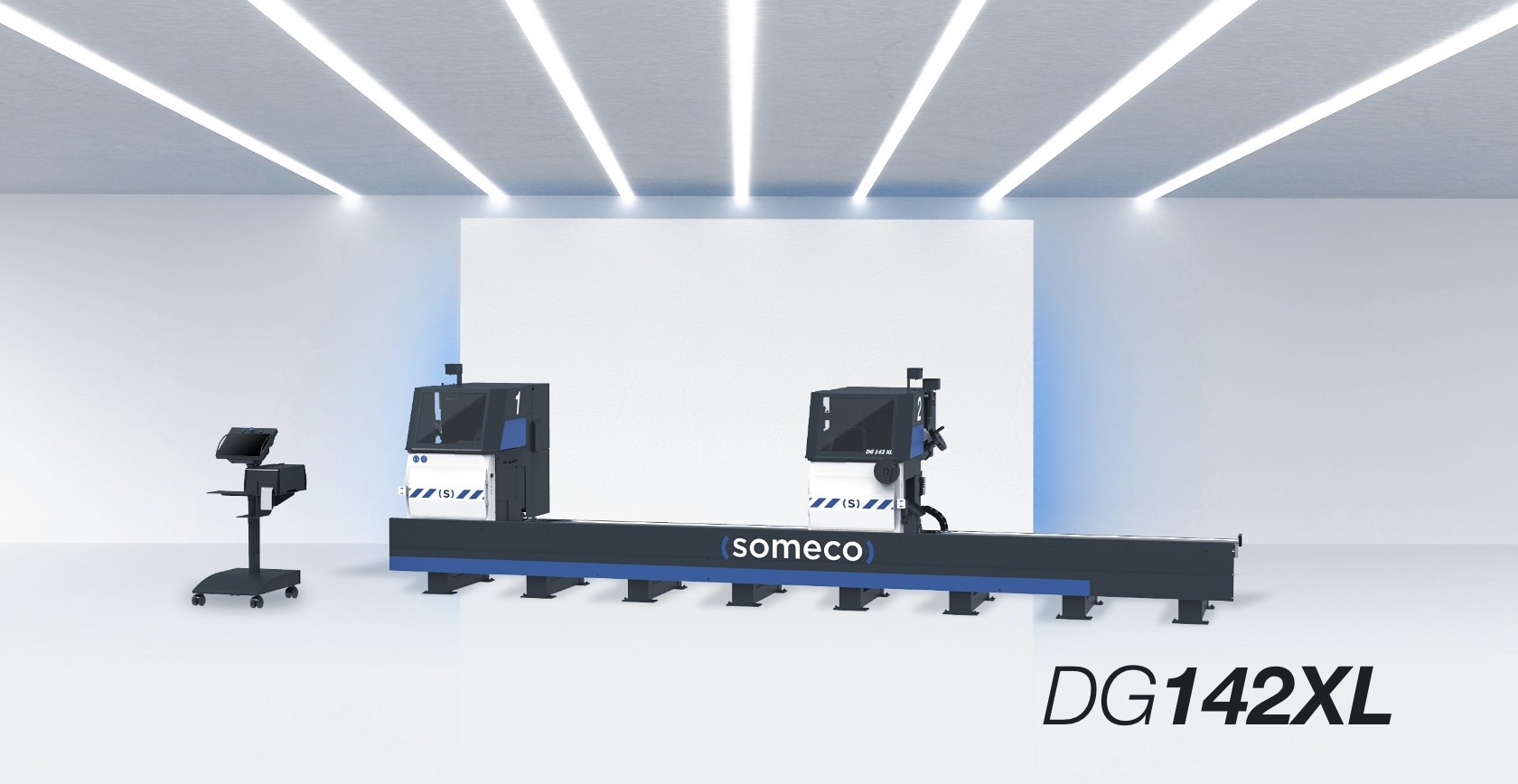

DG  142 XL

Ideal machine for high-volume series production when cutting at 90° and 45°. Equipped with 550mm blades. Manual positioning with E 190 digital display or automatic positioning with E390/E590 control units. Vertical pneumatic material clamping unit. Cutting length variants: 3.000 mm; 4.500 mm; 6.000 mm; 7.500 mm; additional lengths on request. Options: manual angle adjustment for each unit, digital; additional software for E 590: optimisation program, software module for bevel cuts and oversize length cuts for E 590 and E 390 as standard; label printer for variants with E 390 and E 590; mobile workpiece support; material clamping units; transom stop and lead-cut stop; extraction system; stationary and/or travelling roller conveyor; blades; 5.5 kW motors for aluminium machining; hydro feed for aluminium machining; high performance cutting fluid for aluminium machining; pulsed coolant system for aluminium machining; cycling. Controller variants: manual cutting length adjustment with E 190 digital display; positioning control E 390; PC control E 590.

Technical data arrow_drop_down
CHARACTERISTICS
Maximum cutting length, according to model (m)
3 / 4,5 / 6 / 7,5
Smallest cutting length at 90° (mm)
400
Smallest cutting length at 45° inclined (mm)
400
Smallest cutting length with short dimension stop option (mm)
400
Smallest cutting length with short dimension stop and lifting bar option at 90° or 45° inclined (mm)
455
Blade motor power (kW)
4
Blade diameter (mm)
550
Blade speed - motor 50 Hz (r.p.m.)
2.020
Blade speed - motor 60 Hz (r.p.m.)
2.450
Equipped with blades as standard 204311300

External-dimension cuts possible for all cutting variations (only tilting)

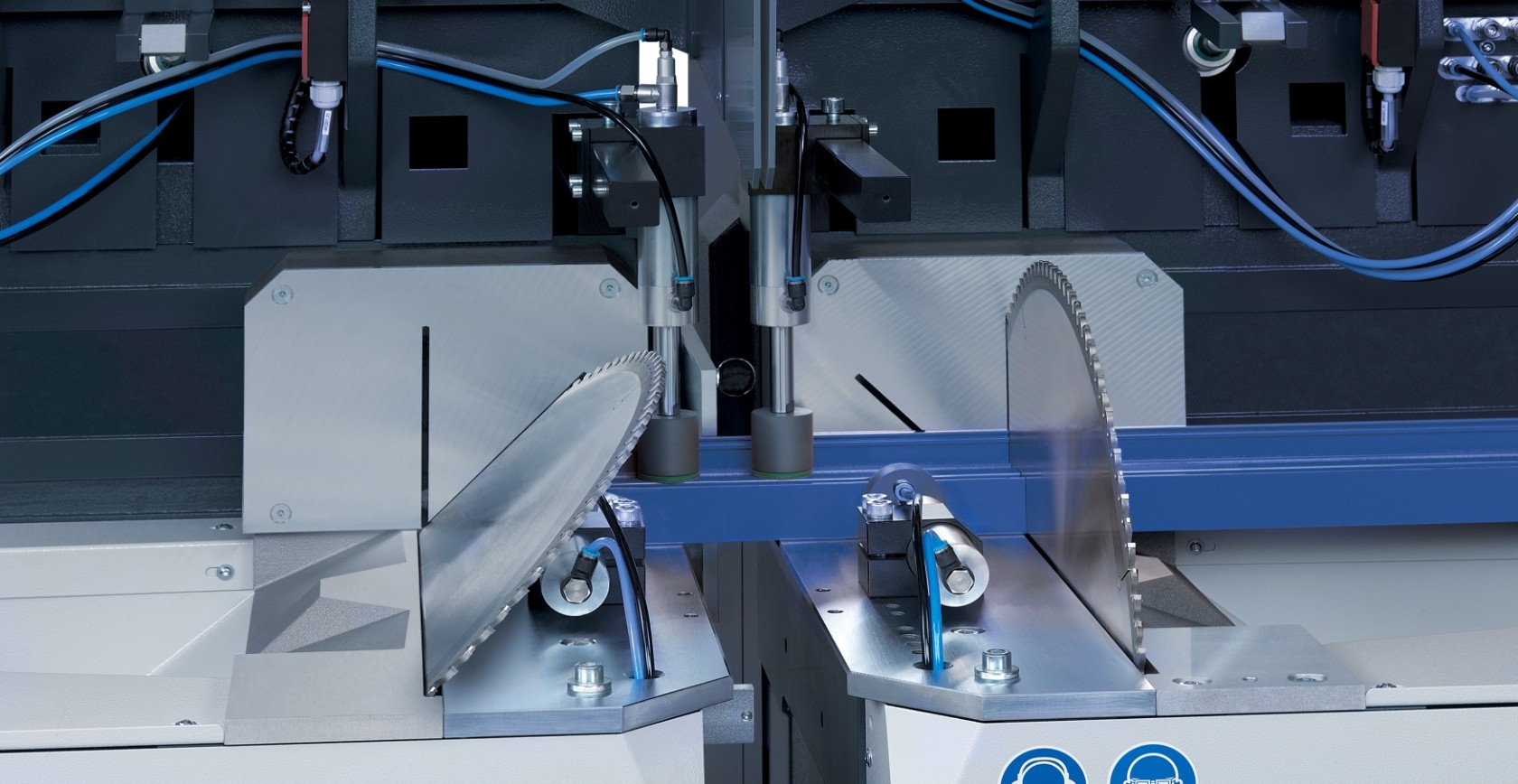

Tilting range inwards, pneumatically
90° - 45°
Intermediate angle manual with digital display and handwheel

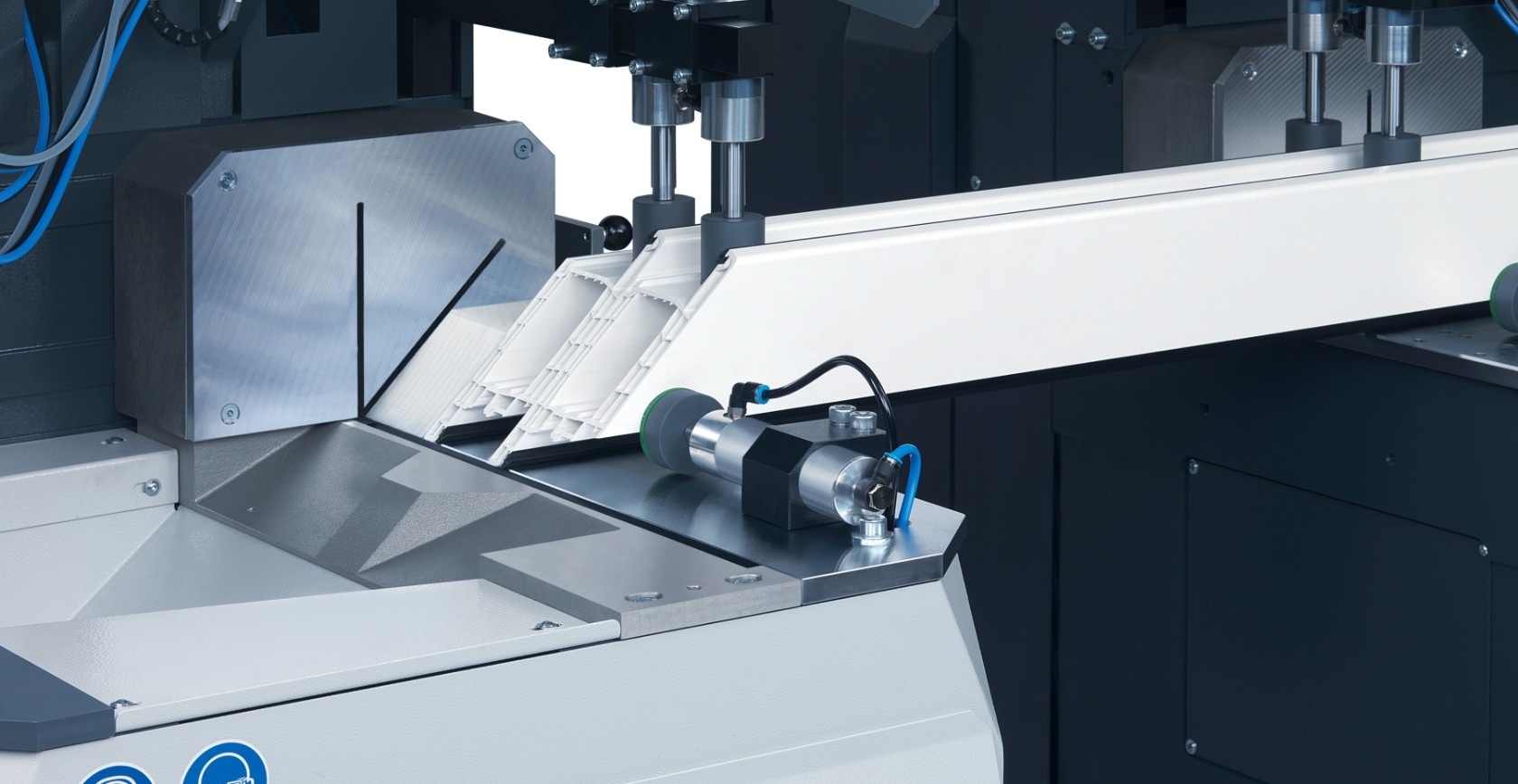

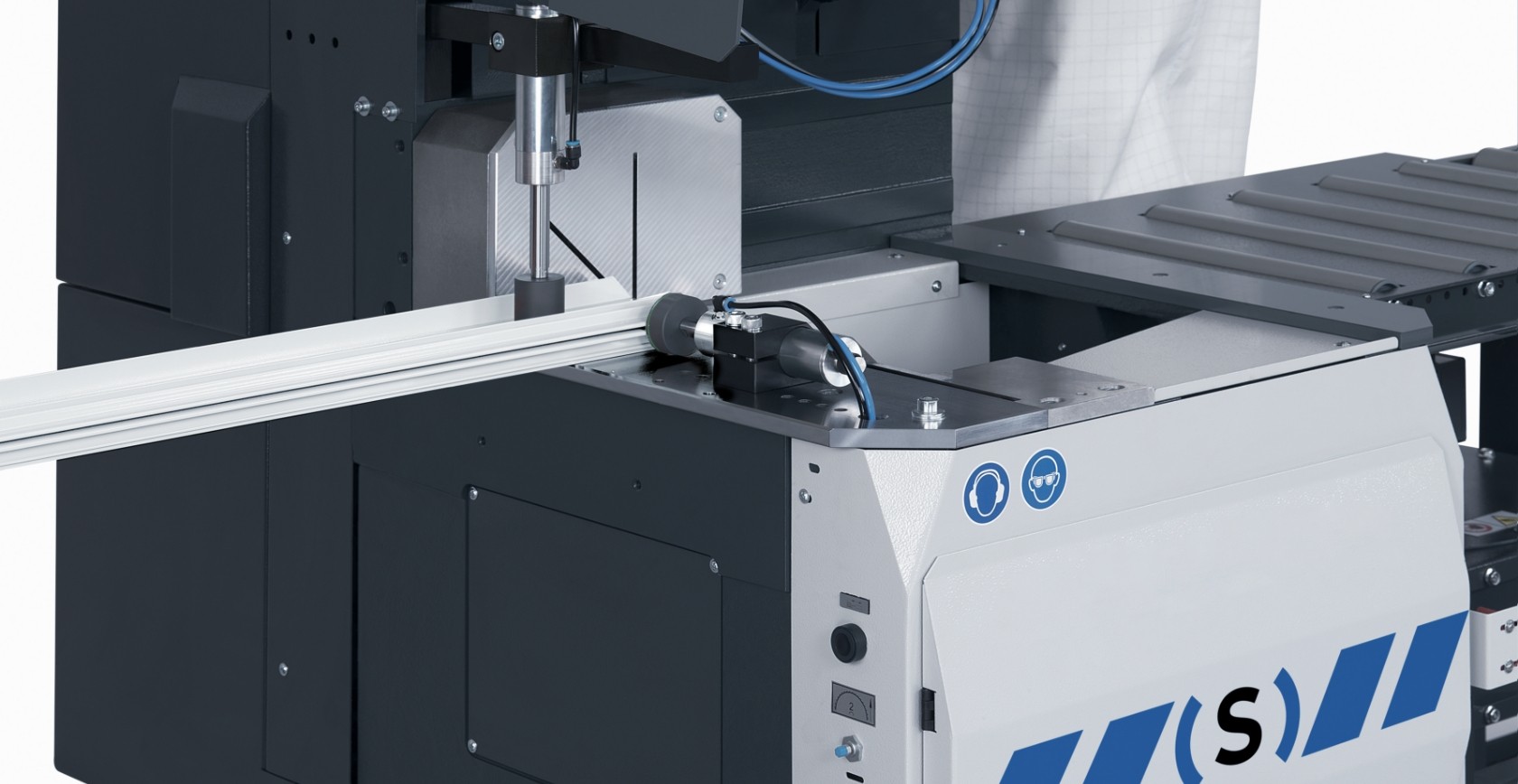

Vertical clamping device per unit
1
Pneumatic locking at end position

Counterblocks

Manual profile support

Protective cover

Basement with stands

Air consumption (6 bar) each cut (l)
40
Swarf exhauster

Roller conveyor

AXIS CHARACTERISTICS MACHINE

  Command and control unit

E190 E390 E590

  Number axes

- 1 1

  Robust, low-wear direct drive of the mobile cutting unit

-



  Cutting length adjustment by means of handwheel


- -




      included

-       not available

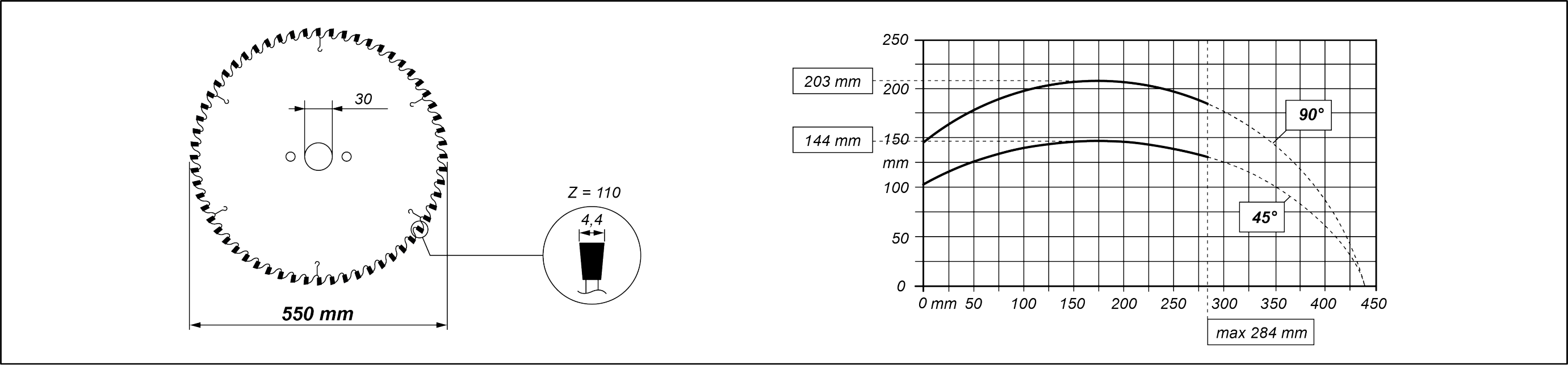

CUTTING DIAGRAM

Pneumatic clamping device horizontal travel 40 mm 80 mm 140 mm
Clamping range

From 62 mm

to 284 mm

From 0 mm

to 245 mm

From 0 mm

to 195 mm

COMMAND FEATURES E190
Cutting length display
E111
Actual value storage of the display in case of mains disconnection

COMMAND FEATURES E390
5,7“ touchscreen display

Machine configurations with one axes

USB port
1
Importable data formats
DGX
Software package for off-cuts and cutiing oversize

COMMAND FEATURES E590
5,7“ touchscreen display

USB port
1
Network port RJ45 (10/100 Mbit)
1
Windows 10 operating system

Software package for off-cuts and cutiing oversize

Importable data formats
DGX
Included
Available
