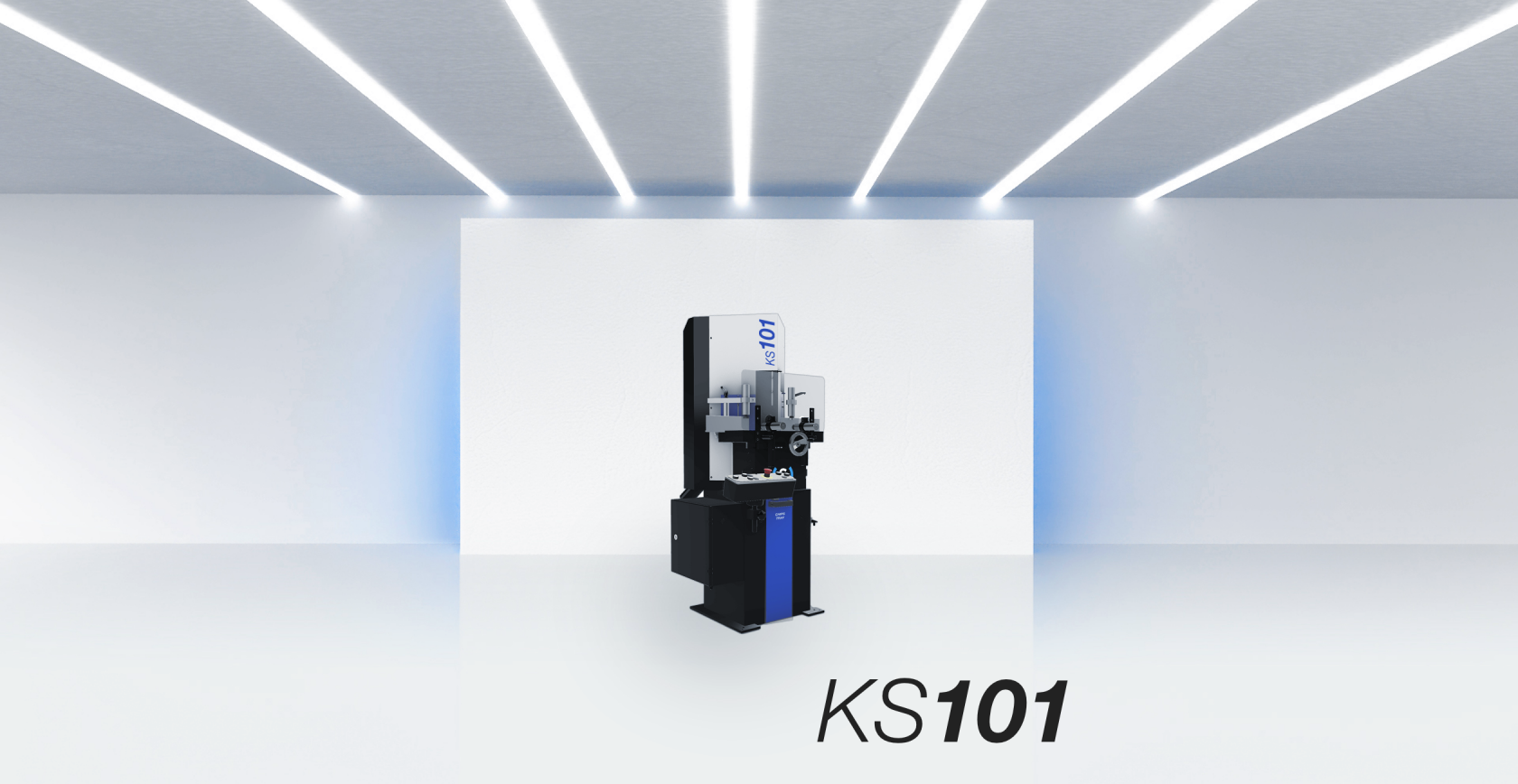

KS  101

Precision Vee-cuts in aluminium and PVC profiles. Pneumatic continuously adjustable blade feed for fast and precise cutting with rapid return. Simple setting of cutting depth. Equipped with connection for swarf extraction hose and swarf container as standard. Equipped with blades as standard. Equipped with pulsed coolant system as standard. Options: material clamping units; length stop and measuring systems; roller conveyor; blades; high performance cutting fluid.

Technical data arrow_drop_down
WORK AREA
Maximum cutting depth (mm)
80
Maximum profile height (mm)
100
Minimum profile length for clamping (mm)
150
V-cut angle
90°
DIMENSION AND WEIGHT
Width (mm)
900
Depth (mm)
800
Height (mm)
1.650
Weight (kg)
240
MOTORS
Three-phase asynchronous motors
2
Power in S1 (kW)
2 x 0,9
TOOLS
Blade diameter (mm)
300
Blade bore (mm)
32
Blade speed - motor 50 Hz (r.p.m.)
2.800
Blade speed - motor 60 Hz (r.p.m.)
3.400
EQUIPMENT
Swarf box

Swarf exhauster connector

Roller conveyor (additional stand required)

Connecting plate for measuring system

Carbide blade 80 teeth

Carbide blade 104 teeth

Vertical clamping device

Horizontal clamping device

ELECTRICAL CONNECTION
Connected load (KW)
1,9
Maximum backup fuse 240V 60Hz (A)
10
Maximum backup fuse 400V 50Hz (A)
10
PNEUMATIC CONNECTION
Pressure (bar)
7
Hose connection
DN10
Compressed air consumption (7 bar) per working cycle (without spraying) (l)
20

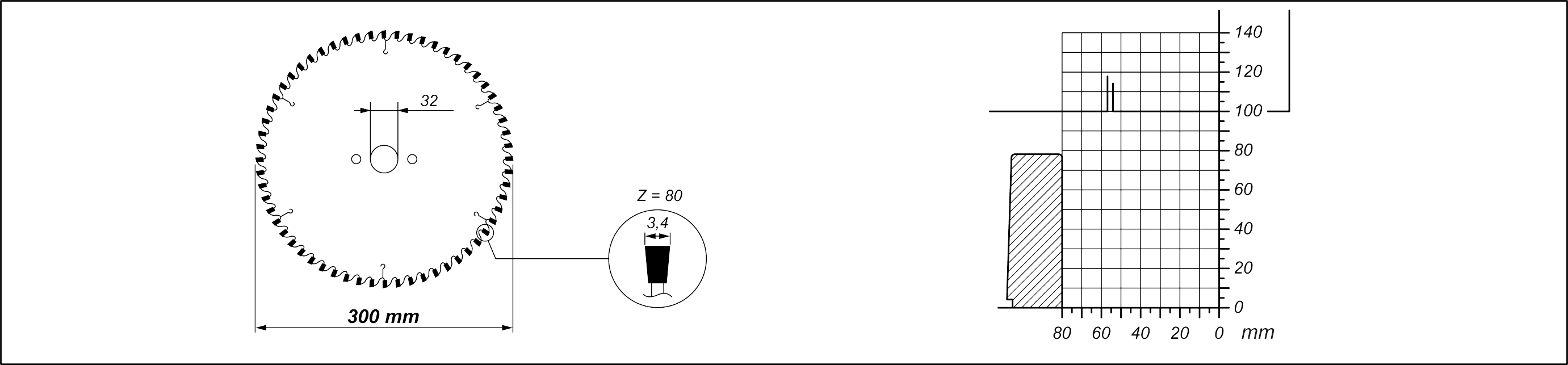

CUTTING DIAGRAM
Included
Available
