Tilting table with height adjustment

home / product a to z / K

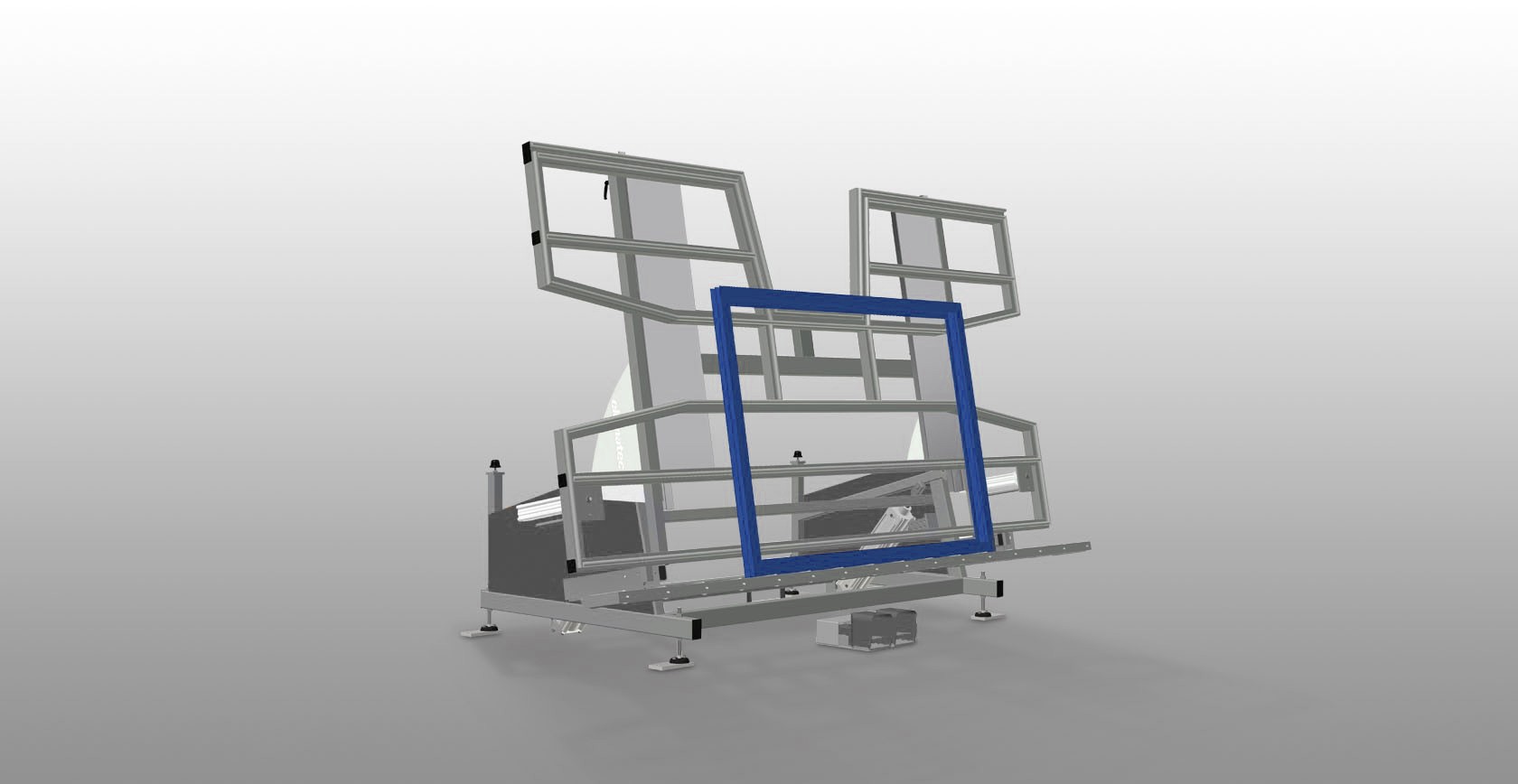

Assembly table for vertical and horizontal assembly. Stable steel construction. Important when switching from vertical to horizontal transportation and vice versa. Ideal for vertical and horizontal assembly. Infinitely variable intermediate positions for ergonomic working. Pneumatic tilting. Pneumatic vertical height adjustment. Table supporting surface with plastic slide bars. Roller support can be lowered pneumatically. Two lateral pneumatic clamps, (lowerable). 4-fold compressed air supply. Options: also available with brush strips on request; also available with felt strips on request (for wooden profiles); also available with rubber strips on request (for aluminium profiles); pull-out table supporting surface at top for KT/KTH 4000; profile protectors for support rollers; additional clamps for KT/KTH 4000; mobility unit for KT/KTH/MS/VE; rail, 2.0 m.
Technical data arrow_drop_down
CHARACTERISTICS
Length (mm)
4.000
Width (mm)
1.820
Vertical height (mm)
1.900
Pneumatic height adjustment (mm)
500
Roller conveyor width (mm)
200
Weight (kg)
380
Load capacity (kg)
200
4-fold compressed air supply

Operating air pressure (bar)
7
Air consumption approx. (l/min.)
35
Pneumatic vertical height adjustment

Pneumatic tilting

Pneumatically lowerable lateral clamps
2
Additional clamps

Extendable table support

Mobility unit

Rail 2,0 m left and right

Table brush strip supporting surface

Table felt profile strip supporting surface

Table rubber knob profile

Profile protectors for support rollers

Included
Available
Supporting surfaces

Supporting surfaces with plastic slide bars

KTH 4000 Supporting surfaces Someco
KTH 4000 Roller support Someco
Roller support

Roller conveyor can be lowered pneumatically to allow unhindered working in horizontal position; in vertical position, trouble-free onward transport is possible

Clamps

Two clamps at the side for fixing the window element in place. Laterally adjustable with hand lever valve. Max. profile clamping height 150 mm

KTH 4000 Clamps Someco
KTH 4000 Foot switch Someco
Foot switch

Control via foot valve, Pneumatic horizontal/vertical tilting; height adjustable pneumatically by 500 mm in the vertical position

4-fold compressed air connection

4-fold compressed air connection for connecting compressed-air tools

KTH 4000 4-fold compressed air connection Someco
KTH 4000 Auxiliary clamps Someco
Auxiliary clamps (Optional)

Auxiliary clamps for KTH 3000 and KTH 4000. Auxiliary clamps provide extra security when working

Profile protectors for support rollers (Optional)

Profile protectors for support rollers 200 mm (Alum./16 x and Alum./21 x). Roller conveyor with protective tubing over the rollers to protect the window element during infeed and outfeed

KTH 4000 Profile protectors for support rollers Someco
KTH 4000 Pull-out profile support Someco
Pull-out profile support (Optional)

Pull-out table support at top for KT/KTH 3000 and KT/KTH 4000.The table support can be pulled out 500 mm at the top for high frames

Brush strip (Optional)

Supporting surfaces with brush strip

KTH 4000 Brush strip Someco
KTH 4000 Felt strip Someco
Felt strip (Optional)

Supporting surfaces with felt strip

Rubber strips (Optional)

Supporting surfaces with rubber-knob profile

KTH 4000 Rubber strips Someco
KTH 4000 Mobility unit Someco
Mobility unit (Optional)

Mobility unit for KT/KTH/MS/VE. Mobility unit with flanged rollers and fixing brake

Rails (Optional)

Rails, 2.0 m, left and right

KTH 4000 Rails Someco
