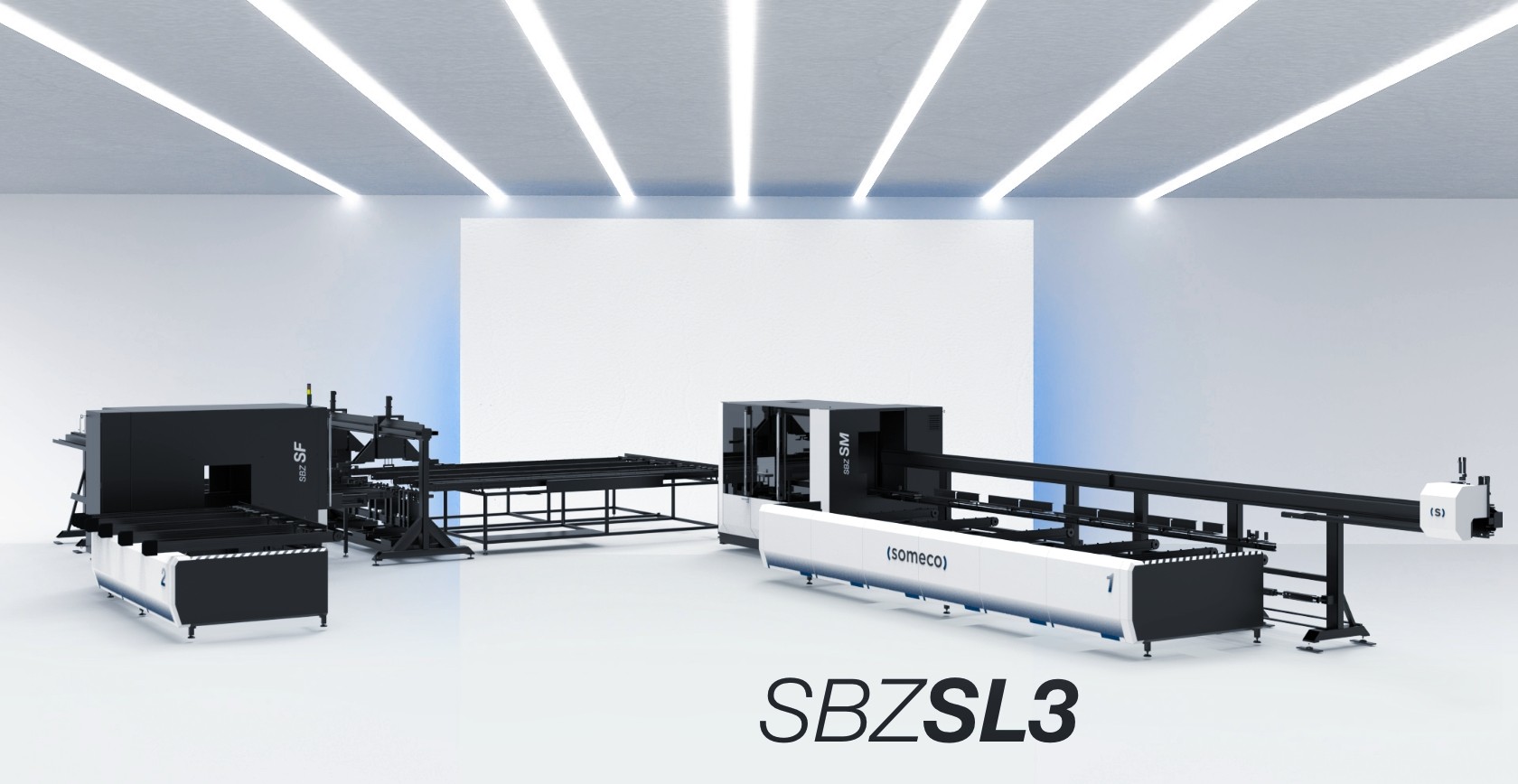

25-axis through-feed bar automatic CNC machining line for milling, drilling, cutting, contouring and screwing reinforcements, specialising in the production of PVC window frames. The machining and cutting unit can be equipped with an integrated contouring module for preparing the PVC profile for welding with Seamless® technology. SBZ SL consists of an automatic magazine with a profile through-feed system, complete with gripper movement for profile clamping. Thanks to the synchronised movement of the gripper and bar magazine, the feeder returns to the start position allowing the loader to prepare the next profile at the same time. The dimensional control system for the profile section allows checking if the profile loaded by the operator is the one indicated in the machining list. The milling module, cutting module and contouring module are located in the SBZ SM unit of the machine. There are 11 electrospindles installed on the milling module which allow working on the whole edge of the workpiece, whichever way it faces. The cutting module is equipped with a Ø 500 mm blade with CNC 3-axis horizontal movement. The optional contouring module operates on 3 CNC axes by means of an electrospindle that allows milling the ends of the profiles cut at 45°. An automatic extractor transfers the workpiece from the cutting unit to the intermediate unloading magazine. This 40-position belt magazine transfers profiles from the SBZ SM unit to the SBZ SF2 unit, a machining module for metal-reinforced segments, perfectly balancing the productivity of the two units. The SBZ AS 2/2 high-efficiency automatic screwing unit is installed on this magazine. It consists of a transverse beam on which four torque-controlled screwing units are mounted, which fasten the reinforcements to the pre-machined profile segments by means of self-tapping screws at a pitch defined by the control program. The SBZ SF2 unit consists of a triple drilling unit for drilling holes for cremone bolts, 2 drilling units for frame assembly holes and a single-tool unit for drilling frame hinges. The unit consists of a transversal belt magazine for the unloading of machined workpieces long up to 3500 mm. The machining units are equipped with soundproofed cabins in the operating part which, in addition to protecting the operator, also reduce the environmental noise impact. The cabin of the SBZ SM can be connected to the swarf exhauster (optional). PVC waste and swarf are collected in 2 drawers at the base of the machining module, which, combined with a belt evacuation system, facilitate and speed up cleaning operations. The line is supplied with an intuitive operator interface for machining list management connected to the production programming software. Industry 4.0 ready.

Estimate Request

Technical data

MACHINE SPECIFICATIONS

Number of controlled axes

Standard milling unit no. (SBZ SM)

Cutting unit

Contour unit: milling for seamless welding

Dowel drilling units no. (SBZ SF2)

2 / 4

Triple drilling unit

Single-tool unit for drilling hinges

Multi-tool unit for drilling hinges

Screwing units on SBZ AS 2/2

Bar positioning speed (m/min)

Bar dimension check

Operating pressure (bar)

6 ÷ 8

Air consumption (Nl/min)

1.600

Installed power (kW)

28,8

Programmable digital adjustment of the clamp pressure

Presetting for machining of PVC profiles with fiber-glass reinforcement

WORK AREA

Minimum profile height (mm)

Minimum profile width (mm)

Maximum profile height (mm)

160

Maximum width of the profile (mm)

130

Maximum reinforce thickness (mm)

LOADING UNIT: PROFILE POSITIONING

Loading feeder with 2 controlled axes gripper

Maximum loadable length (mm)

6.500

Minimum loadable length (mm)

600

Maximum length that can be machined on a single workpiece (mm)

6.000

Maximum workpiece length that can be cut (mm)

3.000

Minimum workpiece length that can be cut (mm)

400

Profile loading in concurrent operation time

MILLING UNIT

Maximum power in S1 (kW)

1,1

Maximum speed (rpm)

18.000

Electrospindles in fixed position

Electrospindles adjustable with NC

MILLING UNITS WORKING CAPACITY

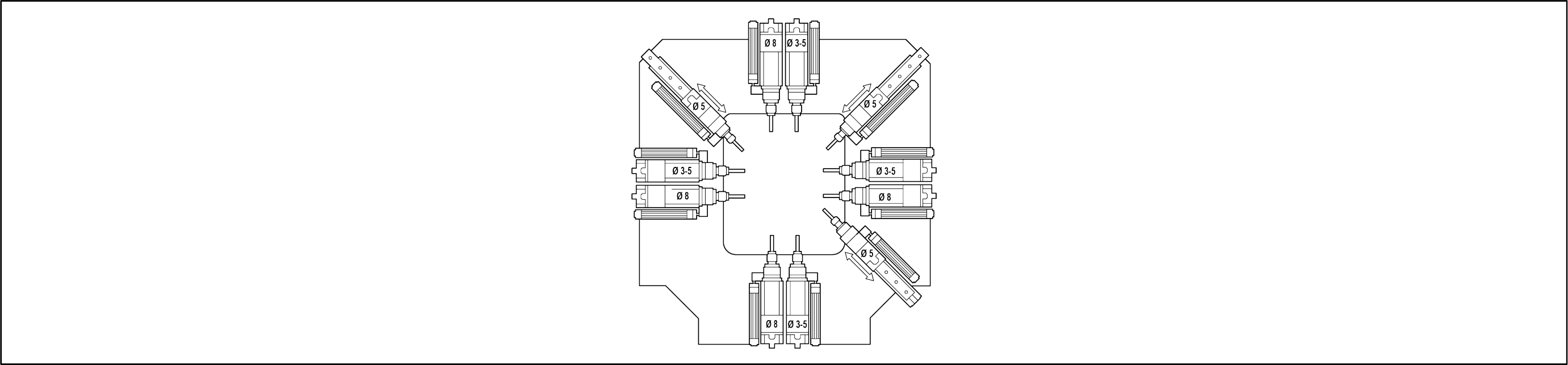

Electrospindle configuration

Loading side view

VERTICAL CUTTING UNIT

Blade diameter at carbide-tipped (mm)

500

NC blade positioning

-45° ÷ +45°

Blade motor power (kW)

2,2

Specific blade design for perfect cutting of gasket

SBZ AS 2/2 SCREWING UNIT

Screwing front units (frame) no.

Screwing rear units (sash) no.

Screw minimum length (mm)

Screw maximum length (mm)

Screw diameter (mm)

3,9 ÷ 4,2

Discharging time of screw from loader (s)

0,1

Bar positioning speed (m/min)

Screwing unit heads positioning speed (m/min)

DOWEL DRILLING UNITS

Maximum power in S1 (kW)

1,1

Maximum speed (rpm)

6.000

Tool diameter (mm)

6 / 8

TRIPLE DRILLING UNIT

Tools diameter (mm)

10 / 12 / 10

Maximum power in S1 (kW)

1,5

Maximum speed (rpm)

900

FRAME HINGES DRILLING UNIT

Tools diameter (mm)

5 / 6

Maximum power in S1 (kW)

1,1

Maximum speed (rpm)

6.000

DRILLING AND SCREWING UNITS WORKING CAPACITY

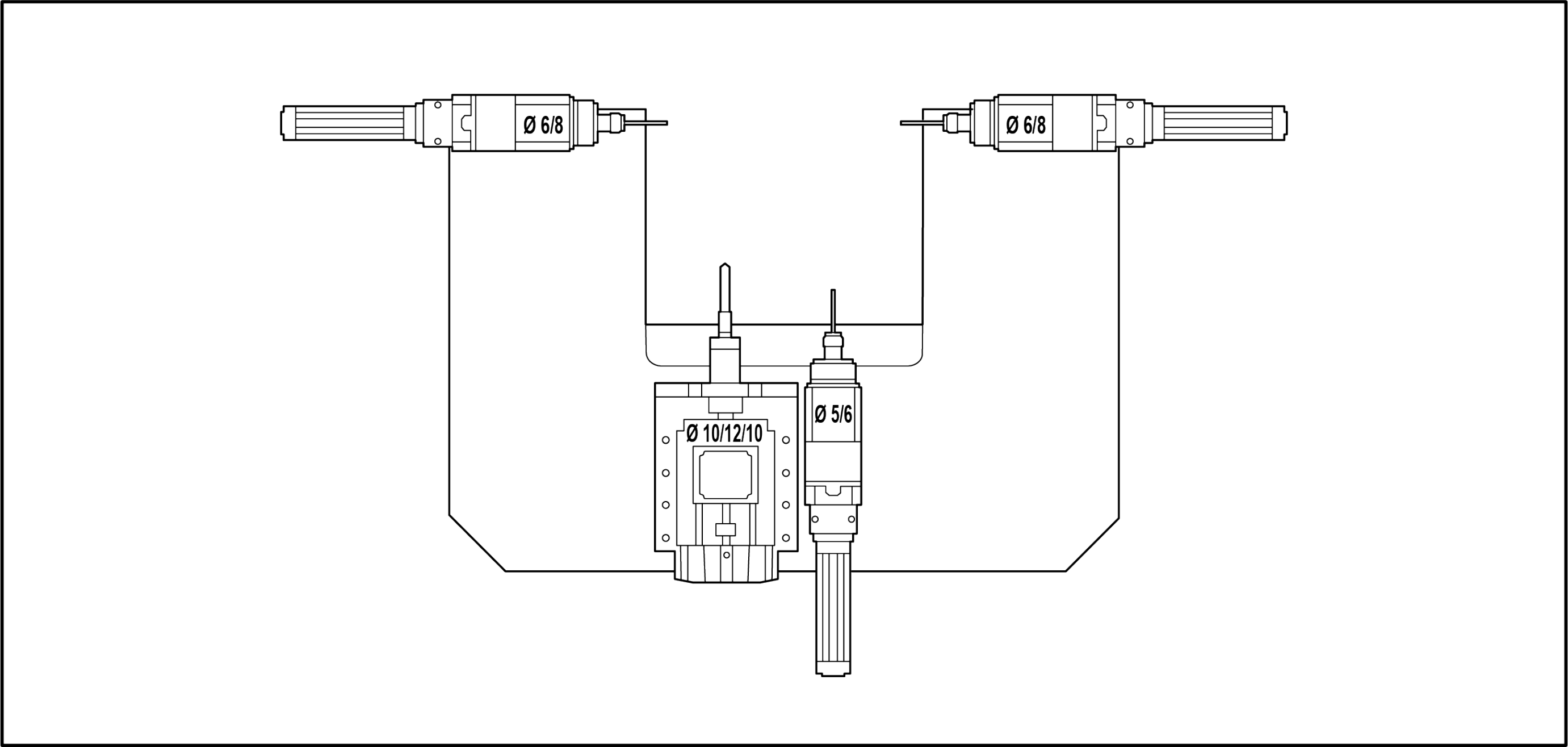

Electrospindle and screwing units configuration - Standard

Loading side view

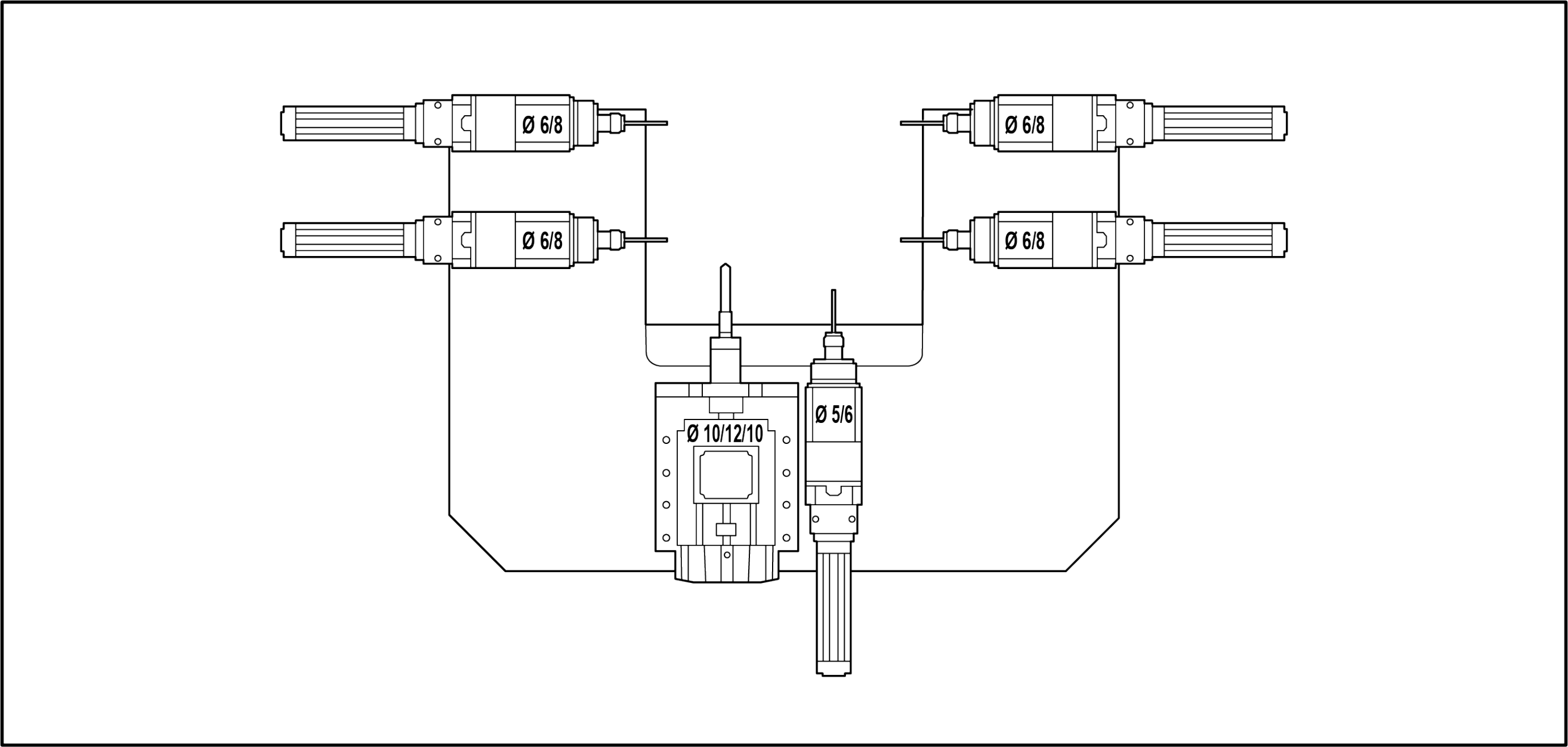

Electrospindle and screwing units configuration - Full optional

Loading side view

UNLOADING UNIT

Belt unloading magazine for workpieces of up to 3.500 mm

Belt magazine unloading depth (mm)

1.800

Extraction NC clamp

Fast profile unloading system

Included

Available

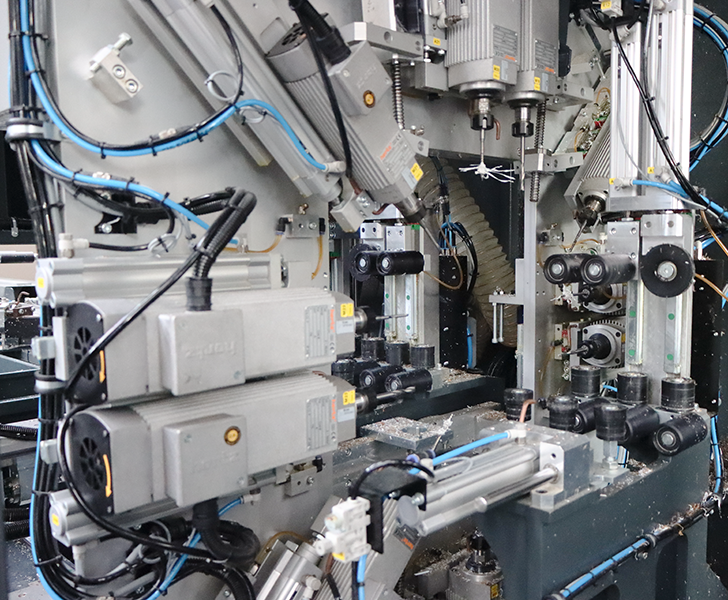

Milling unit

The milling module provided on SBZ SM features 11 electrospindles, of which three can be adjusted to perform all necessary machining operations on the PVC profile. In the second machining phase, the drilling units on the SBZ SF2 drill the holes for fitting hinges and the wall mounting holes, and perform the Cremone bolt drilling.

Cutting unit

The line is equipped with a down-stroking movement with Ø 500 mm blade, which is an integral part of the SBZ SM cutting and milling unit. The cutting disc is expressly designed to cut PVC with a high degree of efficiency and is optimised for precise cutting of gaskets. The numerical control unit allows performing cuts at an angle from -45° to +45° on a vertical axis.

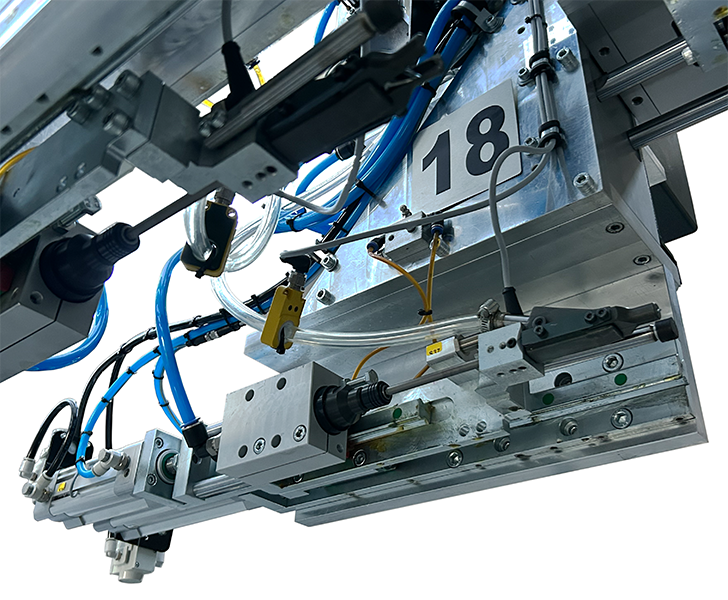

Screwing unit

The line has 4 pneumatic screwing units with automatic feeding. These units, which are part of the SBZ SF2 supply, are mounted on a bridge structure which performs the screwing of the metal reinforcement in profiles for sashes and frames. Other two screwing units, one dedicated to profiles for sashes and the other for frames, can optionally be featured on SBZ SF2, fitted on a rotary base with automatic movements on 2 NC axes.

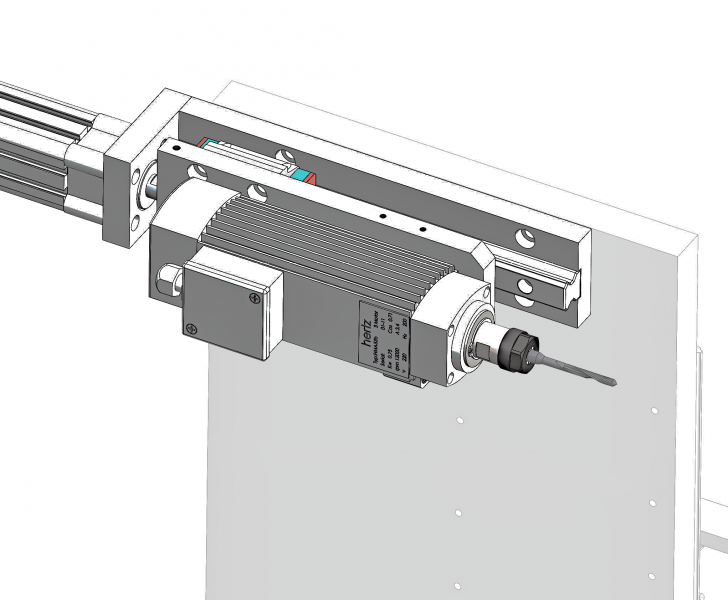

Drilling unit for wall mounting

Two drilling units, fitted on a rotary base with automatic movements on 2 NC axes, are used to perform machining for wall mounting of frames.

Seamless technology (Optional)

The line can be perfectly integrated with Seamless counterblock technology for zero-seam welding. An optional CONTOUR module for the contouring required for this welding technology can be integrated into the profile machining process. An intuitive and efficient software allows defining the machining paths by interpolation of the profile edge; the contouring programmes can be differentiated based on colour and film of the different types of profile.

Line management software

The line is equipped with a simple and ergonomic user interface, which allows machining the work flows in an efficient and balanced way. The totem has a Wi-Fi antenna for connecting the machine to the network that ensures both interconnection with the production programming, through specific drivers, and remote connection for the management of the technical service in case of need. The software manages worklists from the management system that can be directly connected with the line.
