SBZ  616/01

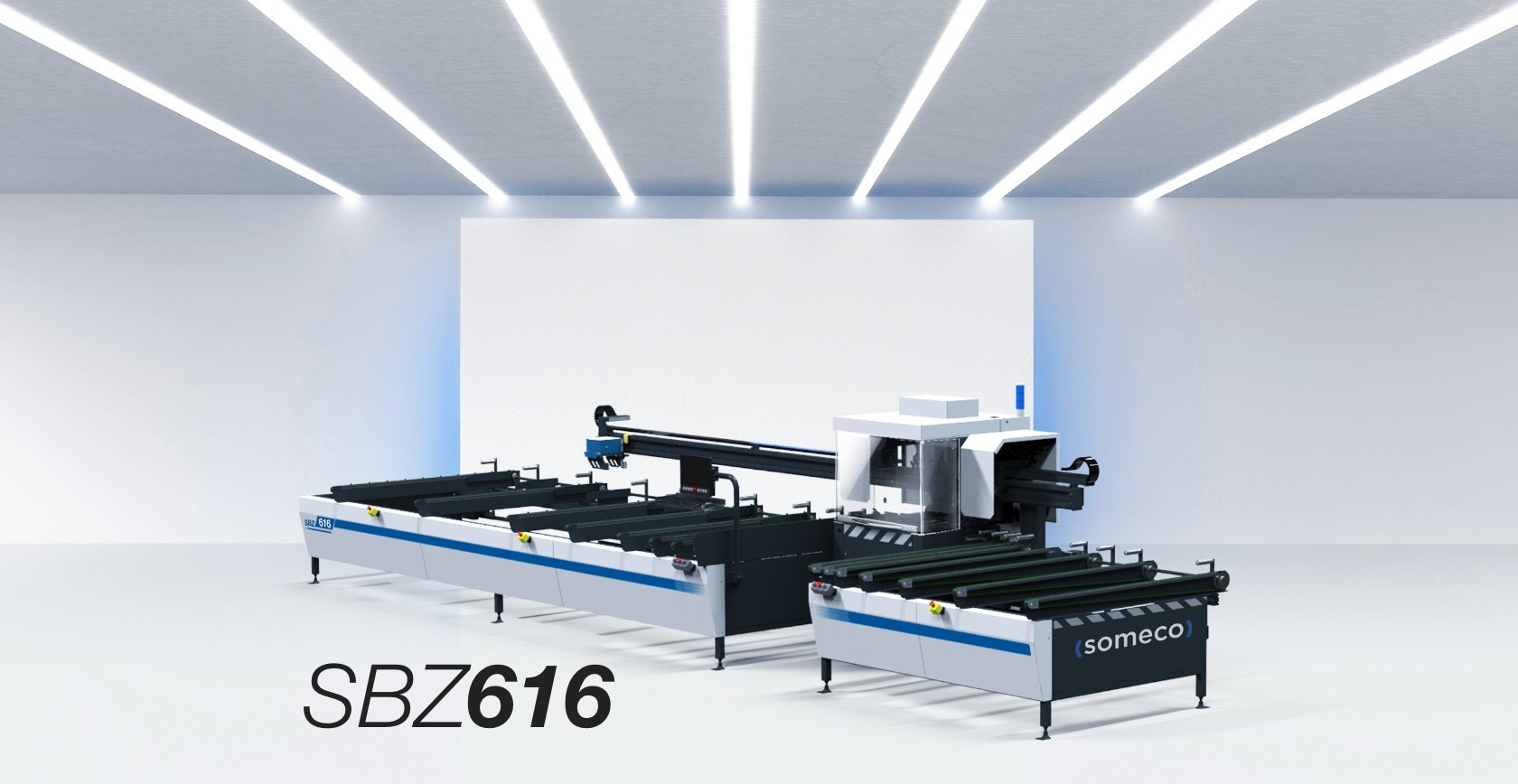

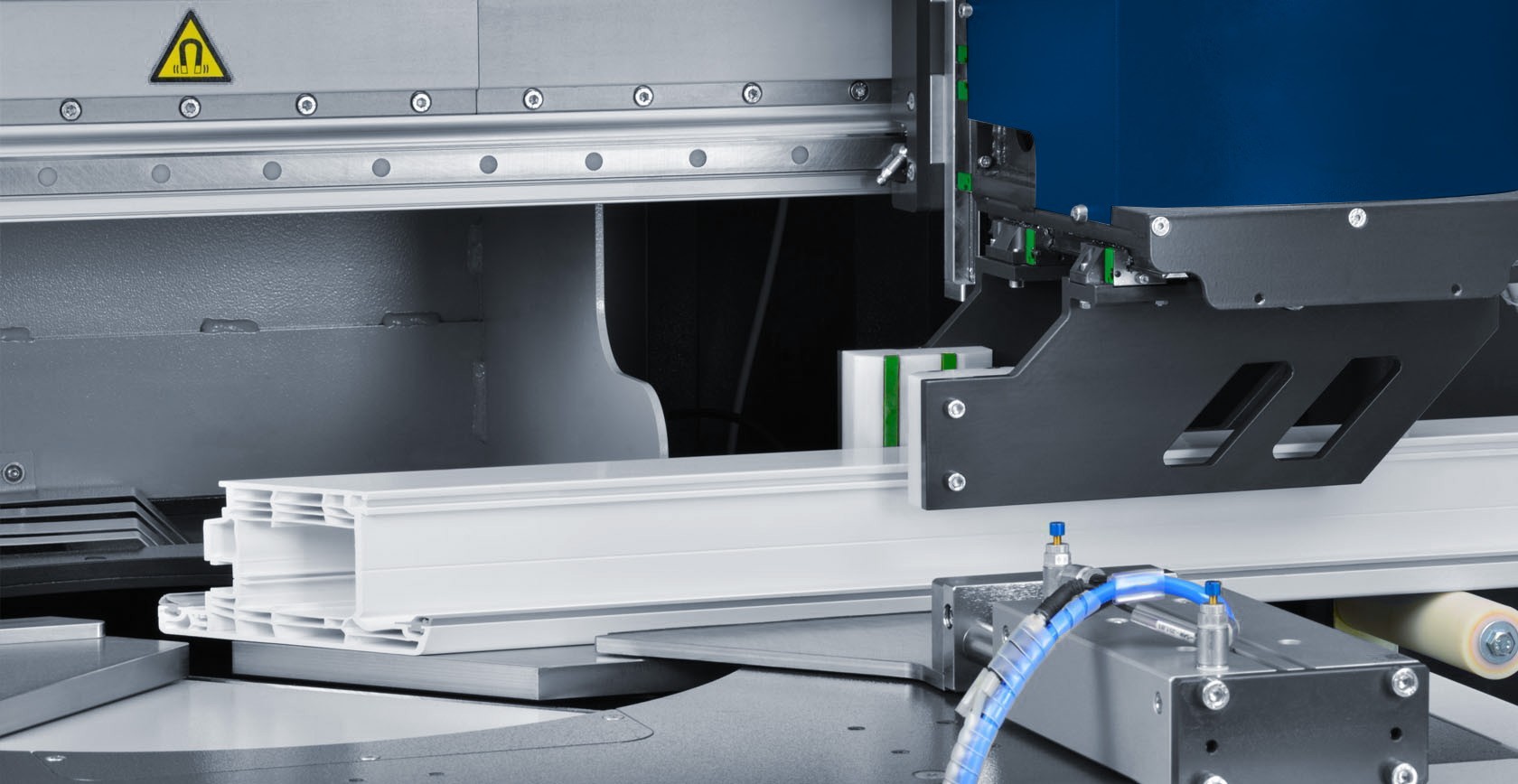

Automatic cutting centre for PVC profiles. Loading magazine for up to nine profiles. Lifting function for cycling the empty compartments. In- and outfeed with motorised, continuously adjustable gripper. Rubberized gripper jaws prevent profile damage. Pneumatic blade feed. Outfeed for parts via discharge table. Options: feed with servo drive; label printer; outfeed for parts via a belt conveyor protects profiles and offers different capacities; gasket downholder for precision gasket cutting; high fences for precision cuts on high profiles.

Technical data arrow_drop_down
AXIS TRAVEL
X AXIS (bar positioning) (mm)
3.430
Y1 AXIS (gripper transversal positioning) (mm)
130
Z1 AXIS (gripper vertical positioning) (mm)
130
MACHINABLE CUTTING ANGLES
Cutting angle
22°30’ ÷ 157°30’
LOADING UNIT: PROFILE POSITIONING
Workpiece reference stop near the working unit

Maximum loadable length (mm)
6.500
Loading feeder with 2 controlled axes for workpieces of up to 4.000 mm with gripper

Electronically controlled 0 - 180° collet rotation (C1 axis)

Minimum machinable profile section W x H (mm)
30 x 30
Maximum profile height W x H (mm)
150 x 150

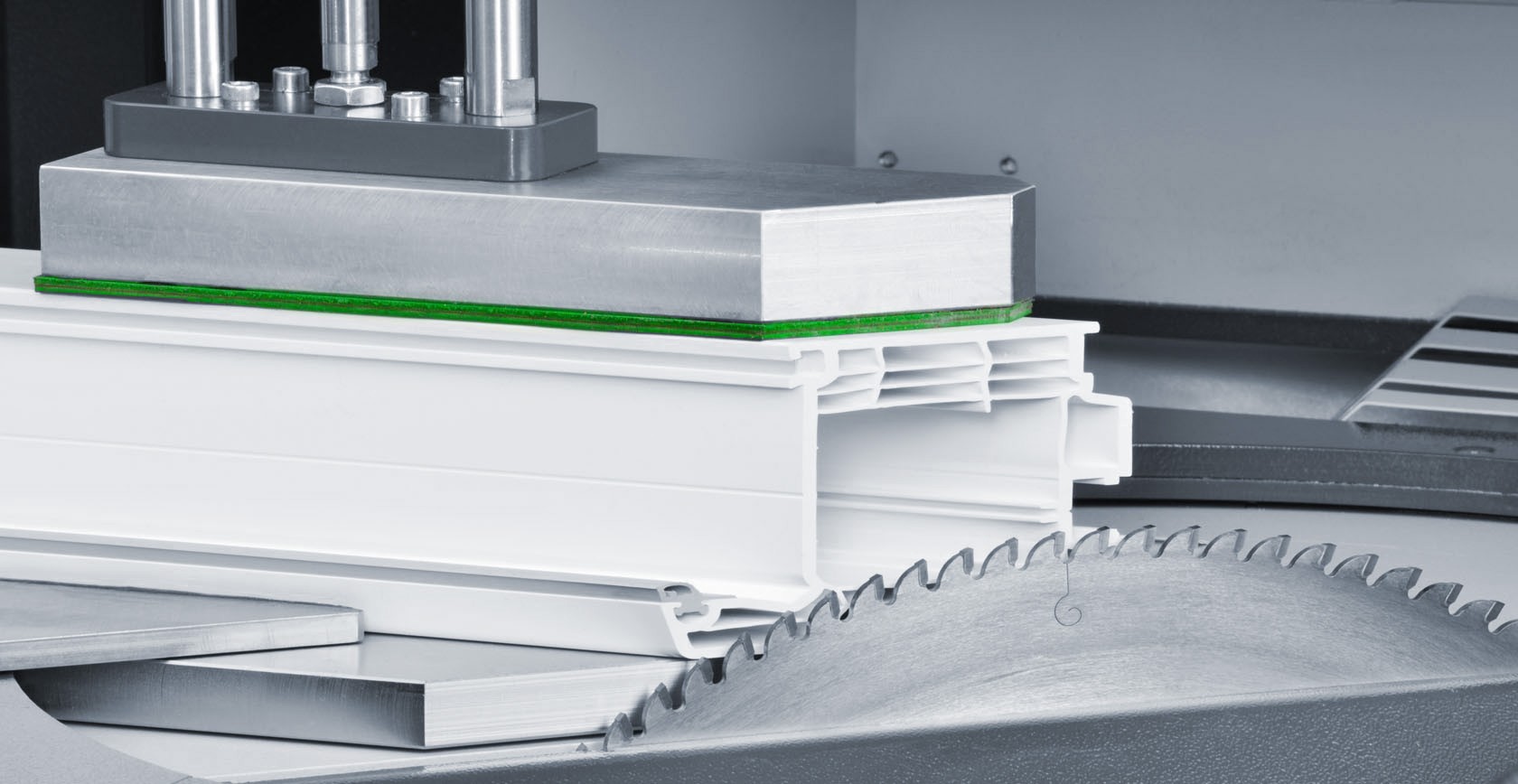

WORKPIECE LOCKING
Automatic fixed clamping system before machining area

Automatic fixed clamping system after machining area

Clamping system standard, high 20 mm

Clamping system for profile adapted to profile system

FUNCTIONS
Label printer

CUTTING MOTORS (MANUAL CHANGE)
Maximum power rating in S6 (kW)
4
Maximum speed (r.p.m.)
2.850
Air cooling

Blade diameter (mm)
550
Number of motors
1
Fixed cutting angle
22°30’ ÷ 157°30’

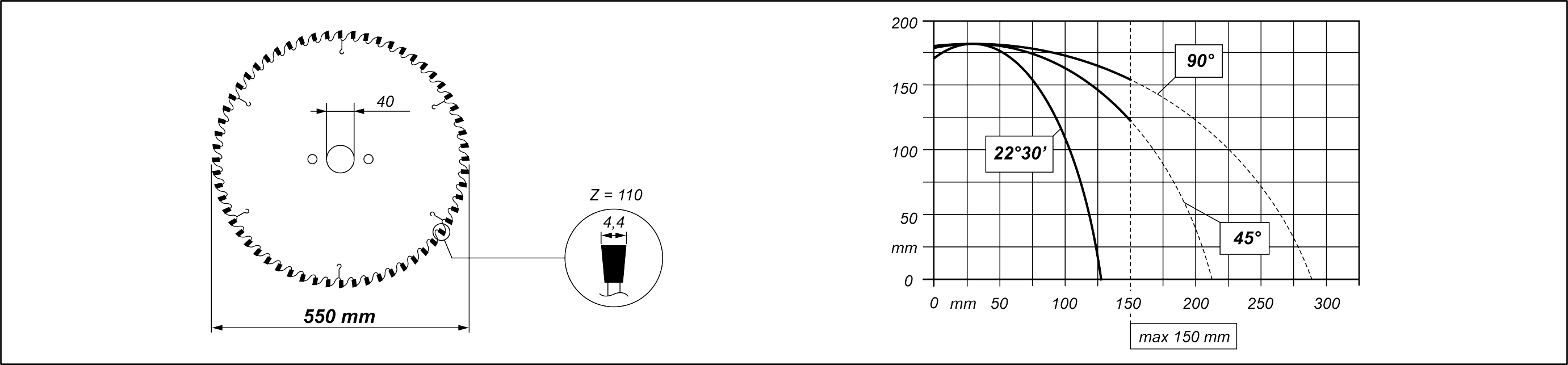

CUTTING DIAGRAM
SUPPORT BASE
Monolithic in electrowelded and standardised steel

UNLOADING UNIT
Unloading table with a pneumatic pusher for workpieces of up to 4000 mm

Belt magazine unloading depth (mm)
1.900
ELECTRIC CABINET COOLING
Electrical cabinet with air conditioner for operating temperature < 45 °C

Electrical panel and CN conditioner for operating temperatures < 50°C

Included
Available
