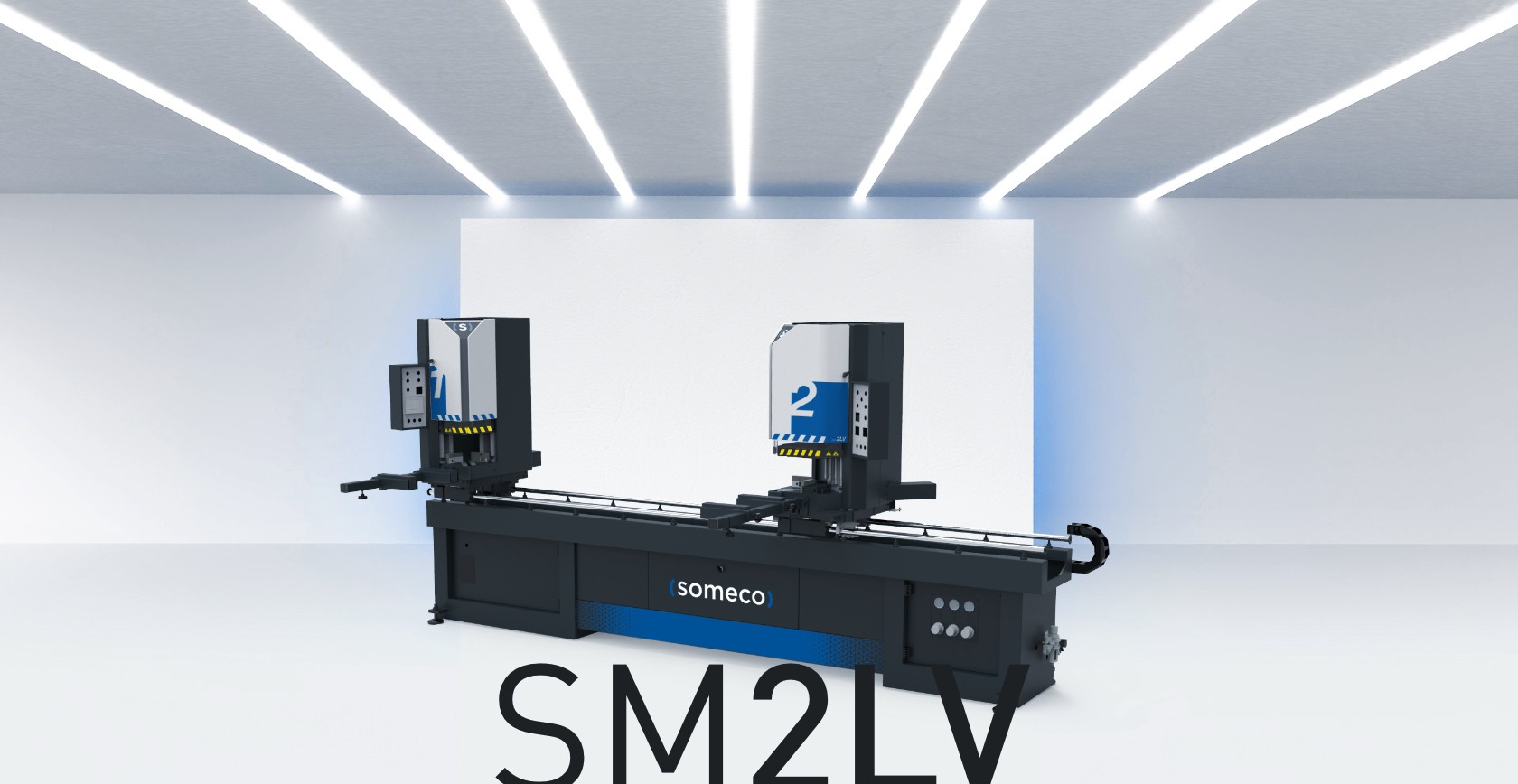

SM  2LV

Automatic in-line welding machine with fixed head for right angle corners and movable head for corners in the range 30° to 180°. SM 2 LV comes in 2 versions and 2 lengths: with or without heated knives and with a max. length of 3440 mm (long version) or 2440 mm (short version). SM 2 LV is provided with heated welding bead restrictors adjustable in the configuration phase, in a range from 0.2 to 2 mm; it also has vertical vices running on linear slideways. Depth of fusion can be set at 2.5 or 3 mm while the support arms feature adjustable height. SM 2 LV can be fitted with counterblocks (optional) for standard and Seamless welding and can handle all types of standard profiles (including acryilic and coated). The machine, provided with a quick change system, allows easy cleaning of the teflon film. The work cycle is controlled by a PLC while the heating plate has a digital temperature controller (settable in both °C and °F); the heating time can be set via the LCD display.

Technical data arrow_drop_down
MACHINE SPECIFICATIONS
Maximum welding size (long / short version) (mm)
3.440 / 2.440
Minimum welding size (mm)
420
Dimensions of the plate on the fixed head (length x width x thickness) (mm)
250 x 300 x 13
Dimensions of the plate on the movable head (length x width x thickness) (mm)
340 x 300 x 13
Maximum profile width – welding at 90° (mm)
150
Maximum profile width – welding at 180° (mm)
230
Maximum profile height (mm)
200
Minimum profile height (mm)
40
Automatic distancing at the end of the welding

Compatible with Seamless counterblocks

Counterblocks quick change

Welding bead (presettable during the configuration phase) (mm)
0,2 ÷ 2
Adjustable welding bead width 0,2 - 2,0 mm

Heated welding bead restrictors

Welding temperature control (°C)
0 ÷ 260
Bead temperature control (°C)
0 ÷ 50
Melting time setting

Welding time setting

Overall dim. (width x long/short version length x height) (mm)
1.000 x 4.000 / 3.000 x 1.900
Installed power (kW)
5
Weight (long / short version) (kg)
740 / 670
Included
Available
