CM  1H

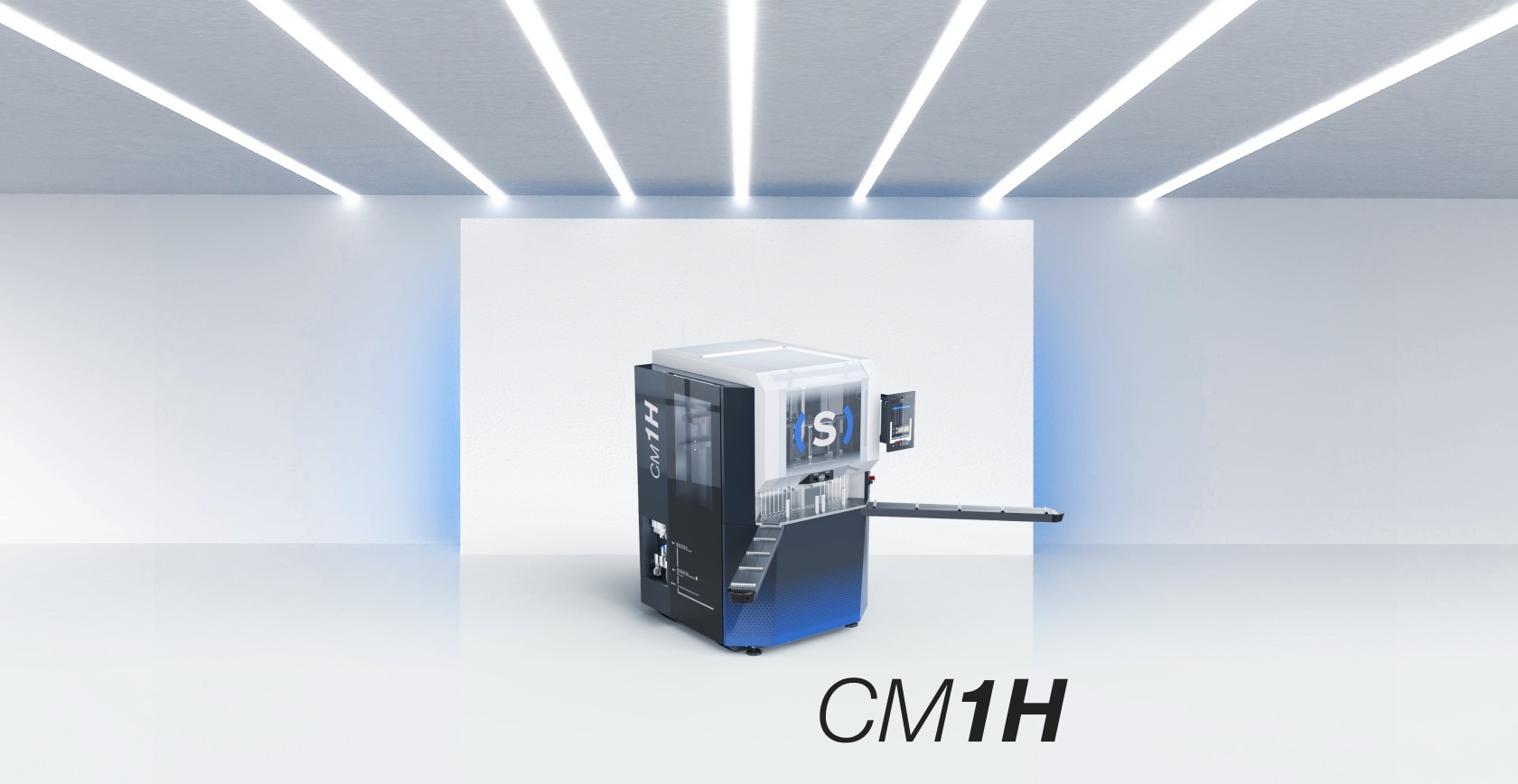

Milling machine for contouring PVC profiles with 45° cutting. The machine, which is integrated into the window production process with Someco SM series machines equipped with Seamless technology counter punches, prepares the profiles for the subsequent phase of zero bead welding. The CM 1H is equipped with three electrospindles, one of which is used for a cut-to-length knife and two of which can be equipped with different tools to allow efficient contouring even of profiles made of different materials. The machine is programmable on board and can import and execute predefined and optimised machining lists.

Technical data arrow_drop_down
AXIS TRAVEL
X AXIS (mm)
565
Y AXIS (mm)
45
Z AXIS (mm)
540
Axes precision (mm)
± 0,1
POSITIONING SPEED
X AXIS (m/min)
50
Y AXIS (m/min)
40
Z AXIS (m/min)
20
AXIS ACCELERATION
X AXIS (m/s²)
10
Y AXIS (m/sec²)
10
Z AXIS (m/sec²)
3,5
DIMENSION AND WEIGHT
Arm length (mm)
1.300
Overall dim. (width x length x height) (mm)
1.260 x 1.350 x 1.860
Overall with arms (width x length) (mm)
2.770 x 2.280
Weight (kg)
750
WORK AREA
Profile height (mm)
50 ÷ 100
Profile width (mm)
50 ÷ 130
Profile length (mm)
350 ÷ 3.500
END-MILLING AND MILLING UNIT
Number of electrospindles
2
Blade motor power (kW)
2
Blade (mm)
Ø 150
Milling unit
1
Electrosplindle power in S1 (kW)
2
Supplied mill (mm)
Ø 5
Mill diameter max. (mm)
Ø 12
Mill rpm max. (rpm)
24.000
TOOL SUPPLY
Ø5 mm flat mill for PVC

Ø150 mm blade for PVC

MACHINE SPECIFICATIONS
Seamless profile preparation

Profile adjustable clamps

Swarfs and chips tray

Operating pressure (bar)
6 - 7
COMMAND AND CONTROL UNIT
Embedded PC
Beckhoff
Communication protocol
EtherCAT
HMI
TS Display HD TFT 15,6'' - “optical bonding”
RJ45 network card

USB port connection

Barcode reader

Differentiated path management (with additional spindle)

SOFTWARE
ContourCAM

Microsoft® Windows® 10 IoT Enterprise 2019

JOB: software for management of the cutting lists and connection to external calculation programs

Included
Available

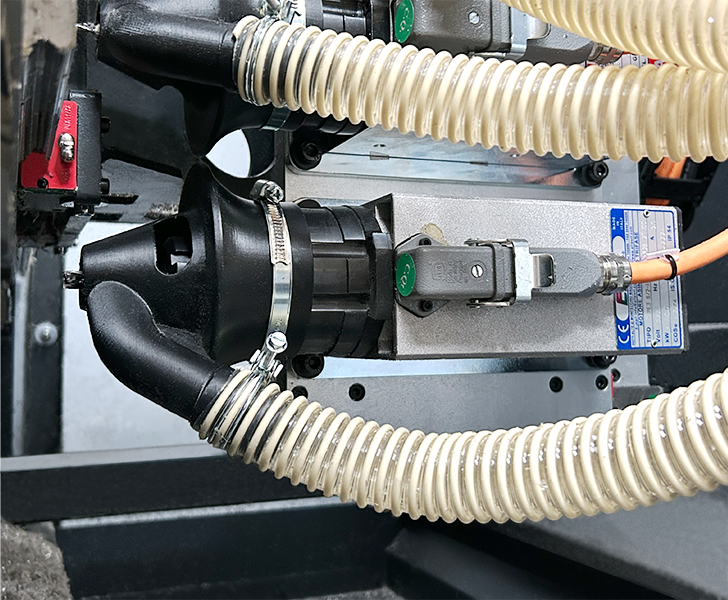

End-milling and milling unit
The milling machine features 2 electrospindles. The first electrospindle, equipped with a Ø 150 mm blade, is used for profile end-milling, while the second, equipped with tools, is used to contour profiles, preparing them for the next zero bead welding phase.
CM 1H End-milling and milling unit Someco

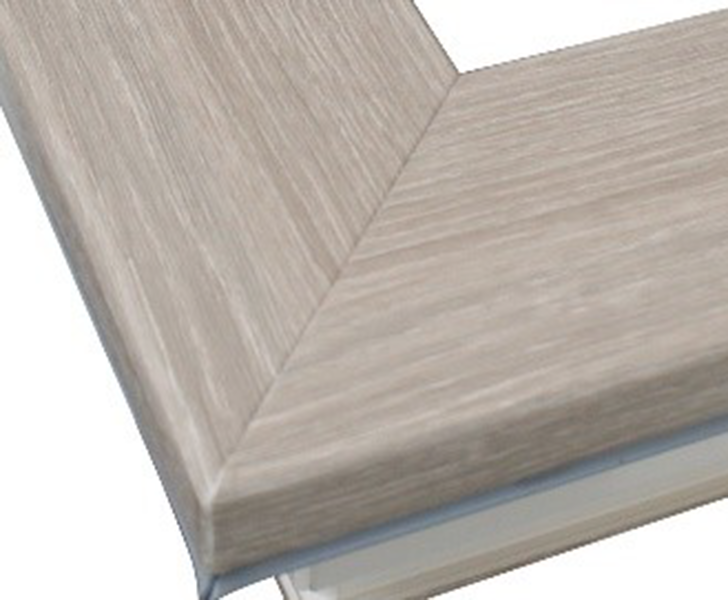

CM 1H Seamless technology Someco
Seamless technology
The machine, which is integrated into the door production process with Someco machines of SM series equipped with Seamless technology, contours the profiles for the subsequent phase of zero bead welding.
Swarf drawer

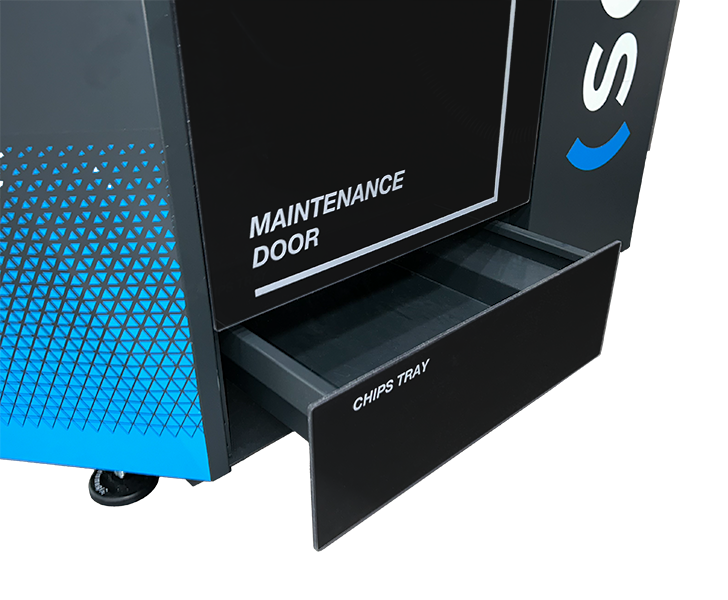

A practical swarf drawer allows efficient collection of the processing debris thus ensuring clean conditions of the machine and work area.
CM 1H Swarf drawer Someco
CM 1H Operator interface Someco
Operator interface

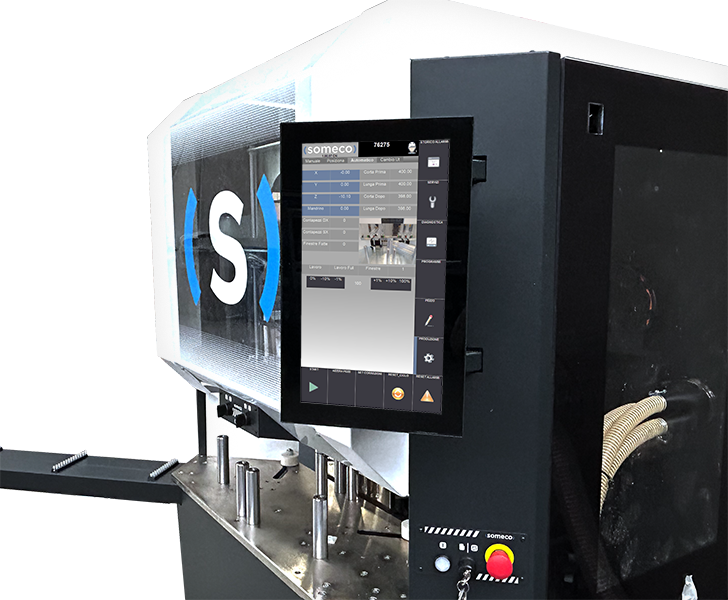

The possibility of rotating the monitor on its vertical axis allows the operator to view the screen from any position. The operator interface features a 15.6” touchscreen optical bonding display with USB connections required to connect the barcode reader and portable devices. It also has an RJ45 connector for connecting the machine to the corporate network.
Additional milling unit (Optional)
The machine can be equipped with an additional electrospindle for efficient contouring even in the case of profiles made of different materials.
CM 1H Additional milling unit Someco
CM 1H Radio barcode reader Someco
Radio barcode reader (Optional)

The radio barcode reader automatically recognises the piece by means of the barcode label. Any workpiece can be loaded into the machine and the machining centre automatically prepares to perform all machining operations by reading the barcode on the label applied, greatly reducing cycle times and with no possibility of error. The radio barcode reader allows to move freely into working area by performing wireless data transmission with maximum practicality for the operator.
