HT
Horizontal table

home / product a to z / H

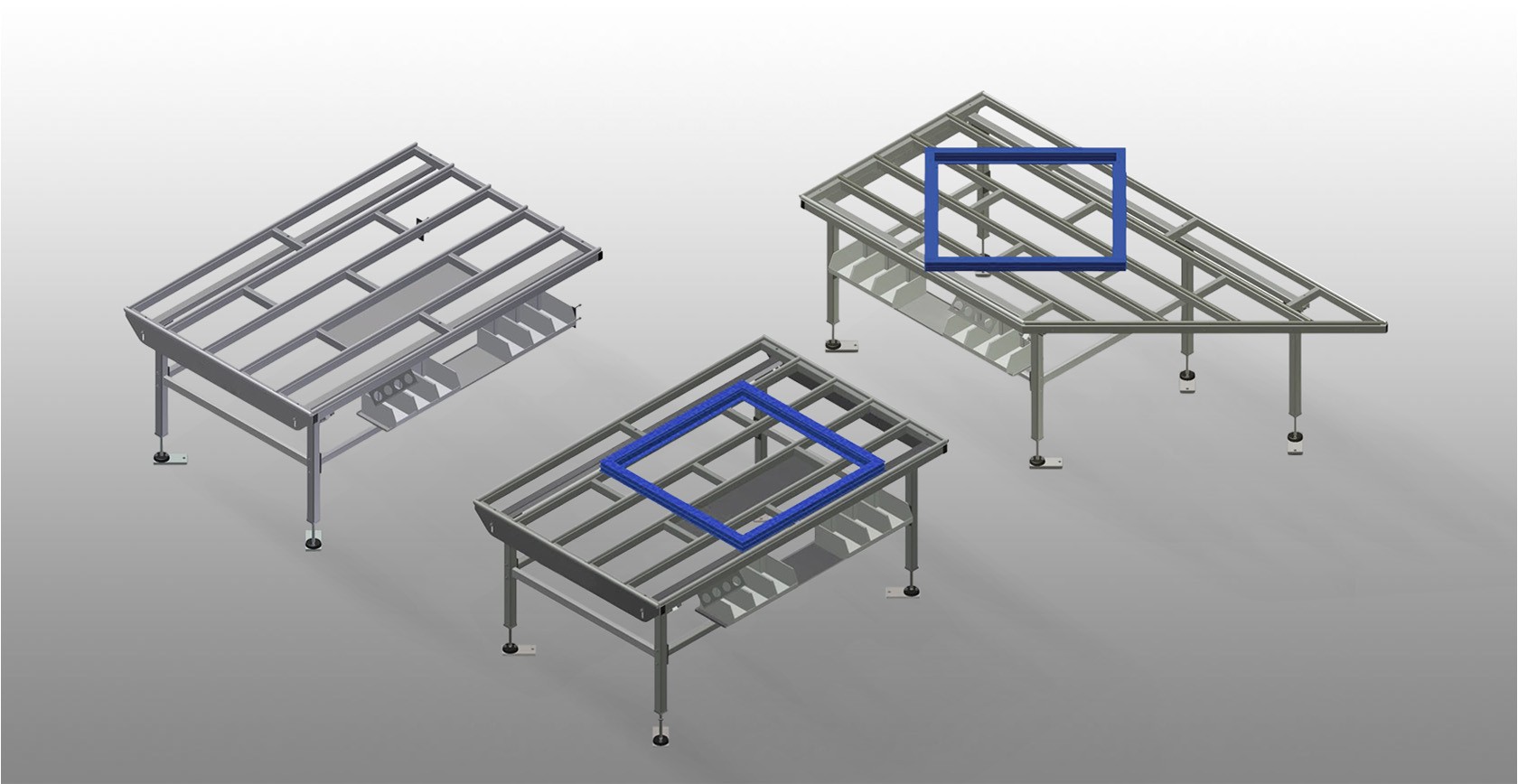

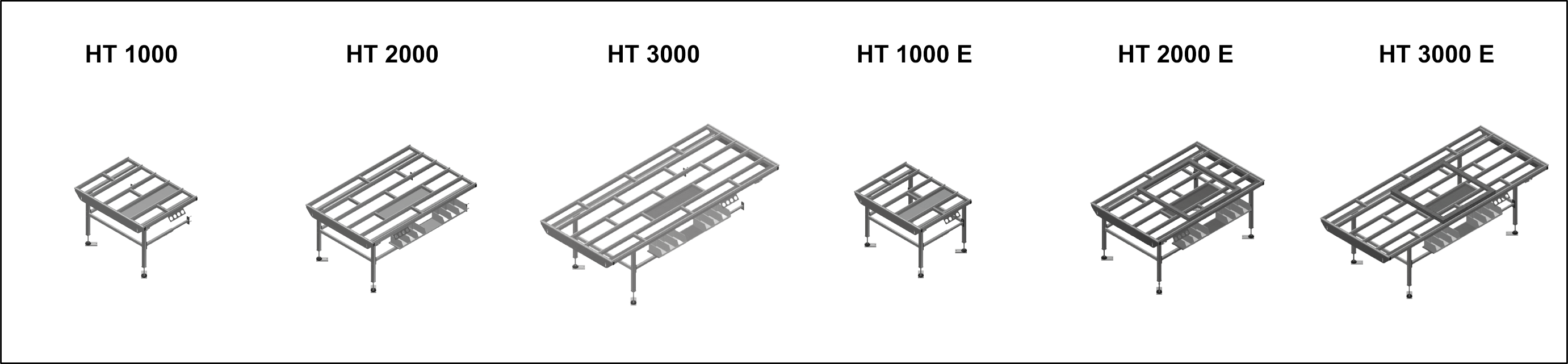

HT 1000 / HT 2000 / HT 3000: Horizontal table for all work tasks on frames and sashes. Stable steel construction. Table supporting surface with plastic slide bars. Storage tray for setting down tools and accessories. Adjustable height. Simple installation with a modular system design.

HT 1000E / HT 2000E / HT 3000E:  Modular work table for a production line (basic module). Stable steel construction. Universal system of work tables for lines with a continuous production flow. Modular system: basic module + additional module. Add-on elements for individualised expansion. Additional modules are easy to install. Versatile work table for all applications: for example, as an individual table in the production flow, as an in-line workstation for assembly work, as a work table for gasket insertion, for the post-processing of special-order production items or as a buffer zone. Table supporting surface with plastic slide bars. Adjustable height. Simple installation with a modular system design.

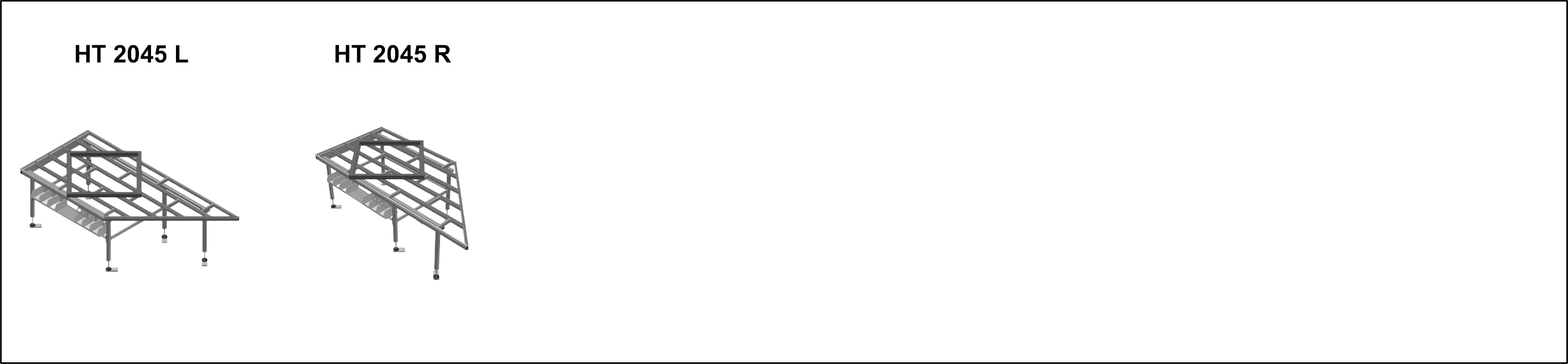

HT 2045L / HT 2045R: Horizontal table for all work tasks on frames and sashes. Stable steel construction. Angled work table; can be used as a pass-through in the production line or as a buffer zone. Assembly table for all work tasks on frames and sashes. Table supporting surface with plastic slide bars. Storage tray for setting down tools and accessories. Adjustable height. Simple installation with a modular system design.

Technical data arrow_drop_down
MODELS

DIMENSION AND WEIGHT

HT 1000 / HT 2000 / HT 3000 / HT 1000 E / HT 2000 E / HT 3000 E / HT 20245 L / HT 2045 R

Length (mm)
1.000 / 2.000 / 3.000 / 1.000 / 2.000 / 3.000 / 2.850 / 2.850
Width (mm)
1.300
Height (mm)
850 ÷ 1.000
Weight (kg)
70 / 90 / 120 / 60 / 80 / 100 / 100 / 100
SUPPORTING SURFACE

HT 1000 / HT 2000 / HT 3000 / HT 1000 E / HT 2000 E / HT 3000 E / HT 20245 L / HT 2045 R

Adjustable height (mm)

Table supporting surface with plastic slide bars

Table brush strip supporting surface

Table felt profile strip supporting surface

Table rubber knob profile

Roller support


HT 1000 / HT 2000 / HT 3000 / HT 20245 L / HT 2045 R

Storage tray for setting down tools and accessories


HT 1000 / HT 2000 / HT 3000 E

Lifting unit


HT 1000 E / HT 2000 E / HT 3000 E

Tool holder

Roller support for fold-up walk-through section

Fold-up walk-through section


HT 2045 R

Parallelogram support for 90°

Table brush strip supporting surface for parallelogram support

Table felt profile strip supporting surface for parallelogram support

Table rubber knob profile for parallelogram support

Roller support for parallelogram support 90°

Triangle support

Table brush strip supporting surface for triangle support

Table felt profile strip supporting surface for triangle support

Table rubber knob profile for triangle support

Roller support surface for triangle support

CHARACTERISTICS

HT 1000 / HT 2000 / HT 3000 / HT 20245 L / HT 2045 R

Tool holder


HT 1000 E / HT 2000 E / HT 3000 E

End strip with knob profile

End rack


HT 2000 / HT 3000 / HT 2000 E / HT 3000 E / HT 20245 L / HT 2045 R

Storage tray


HT 1000 / HT 2000 / HT 3000 / HT 1000 E / HT 2000 E / HT 3000 E / HT 20245 L / HT 2045 R

4-fold compressed air supply

Included
Available
Supporting surfaces HT 1000 / HT 1000 E
Supporting surfaces with plastic slide bars
HT Supporting surfaces HT 1000 / HT 1000 E Someco
HT Storage tray HT 1000 / HT 1000 E Someco
Storage tray HT 1000 / HT 1000 E
Storage tray for setting down tools and accessories

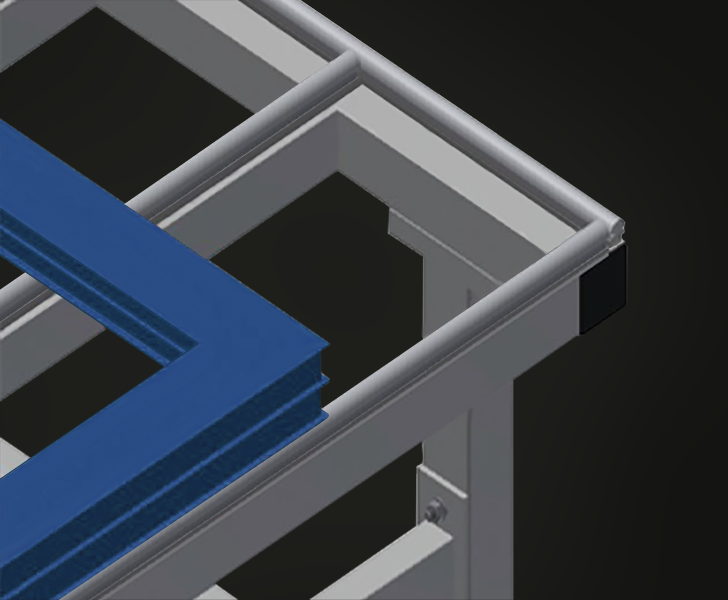

Supporting surfaces HT 2000 / HT 2000 E / HT 3000 / HT 3000 E / HT 2045 L / HT 2045 R
Supporting surfaces with plastic slide bars
HT Supporting surfaces HT 2000 / HT 2000 E / HT 3000 / HT 3000 E / HT 2045 L / HT 2045 R Someco
HT Storage tray HT 2000 / HT 2000 E / HT 3000 / HT 3000 E / HT 2045 L / HT 2045 R Someco
Storage tray HT 2000 / HT 2000 E / HT 3000 / HT 3000 E / HT 2045 L / HT 2045 R
Storage tray for setting down tools and accessories
Height adjustment

Adjustable height; working height can be set to 850 – 1,000 mm by means of adjustable feet

HT Height adjustment Someco
HT Storage area HT 2000 / HT 2000 E / HT 3000 / HT 3000 E / HT 2045 L / HT 2045 R Someco
Storage area HT 2000 / HT 2000 E / HT 3000 / HT 3000 E / HT 2045 L / HT 2045 R (Optional)
Storage area with 6 plastic trays for small accessories, hardware and screws
Brush strip (Optional)

Supporting surfaces with brush strip

HT Brush strip Someco
HT Felt strip Someco
Felt strip (Optional)

Supporting surfaces with felt strip

Rubber strips (Optional)

Supporting surfaces with rubber-knob profile

HT Rubber strips Someco
HT Tool rack Someco
Tool rack (Optional)

Tool rack for pneumatic or electrical tools

4-fold compressed air connection (Optional)

4-fold compressed air connection for connecting compressed-air tools

HT 4-fold compressed air connection Someco
HT Roller support cmpl. Someco
Roller support cmpl. (Optional)

Hard plastic rollers with polyamide coating, on plain bearings, load per roller 60 kg, convenient for transport and handling of PVC elements

Pneumatic lifting unit HT 1000 (Optional)
Lifting unit L = 1.000 mm
HT Pneumatic lifting unit HT 1000 Someco
HT End rack HT 1000 E / HT 2000 E / HT 3000 E Someco
End rack HT 1000 E / HT 2000 E / HT 3000 E (Optional)
End rack for HT
End strip with knob profile HT 1000 E / HT 2000 E / HT 3000 E (Optional)
End strip with knob profile for HT
HT End strip with knob profile HT 1000 E / HT 2000 E / HT 3000 E Someco
HT Pneumatic lifting unit HT 2000 Someco
Pneumatic lifting unit HT 2000 (Optional)
Lifting unit L = 2.000 mm
Fold-up pass-through section HT 2000 E / HT 3000 E (Optional)
Roller support, cmpl., for fold-up passthrough section
HT Fold-up pass-through section HT 2000 E / HT 3000 E Someco
HT Parallelogram support, cmpl., for 90° HT 2045 R Someco
Parallelogram support, cmpl., for 90° HT 2045 R (Optional)
The rhomboid support surface is available in versions with plastic sliding strips, brush strips, felt strips, rubber strips or roller support
Triangle support, cmpl., for in-line use HT 2045 R (Optional)
The triangular support surface is available in versions with plastic sliding strips, brush strips, felt strips, rubber strips or roller support
HT Triangle support, cmpl., for in-line use HT 2045 R Someco
HT Pneumatic lifting unit HT 3000 E Someco
Pneumatic lifting unit HT 3000 E (Optional)
Lifting unit L = 3.000 mm
