KT
Tilting table

home / product a to z / K

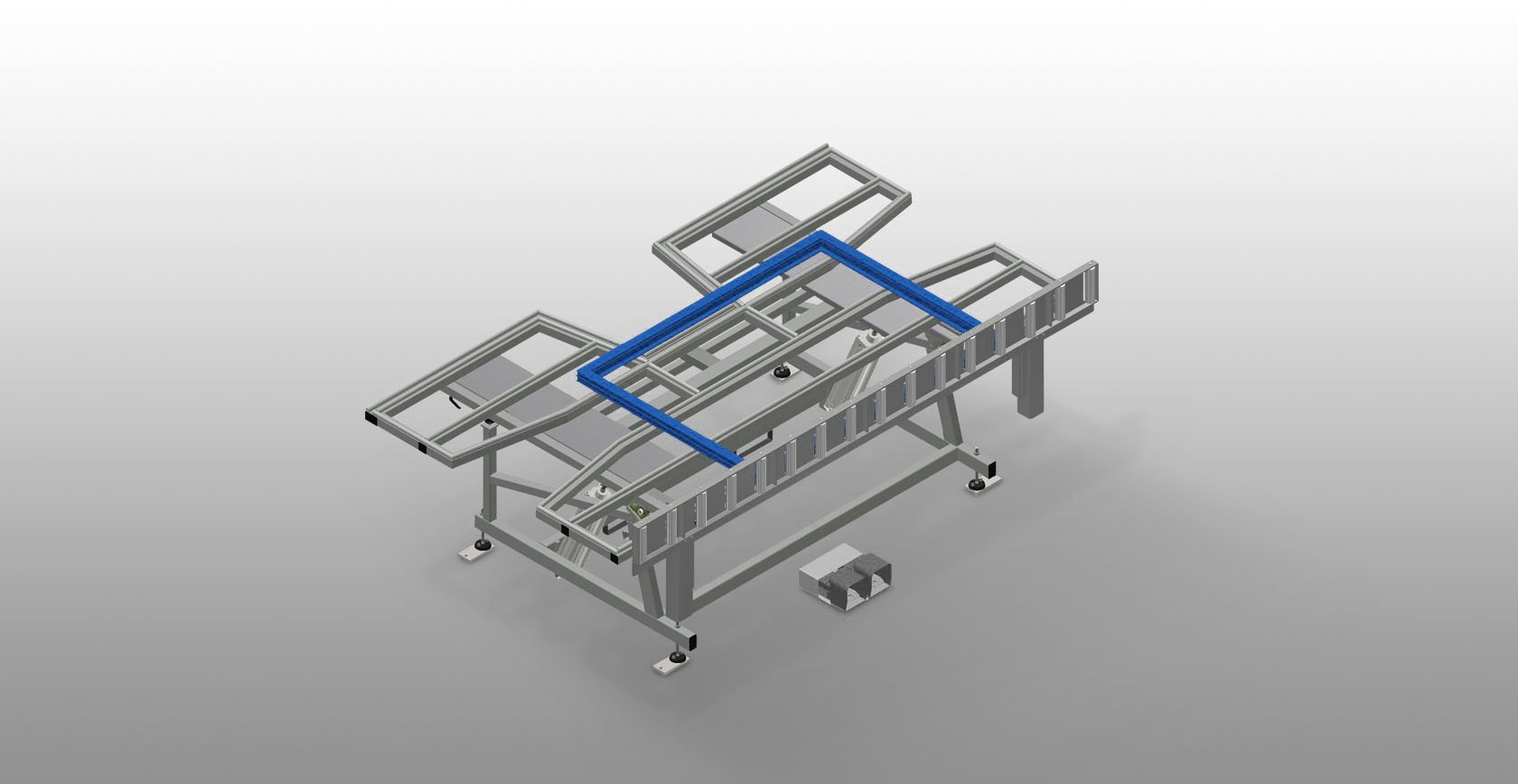

Assembly table for vertical and horizontal assembly. Stable steel construction. Important when switching from vertical to horizontal transportation and vice versa. Ideal for vertical and horizontal assembly. Pneumatic tilting. Table supporting surface with plastic slide bars. Roller support can be lowered pneumatically. 4-fold compressed air supply.

Technical data arrow_drop_down
MODELS

DIMENSION AND WEIGHT

KT 3000 / KT 4000

Length (mm)
3.000 / 4.000
Width (mm)
1.820
Vertical height (mm)
1.900
Roller conveyor width (mm)
200
Weight (kg)
330 / 380
SUPPORTING SURFACE
Pneumatic height adjustment (mm)
500
Pneumatic tilting

Extendable table support

Table brush strip supporting surface

Table felt profile strip supporting surface

Table rubber knob profile

Profile protectors for support rollers

Load capacity (kg)
200
CHARACTERISTICS
4-fold compressed air supply

Mobility unit

Rail 2,0 m left and right

Operating air pressure (bar)
7
Air consumption approx. (l/min)
35
Included
Available
Supporting surfaces

Supporting surfaces with plastic slide bars

KT Supporting surfaces Someco
KT Roller support Someco
Roller support

Roller conveyor can be lowered pneumatically to allow unhindered working in horizontal position; in vertical position, trouble-free onward transport is possible

Foot switch

Control via foot valve. Pneumatic horizontal/vertical tilting

KT Foot switch Someco
KT 4-fold compressed air connection Someco
4-fold compressed air connection

4-fold compressed air connection for connecting compressed-air tools

Profile protectors for support rollers (Optional)

Profile protectors for support rollers 200 mm (Alum./16 x and Alum./21 x). Roller conveyor with protective tubing over the rollers to protect the window element during infeed and outfeed

KT Profile protectors for support rollers Someco
KT Pull-out profile support Someco
Pull-out profile support (Optional)

Pull-out table support at top for KT/KTH 3000 and KT/KTH 4000.The table support can be pulled out 500 mm at the top for high frames

Brush strip (Optional)

Supporting surfaces with brush strip

KT Brush strip Someco
KT Felt strip Someco
Felt strip (Optional)

Supporting surfaces with felt strip

Rubber strips (Optional)

Supporting surfaces with rubber-knob profile

KT Rubber strips Someco
KT Mobility unit Someco
Mobility unit (Optional)

Mobility unit for KT/KTH/MS/VE. Mobility unit with flanged rollers and fixing brake

Rails (Optional)

Rails, 2.0 m, left and right

KT Rails Someco

Other Products

KS 101 Someco
KS

101

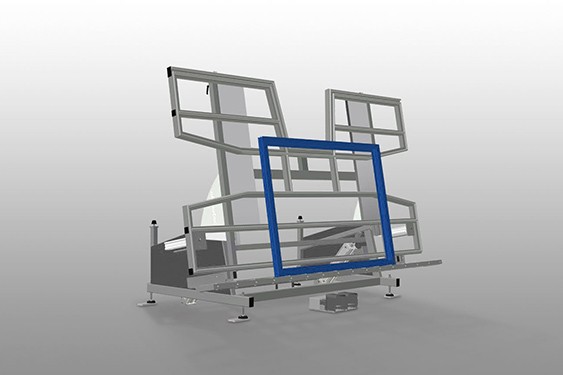

KTH Someco
