GFW

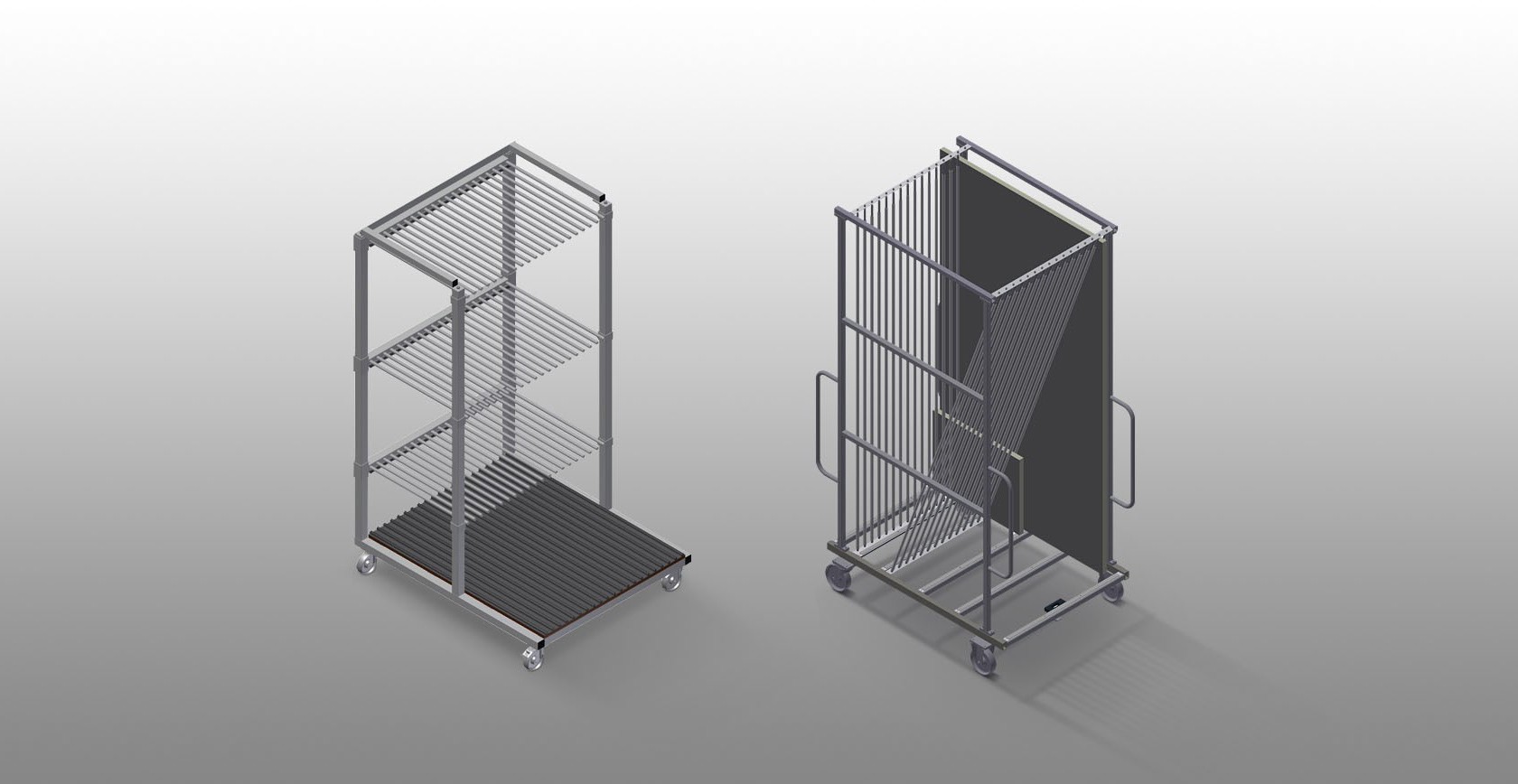

Glass transport trolley

Glass transport trolley ideal for sorting glass and for in-house transportation of sheets of glass. Stable steel construction.

GFW 1200: Hardwood supporting surface with felt. Compartment dividers for 20 sheets of glass. Compartment dividers height is adjustable. Four swivel castors, two of which with locking stop.

GFW 15: Compartment dividers for 15 sheets of glass. Access is possible from both sides. The glass supporting surface has a rubber profile. Compartment divider with plastic protector. Transport handle on both sides for mobility. Two swivel castors and two fixed rollers.

Technical data arrow_drop_down
DIMENSION AND WEIGHT

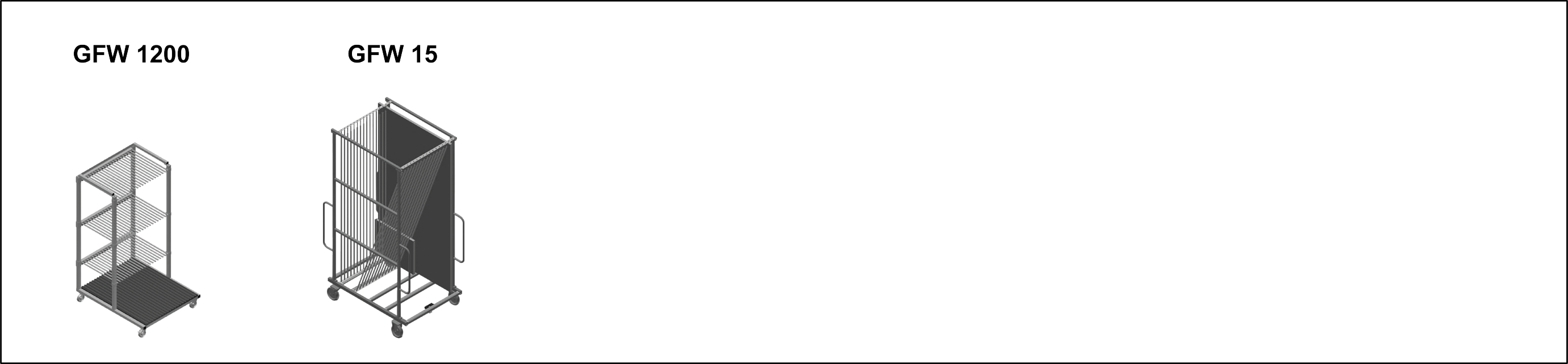

GFW 1200 / GFW 15

Length (mm)
1.200 / 1.810
Width (mm)
1.400 / 1.300
Height (mm)
2.270 / 3.020
Weight (kg)
210 / 255
STORAGE CAPACITY

GFW 1200 / GFW 15

Compartments
20 / 15
Load capacity (kg)
800 / 750

GFW 1200

Clearance (mm)
30

GFW 15

Compartment width (mm)
44
Compartment height (mm)
2.600
CHARACTERISTICS

GFW 1200 / GFW 15

Swivel castors diameter (mm)
120 / 200
Swivel castors
4
Swivel castors with locking stop
2
Included
Available

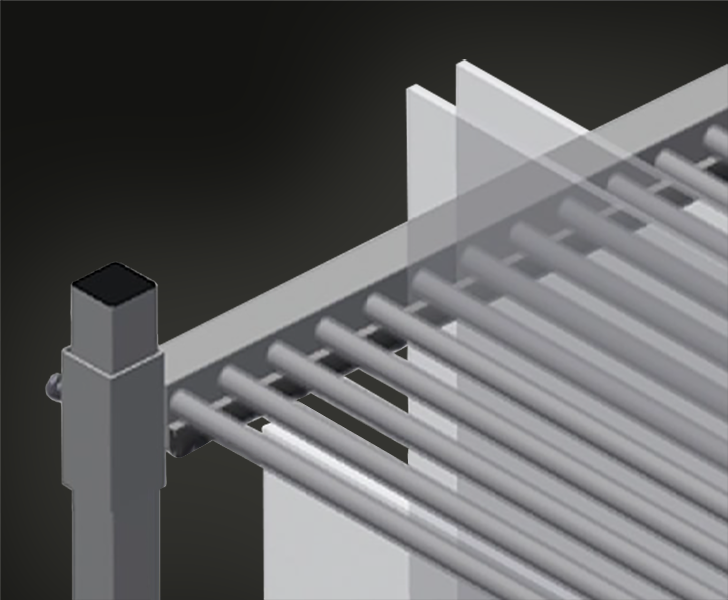

Compartment divider with plastic protection GFW 1200

Compartment divider height is adjustable. All supporting surfaces have a non-slip PVC cladding which protects sheets of glass from damage during storage

GFW Compartment divider with plastic protection GFW 1200 Someco
GFW Compartment divider with plastic protector GFW 15 Someco
Compartment divider with plastic protector GFW 15

All supporting surfaces have a non-slip PVC cladding which protects the sheets of glass from damage during storage

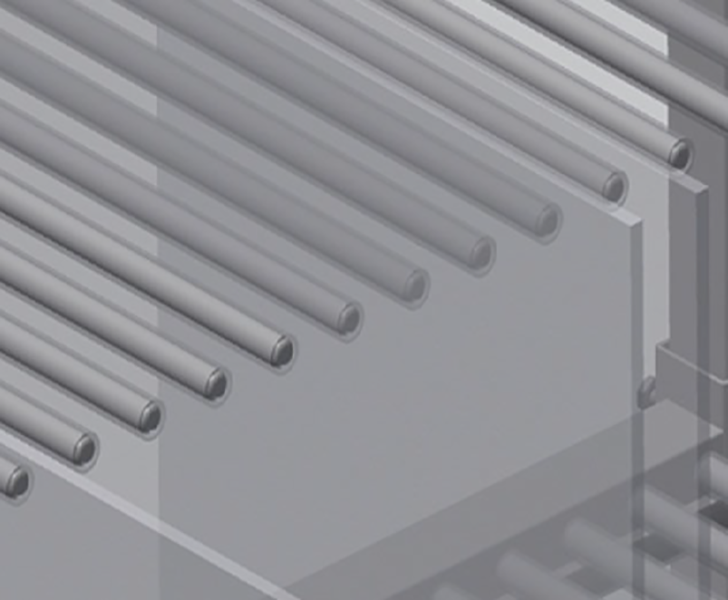

Easy loading and unloading GFW 1200

Well-organised storage provides quick access

GFW Easy loading and unloading GFW 1200 Someco
GFW Back support with rubber strips GFW 1200 Someco

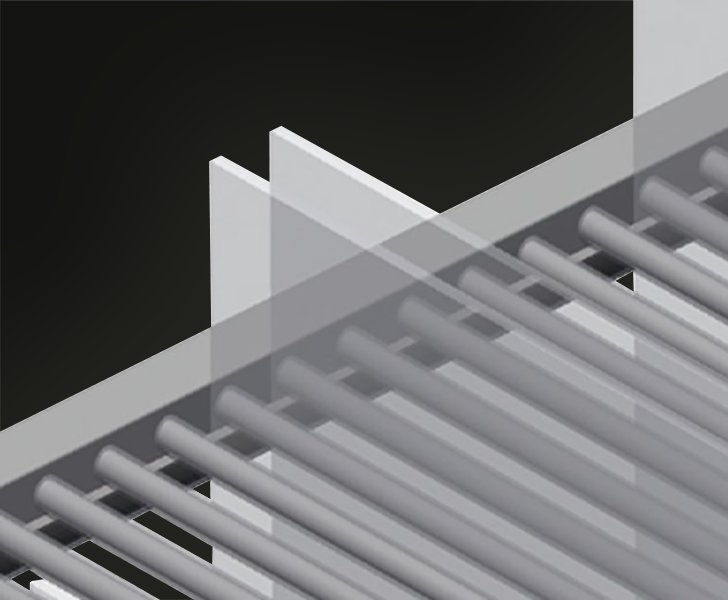

Back support with rubber strips GFW 1200

Rear supporting surfaces equipped with rubber strips protect sheets of glass from damage

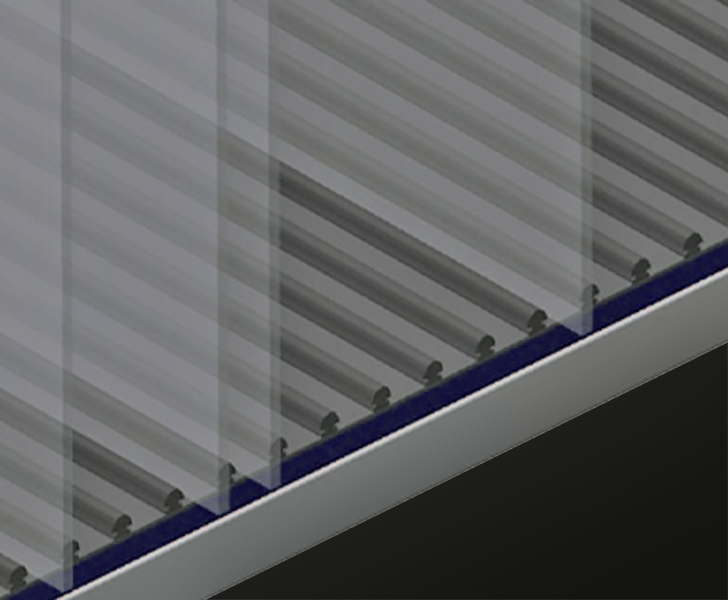

Bottom supporting surface of wood with felt GFW 1200

Lower supporting surface covered with felt. Additional plastic strips on the floor

GFW Bottom supporting surface of wood with felt GFW 1200 Someco
GFW Supports GFW 15 Someco
Supports GFW 15

Lower supporting surfaces equipped with rubber profile to protect the sheets of glass from damage

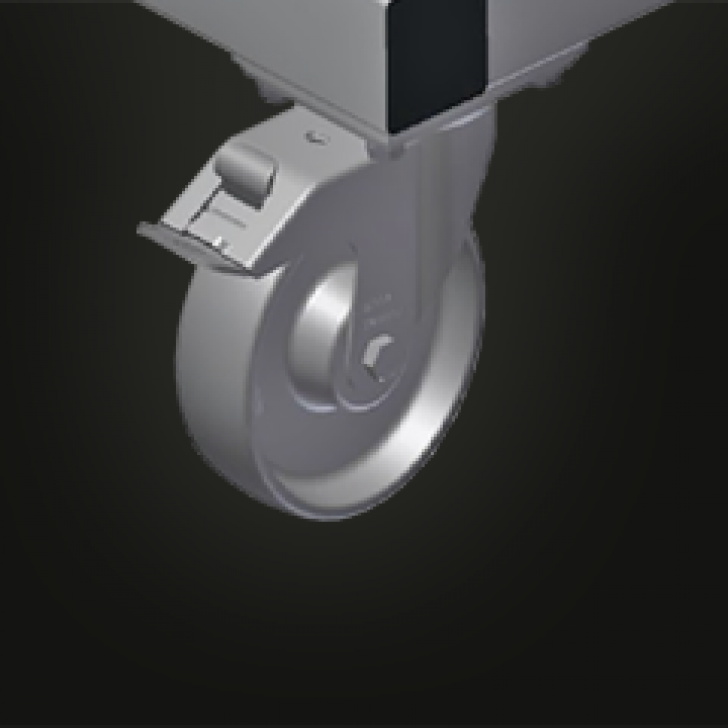

Casters GFW 1200

Four casters, two of which have a fixing brake, provide a high degree of mobility and easy, safe handling

GFW Casters GFW 1200 Someco
GFW Castors, cmpl. GFW 15 Someco
Castors, cmpl. GFW 15

Two castors and two fixed rollers provide mobility in all directions. Roller diameter 200 mm
