GLS  192 P

V-cutting saw equipped with two blades for 45° cuts. Equipped with two vertical material clamping units as standard. Equipped with exhaust connectors for connection to an extraction system. Pulsed coolant system. Automatic cutting operation with foot switch control. Options: profile clamping system for special glazing beads; extraction system for residual pieces; roller conveyors; length stop and measuring systems; profile support blocks; blades; high performance cutting fluid; glazing bead measuring systems.

Technical data arrow_drop_down
WORK AREA
Maximum cutting width (mm)
130
Maximum cutting height (mm)
44,5
Minimum profile length (mm)
240
DIMENSION AND WEIGHT
Length (mm)
460
Depth (mm)
1.040
Height (mm)
1.180
Weight (kg)
140
MOTORS
Three-phase asynchronous motors
2
Motors power (kW)
2 x 0,9
FUNCTIONS
Vertical vices
2
Additional clamps (optional)
2
Simultaneous cutting of 2 glazing beads

Simultaneous cutting of 4 glazing beads

Automatic cutting sequence

Operation by foot switch

Integrated suction socket for connection of a suction device

CUTTING DIAGRAM
TOOLS
Blades type
HM
Blade diameter (mm)
200
Blade diameter (45° beveled) (mm)
98
Blade bore (mm)
32
Blade speed - motor 50 Hz (r.p.m.)
2.800
Blade speed - motor 60 Hz (r.p.m.)
3.400
EQUIPMENT
Vertical clamping device

Glazing bead counterblock

Glass panel simulation

Manual measuring systems

Roller conveyor

Connecting plate roller conveyor / measuring system

Extraction socket DN100

Swarf exhauster

ELECTRICAL CONNECTION
Connected load (without swarf exhauster) (kW)
1,9
Maximum backup fuse 240V 60Hz (without swarf exhauster) (A)
15
Maximum backup fuse 400V 50Hz (without swarf exhauster) (A)
10
PNEUMATIC CONNECTION
Pressure (bar)
7
Hose connection
DN10
Compressed air consumption (7 bar) per working cycle (without spraying) (l)
20
Included
Available
Snap-in interchangeable counterblocks
The counterblocks are very easy to change: a snap-in mechanism enables them to be changed without having to use any other tools.
GLS 192 P Snap-in interchangeable counterblocks Someco
GLS 192 P Workpiece clamping system Someco
Workpiece clamping system

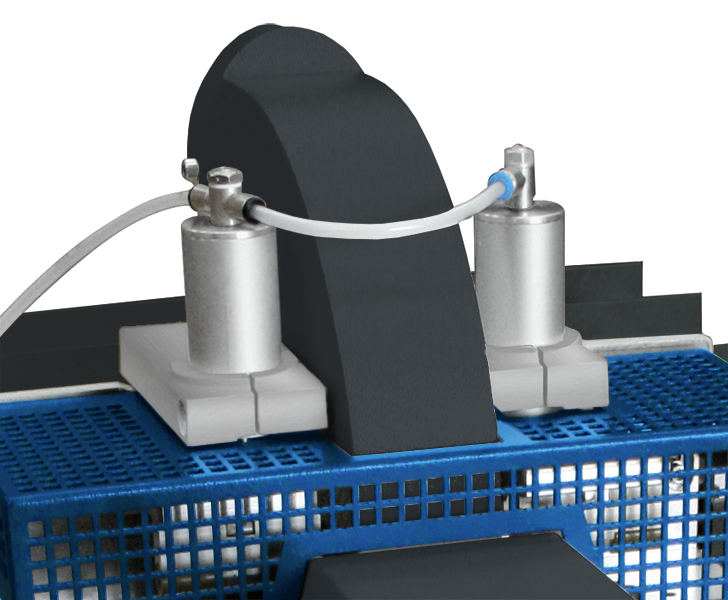

The workpiece is clamped from above by means of clamps; thin profiles can also be clamped by GLS 192 from the bottom to avoid the risk of deformation and to ensure a greater cutting precision.
Cutting module

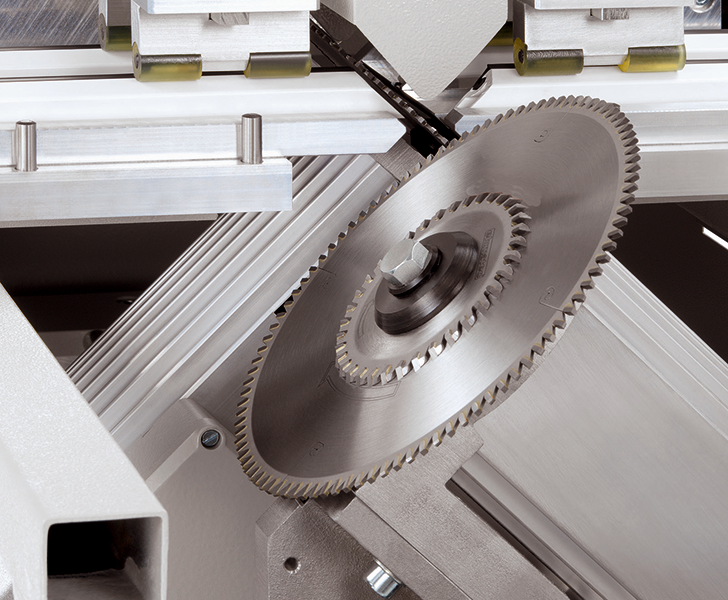

Glass stopper cuts are made by 2 cutting units, one set at 45° and the other at 135°. Each cutting unit is made up of 2 blades: the first actually cuts the glass stopper and the second, which has a smaller diameter, makes the cut in the glass stopper that is to house the gasket. This machine configuration enables 2/4 profiles to be inserted in the counterblocks so that 2/4 glass stoppers can be cut at the same time.
GLS 192 P Cutting module Someco
GLS 192 P Connection to roller conveyors and stop gauges Someco
Connection to roller conveyors and stop gauges

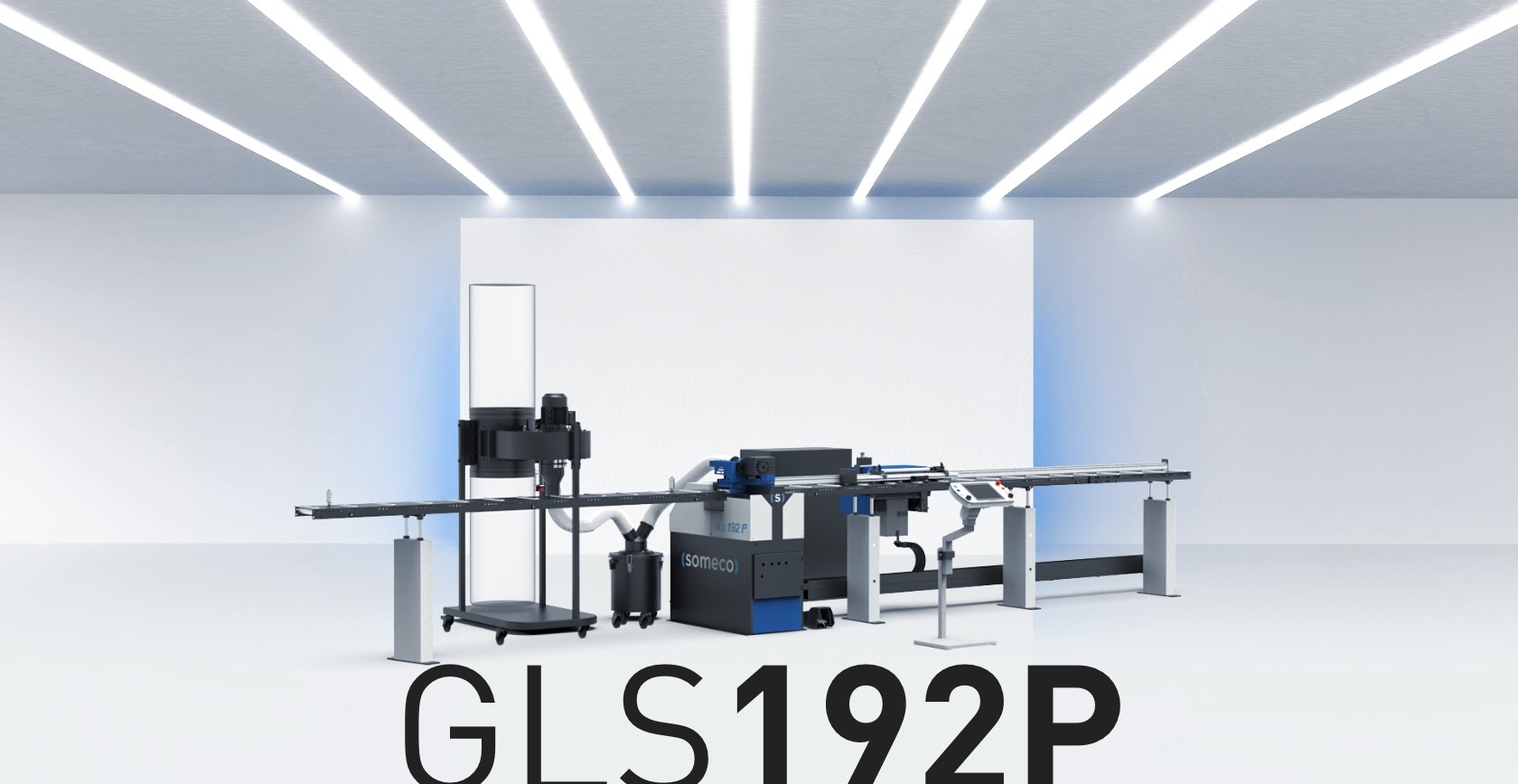

Beside the cutting area there is a steel support for connecting the machine to an infeed roller conveyor or a stop gauge that ensures high positioning precision while cutting the glass stopper.
