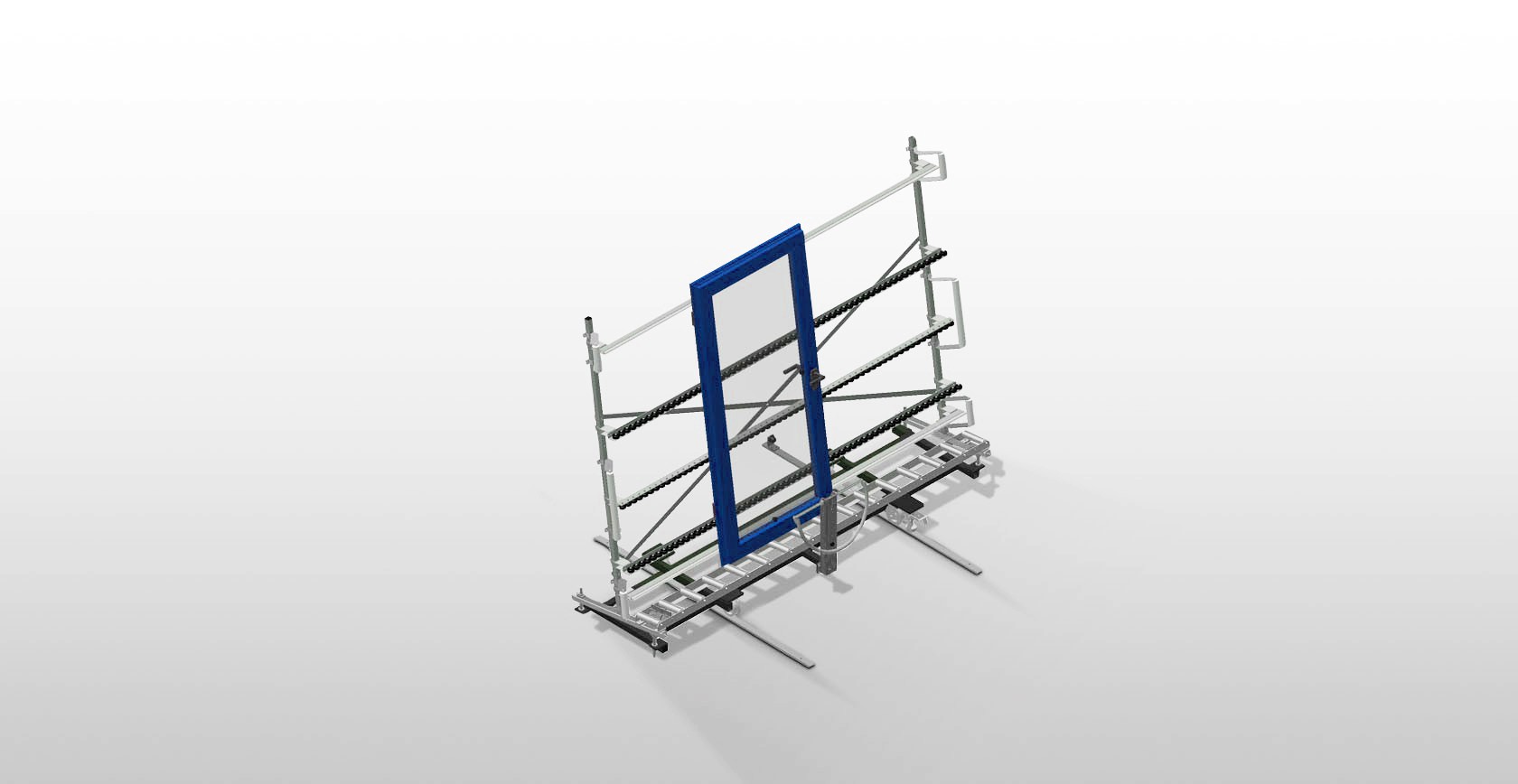

VR  3000 DF
Vertical roller conveyor with mobility and rotation mechanism

Stable steel construction. Vertical roller conveyor for smooth transportation to the next work task as well as for transportation to storage and sorting of the finished windows. Easy handling of window elements. Every roller conveyor unit is 3.000 mm long. Plastic slide bars top and bottom. Three mini-roller conveyors with rubber rollers, diameter 50 mm. Basic unit with end rack. Vertical roller conveyor on rails with flanged rollers, mobile. Roller conveyor can be rotated 360°. Options: rail, 2.0 m, left and right; end stop for VR; lead-in roller for VR; profile protectors for support rollers (Alum.).
Technical data arrow_drop_down
CHARACTERISTICS
Length (mm)
3.000
Width (mm)
1.000
Height (mm)
2.490
Support roller width (mm)
200
Support height (mm)
2.100
Load capacity (kg)
200
Weight (kg)
180
Mini-roller conveyors with rubber rollers, diameter 50 mm
3
Additional mini-roller conveyors with rubber rollers top/bottom

Basic unit with end rack

Vertical roller conveyor on rails with flanged rollers mobile

Roller conveyor can be rotated 360°

Lead-in rollers L= 500 mm (pair)

Lead-in rollers L= 250 mm (pair)

Profile protectors for L= 200 mm

Rail 2,0 m left and right

End stop L= 200 mm

Included
Available
Support rollers

Rollers throughout, support roller width 200 mm

VR 3000 DF Support rollers Someco
VR 3000 DF Mini-roller conveyor Someco
Mini-roller conveyor

Three mini-roller conveyors with rubber rollers, diameter 50 mm

Back support

Rear back support with plastic slide bars, top and bottom

VR 3000 DF Back support Someco
VR 3000 DF Grip Someco
Grip

Grip makes pushing the roller conveyor on the rails easy

Mobility unit

Mobility unit with flanged rollers and fixing brake

VR 3000 DF Mobility unit Someco
VR 3000 DF End stop Someco
End stop (Optional)

End stop L = 200 mm

Lead-in rollers (Optional)

Protective rollers for beginning or end of roller conveyor:

- L = 500 mm (pair)

- L = 250 mm (pair)

VR 3000 DF Lead-in rollers Someco
VR 3000 DF Profile protectors Someco
Profile protectors (Optional)

Profile protectors for support rollers 200 mm (Alum./11 x and Alum./16 x). Support rollers covered with protective tubing

Additional mini-roller conveyors (Optional)

Additional mini-roller conveyors with rubber rollers top/bottom

VR 3000 DF Additional mini-roller conveyors Someco
VR 3000 DF Rails Someco
Rails (Optional)

Rails, 2.0 m, left and right
