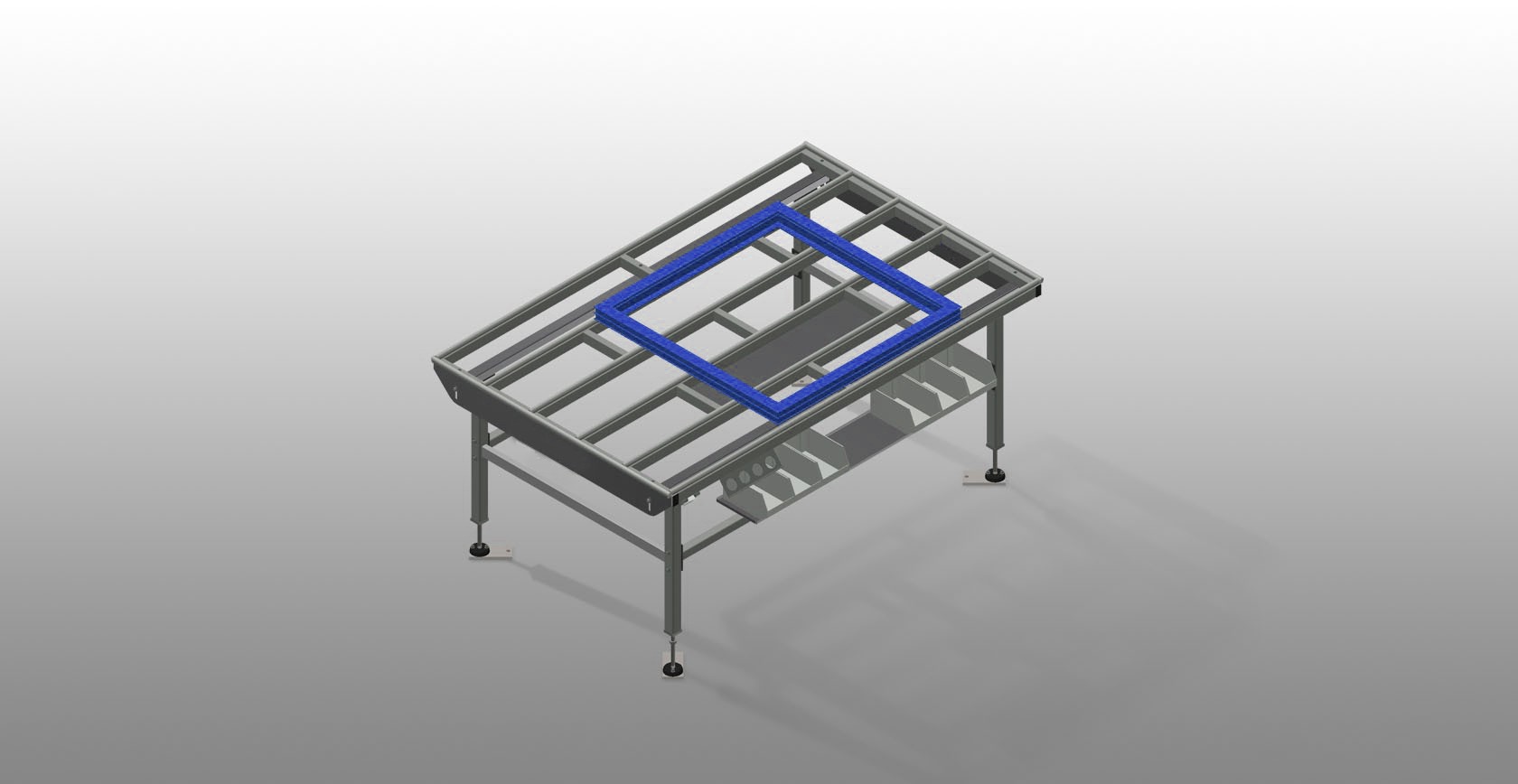

HT  2000
Horizontal table – individual table

Horizontal table for all work tasks on frames and sashes. Stable steel construction. Table supporting surface with plastic slide bars. Storage tray for setting down tools and accessories. Adjustable height. Simple installation with a modular system design. Options: also available with brush strips on request; also available with felt strips on request (for wooden elements); also available with rubber strips on request (for aluminium elements); roller support; tool rack; 4-fold compressed air supply; storage area with six plastic trays.
Technical data arrow_drop_down
CHARACTERISTICS
Length (mm)
2.000
Width (mm)
1.300
Height (mm)
850 ÷ 1.000
Weight (kg)
90
Storage tray for setting down tools and accessories

Adjustable height

Table supporting surface with plastic slide bars

Table brush strip supporting surface

Table felt profile strip supporting surface

Table rubber knob profile

Roller support

Tool holder

4-fold compressed air supply

Storage tray

Lifting unit

Included
Available
Supporting surfaces

Supporting surfaces with plastic slide bars

HT 2000 Supporting surfaces Someco
HT 2000 Storage tray Someco
Storage tray

Storage tray for setting down tools and accessories

Height adjustment

Adjustable height; working height can be set to 850 – 1,000 mm by means of adjustable feet

HT 2000 Height adjustment Someco
HT 2000 Storage area Someco
Storage area (Optional)

Storage area with 6 plastic trays for small accessories, hardware and screws

Brush strip (Optional)

Supporting surfaces with brush strip

HT 2000 Brush strip Someco
HT 2000 Felt strip Someco
Felt strip (Optional)

Supporting surfaces with felt strip

Rubber strips (Optional)

Supporting surfaces with rubber-knob profile

HT 2000 Rubber strips Someco
HT 2000 Tool rack Someco
Tool rack (Optional)

Tool rack for pneumatic or electrical tools

4-fold compressed air connection (Optional)

4-fold compressed air connection for connecting compressed-air tools

HT 2000 4-fold compressed air connection Someco
HT 2000 Roller support cmpl. Someco

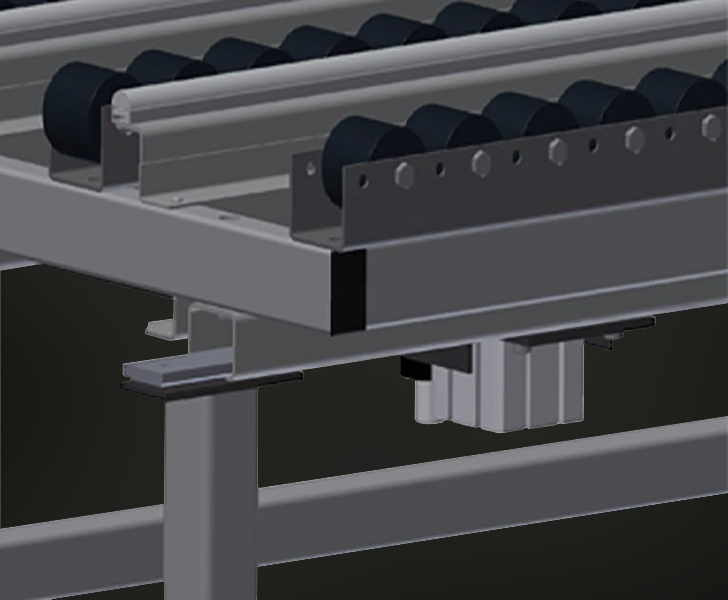

Roller support cmpl. (Optional)

Hard plastic rollers with polyamide coating, on plain bearings, load per roller 60 kg, convenient for transport and handling of PVC elements

Pneumatic lifting unit (Optional)

Lifting unit L = 2.000 mm

HT 2000 Pneumatic lifting unit Someco
