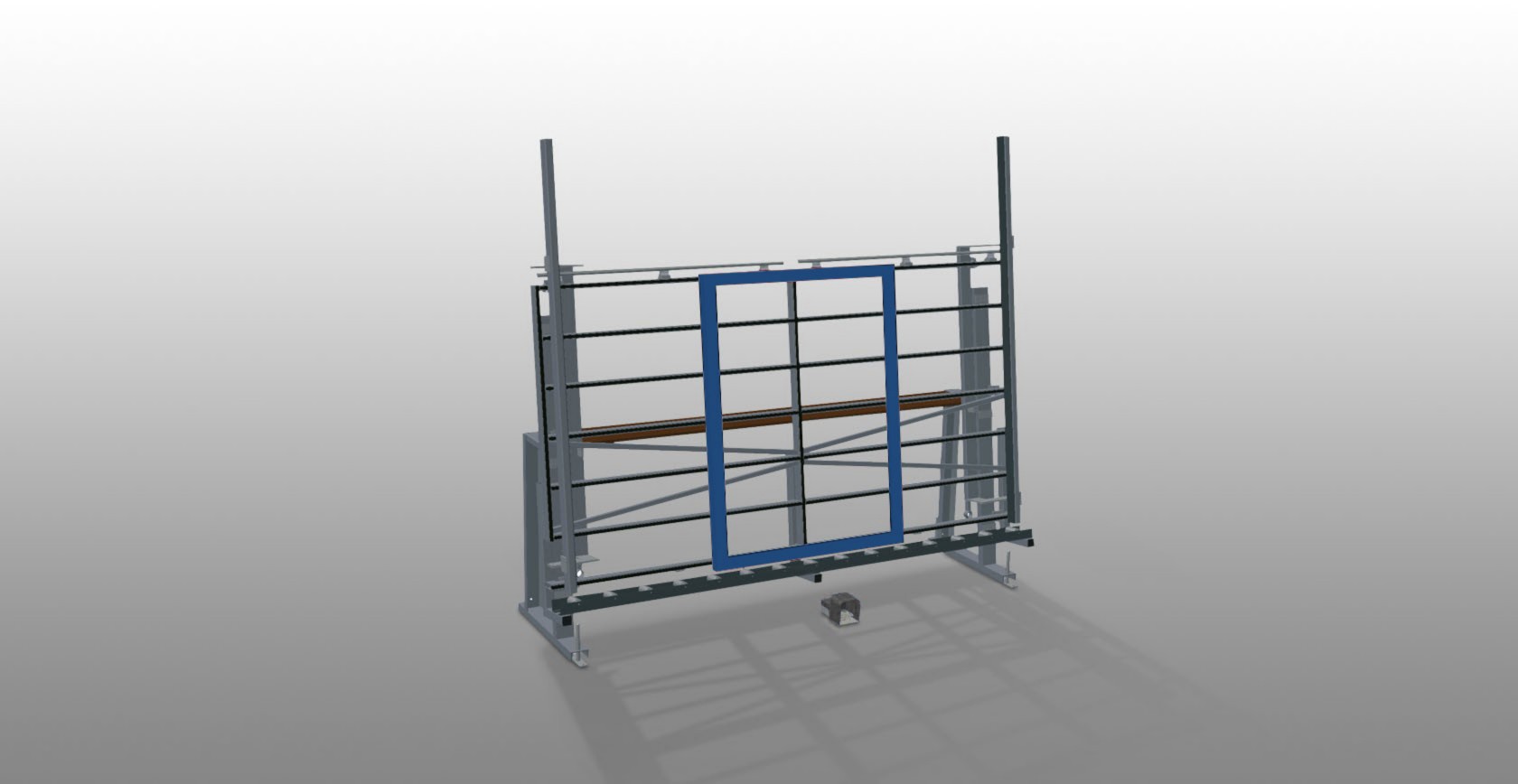

VE  3000/60
Inspection and glazing units

Inspection and glazing unit for glazing and final inspection. Quick and precise assembly of windows, doors and elements. Stable steel construction. Precision ensured through parallel clamping bar pressing technique with manually operated pressing bars. Easy operation by means of foot switch. Pneumatic centring, storage area for tools and 4-fold compressed air supply.

Technical data arrow_drop_down
CHARACTERISTICS
Length (mm)
3.050
Width (mm)
900
Height (mm)
2.600
Maximum clamping width (mm)
2.800
Minimum clamping width (mm)
390
Clamping bar height (mm)
2.300
Clamping bar width (mm)
100
Lower roller conveyor width (mm)
120
Weight (kg)
370
Load capacity (kg)
200
4-fold compressed air supply

Operating air pressure (bar)
7
Air consumption approx. (l/min.)
35
Pneumatic centring

Storage area for tools

Adjustable height

Included
Available

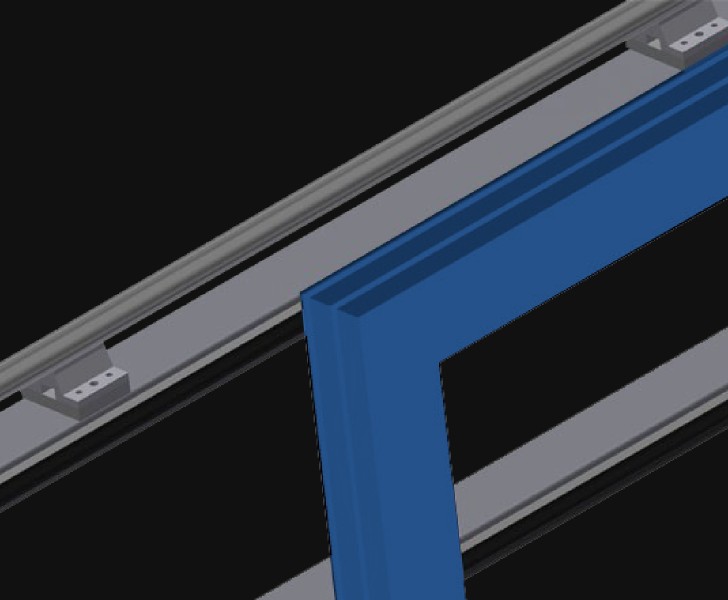

Pressing bar

Pneumatic centring. Precision ensured through parallel clamping bar pressing technique

VE 3000/60 Pressing bar Someco
VE 3000/60 Back support Someco
Back support

Rear back support with plastic slide bars

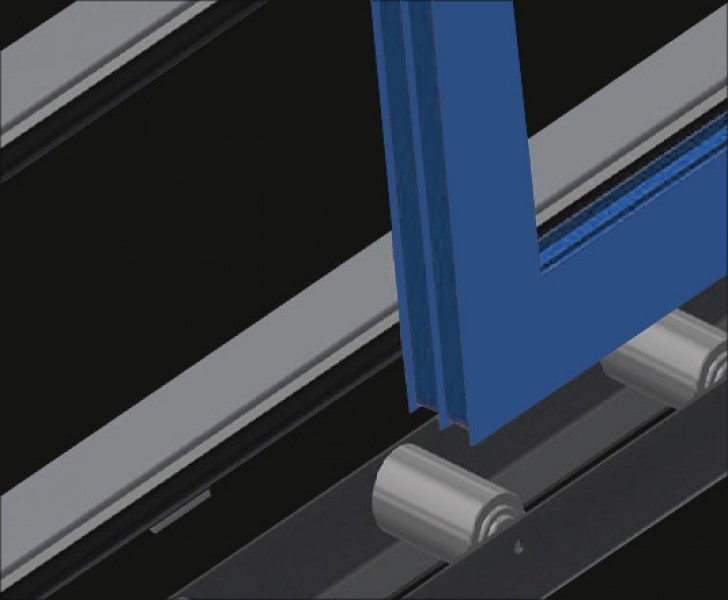

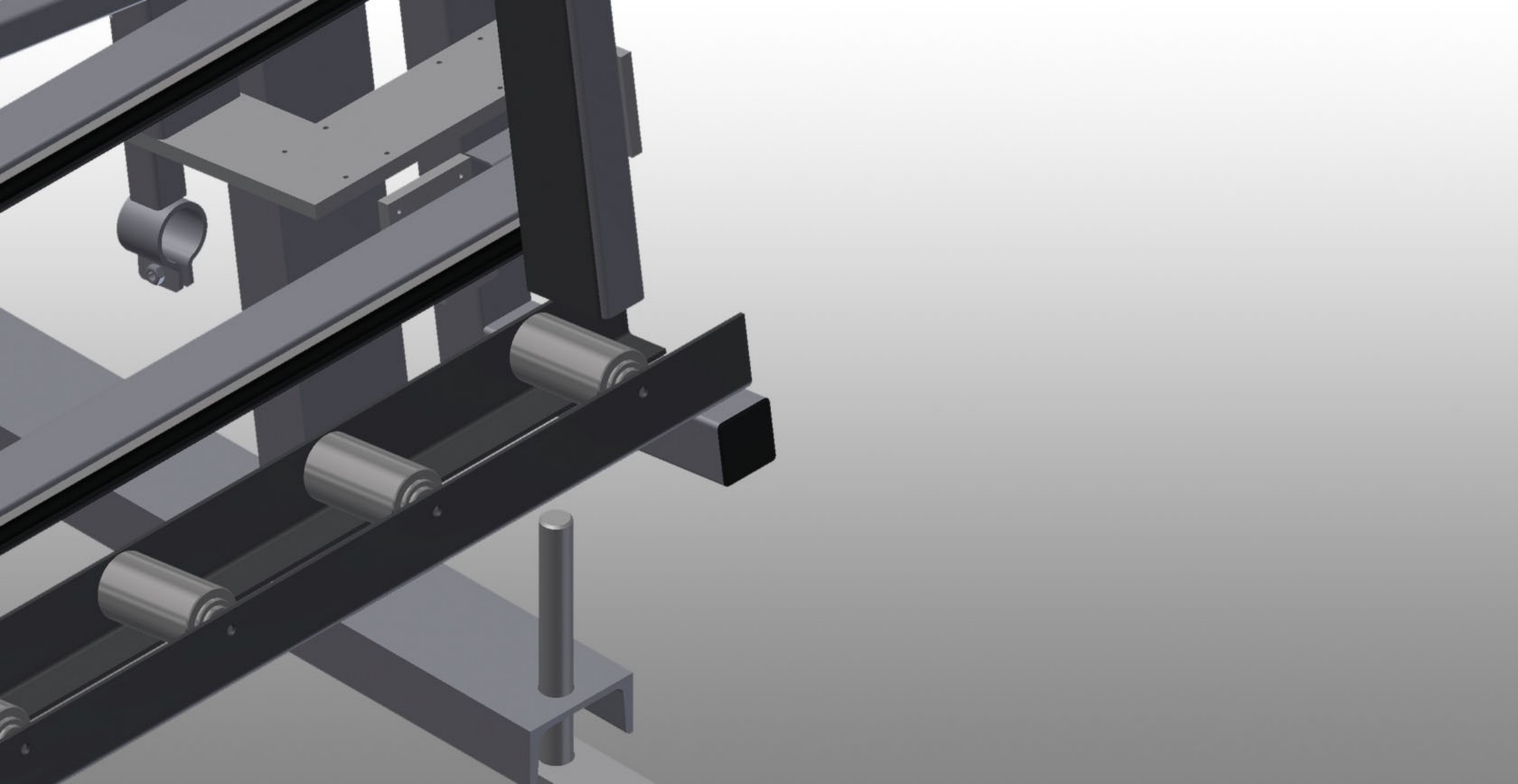

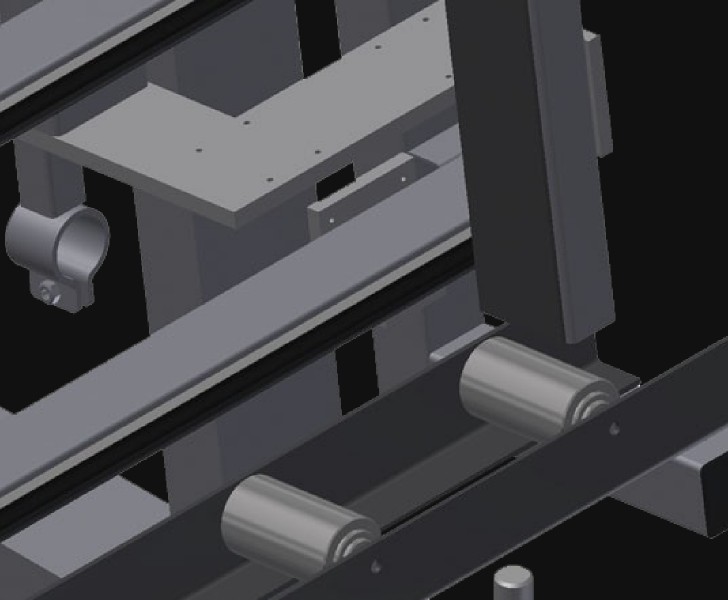

Roller support

Lower roller conveyor with support roller, L = 120 mm

VE 3000/60 Roller support Someco
VE 3000/60 Foot switch Someco

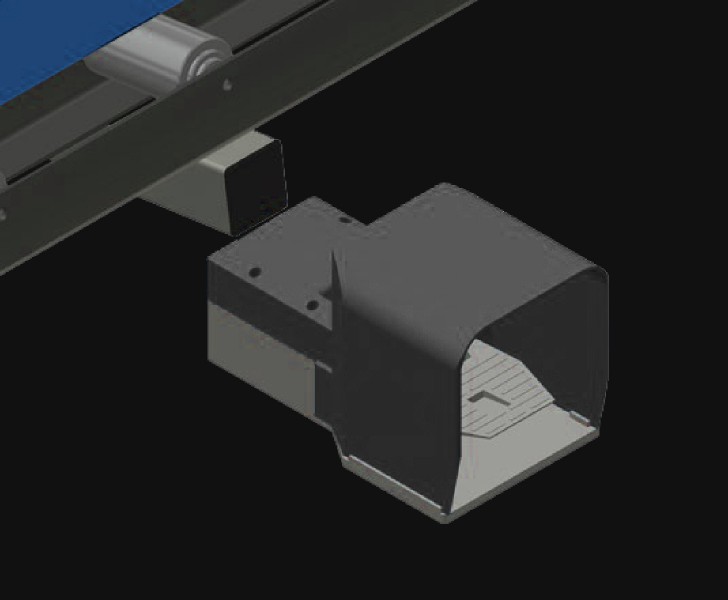

Foot switch

All functions are controlled via foot valves

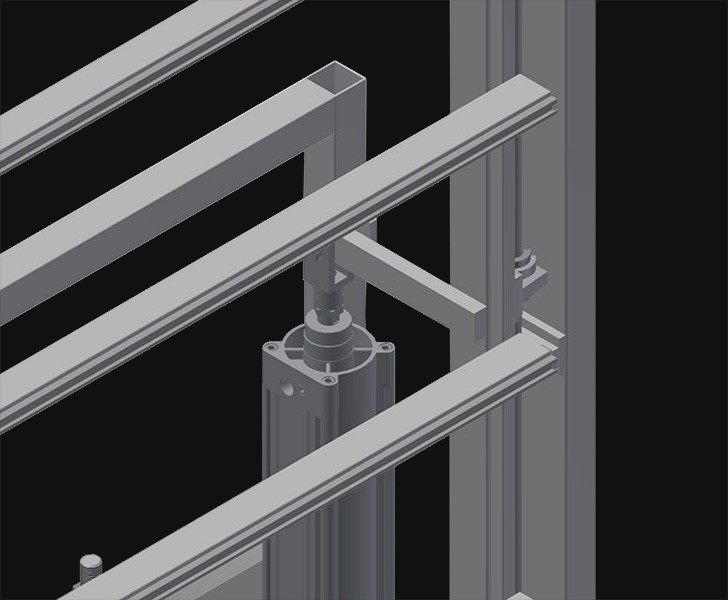

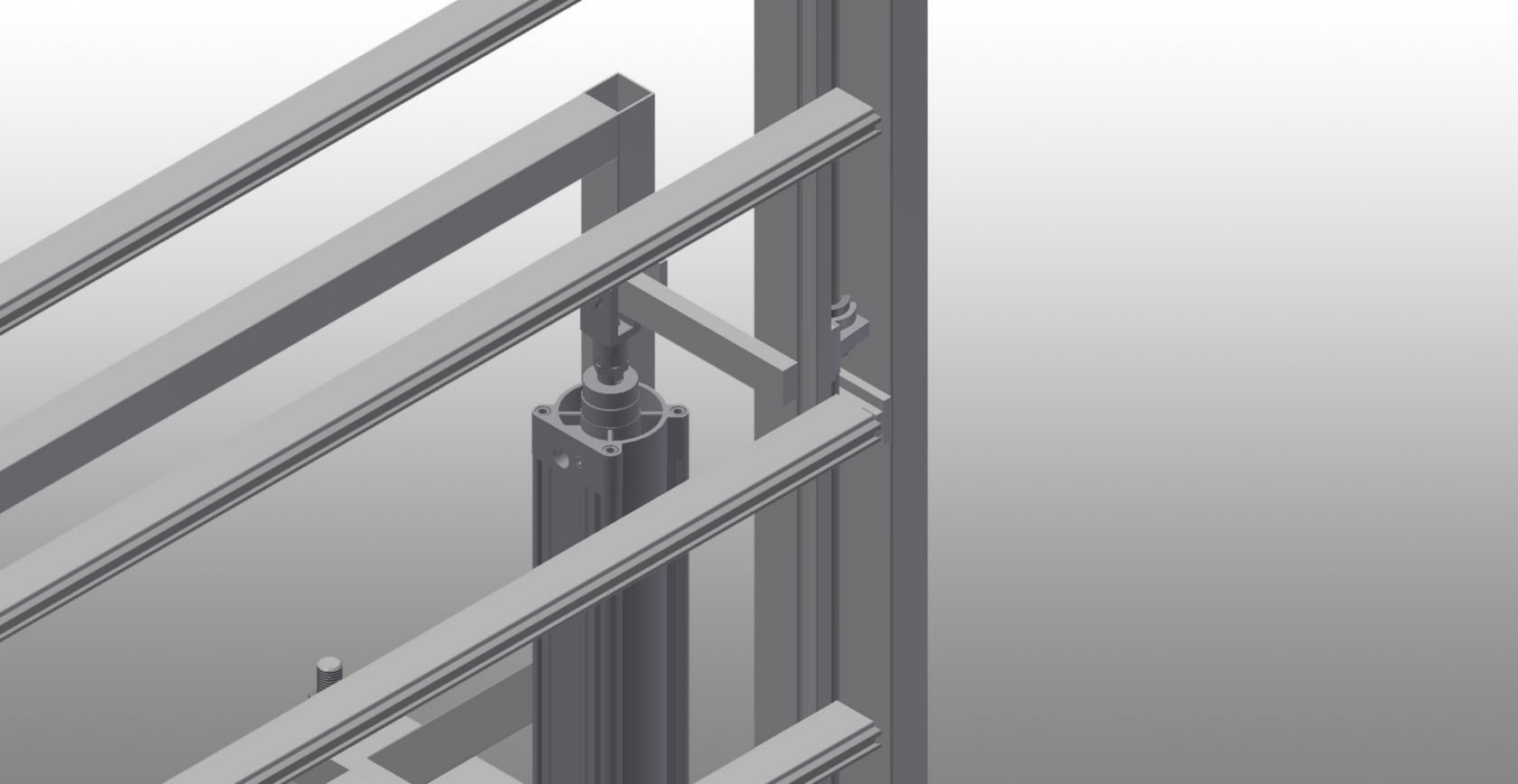

Height adjustment (Optional)

Height continuously adjustable, L = 500 mm

VE 3000/60 Height adjustment Someco
