MTA  3000

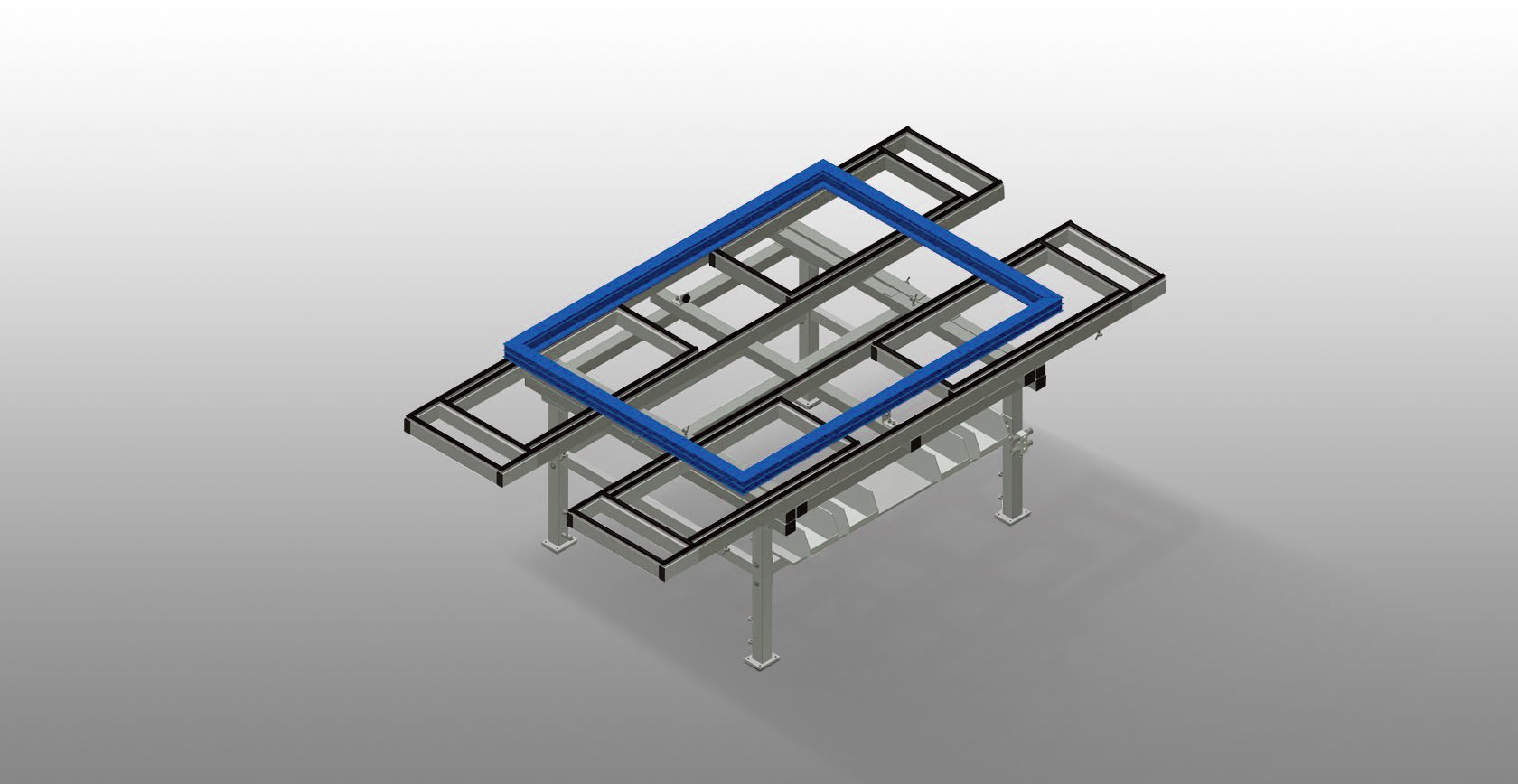

Assembly table

Assembly table expandable for all work tasks on frames and sashes. Stable steel construction. Universal assembly table. Pull-outs on four sides. Ideal for large elements. Adjustable height. Table supporting surface with plastic slide bars. Practical storage area under the table surface. Four PVC containers for small accessories, hardware and screws. 4-fold compressed air supply. Simple installation with a modular system design. Options: also available with brush strips on request; also available with felt strips on request (for wooden profiles); also available with rubber strips on request (for aluminium profiles); castors (cmpl.).
Technical data arrow_drop_down
Length (mm)
2.400 ÷ 4.000
Width (mm)
1.300 ÷ 1.900
Height (mm)
850 ÷ 1.000
Weight (kg)
Adjustable height
Storage area under the table surface
PVC containers
4-fold compressed air supply
Table brush strip supporting surface
Table felt profile strip supporting surface
Table rubber knob profile
Castor wheel Stand Alone (2 castors + 2 fixed)

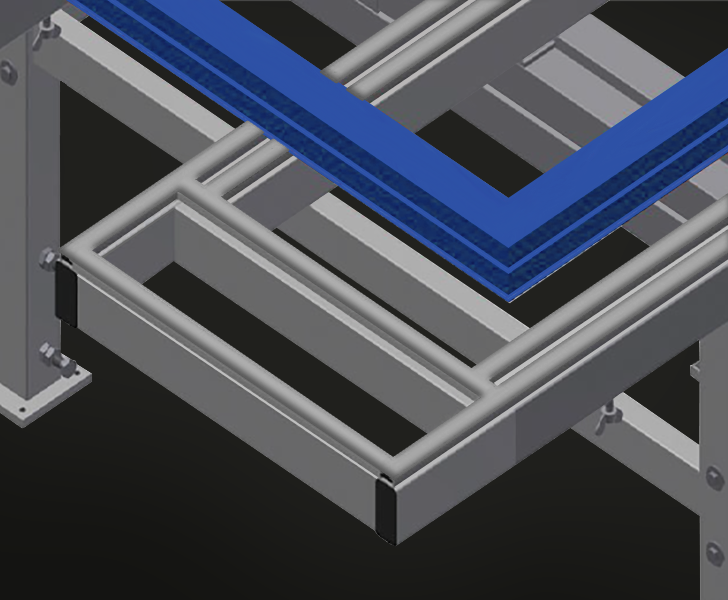

Supporting surfaces

Supporting surfaces with plastic slide bars

MTA 3000 Supporting surfaces Someco
MTA 3000 Storage area Someco

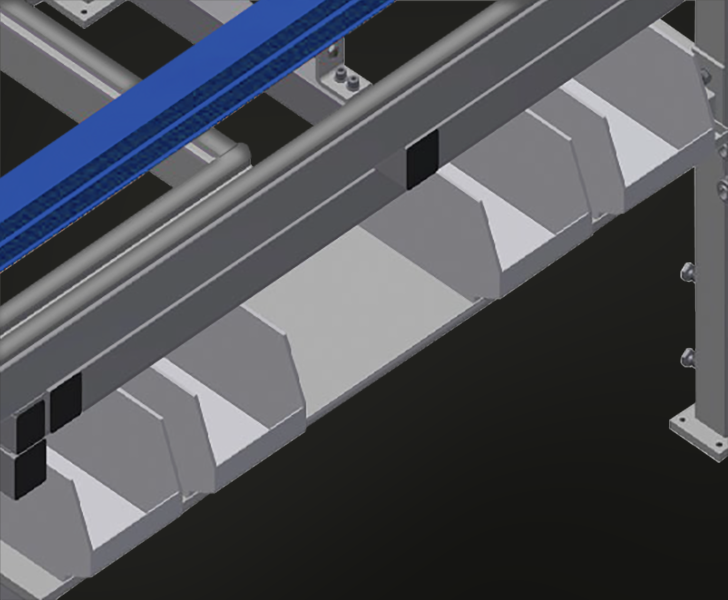

Storage area

Practical storage area under the table surface with 4 PVC containers for small accessories, hardware and screws

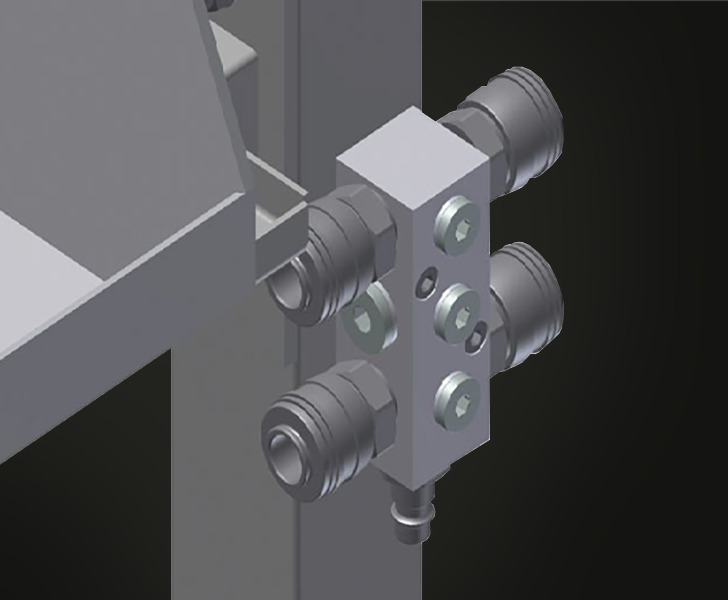

4-fold compressed air connection

4-fold compressed air connection for connecting compressed-air tools

MTA 3000 4-fold compressed air connection Someco
MTA 3000 Height adjustment Someco
Height adjustment
Adjustable height; working height can be set to 850 – 1.000 mm by means of adjustable feet
Brush strip (Optional)

Supporting surfaces with brush strip

MTA 3000 Brush strip Someco
MTA 3000 Felt strip Someco
Felt strip (Optional)

Supporting surfaces with felt strip

Rubber strips (Optional)

Supporting surfaces with rubber-knob profile

MTA 3000 Rubber strips Someco
MTA 3000 Casters Someco
Casters (Optional)

Mobile unit: two casters with brake and two fixed rollers provide mobility in all directions
