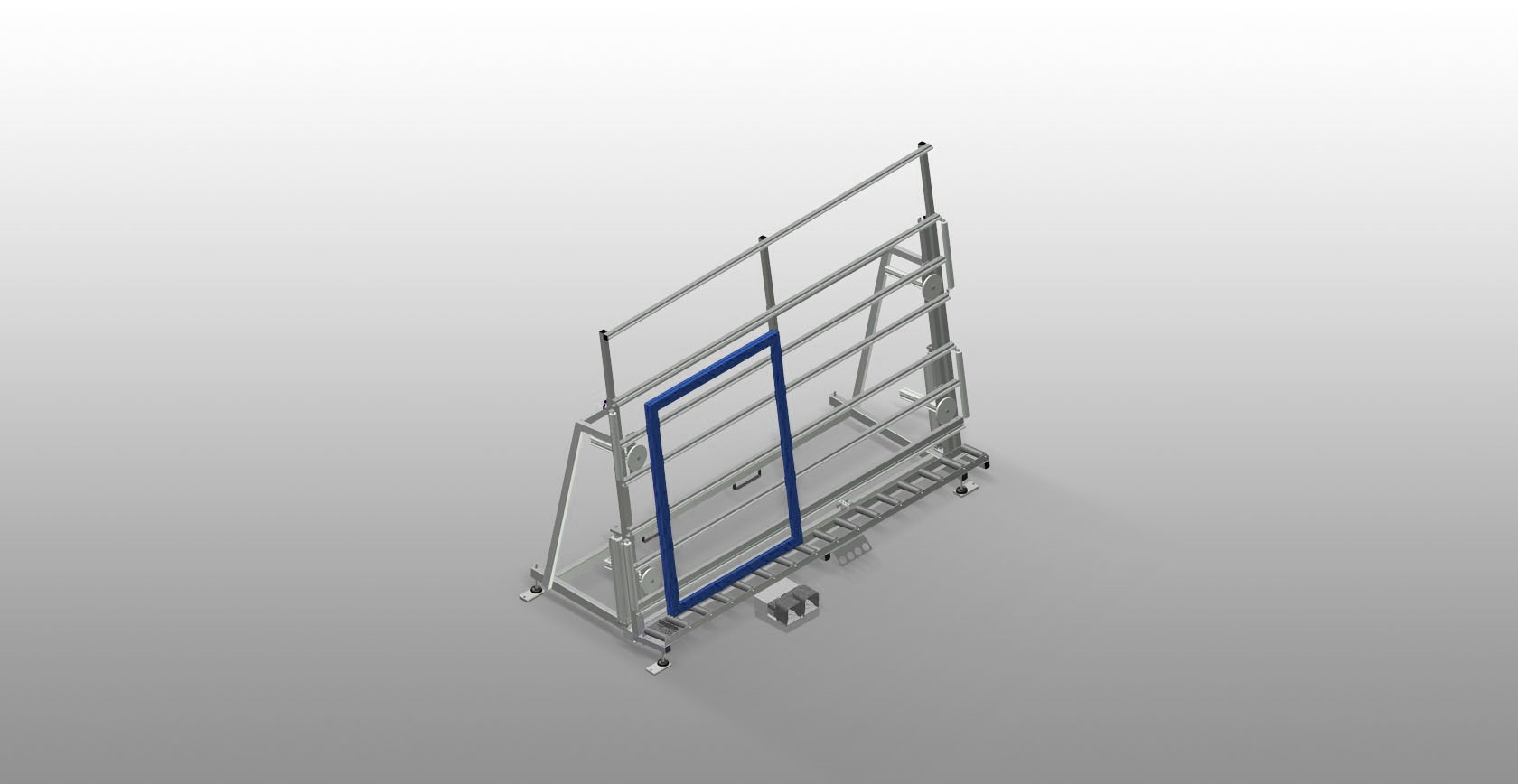

MS  3000
Assembly stand

Assembly table for vertical assembly. Stable steel construction. Ideal for vertical assembly. Suitable for lines. Infinitely variable intermediate positions for ergonomic working. Height adjustment by means of pneumatic cylinder. Roller support with steel rollers. Table supporting surface with plastic slide bars. Two horizontally adjustable profile clamps. 4-fold compressed air supply. Options: pull-out profile support for MS 3000; positionable profile clamps; holder plate for screw driving unit; mobility unit; rail; end stop; profile protectors for support rollers.
Technical data arrow_drop_down
CHARACTERISTICS
Length (mm)
3.110
Width (mm)
1.200
Vertical height (mm)
2.050
Pneumatic height adjustment (mm)
500
Roller conveyor width (mm)
200
Weight (kg)
330
Load capacity (kg)
300
4-fold compressed air supply

Operating air pressure (bar)
7
Air consumption approx. (l/min.)
35
Pneumatic vertical height adjustment

Horizontally adjustable profile clamps
2
Pull-out profile support

Positionable profile clamps

Holder plate L=290 mm

Mobility unit

Rail 2,0 m left and right

End stop

Profile protectors for support rollers

Included
Available

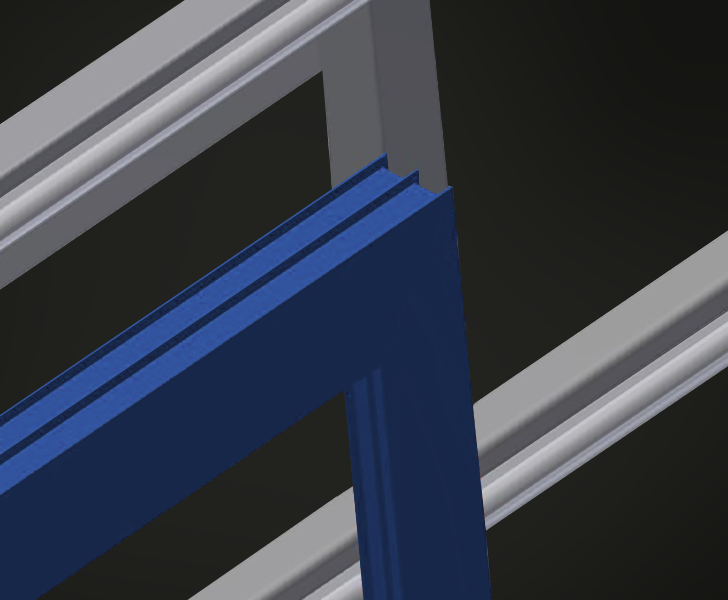

Supporting surfaces

Supporting surfaces with plastic slide bars

MS 3000 Supporting surfaces Someco
MS 3000 Roller support Someco

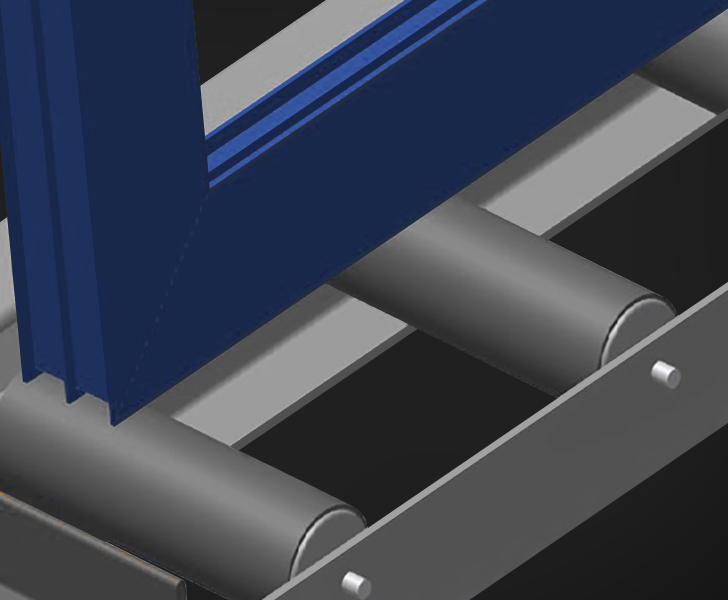

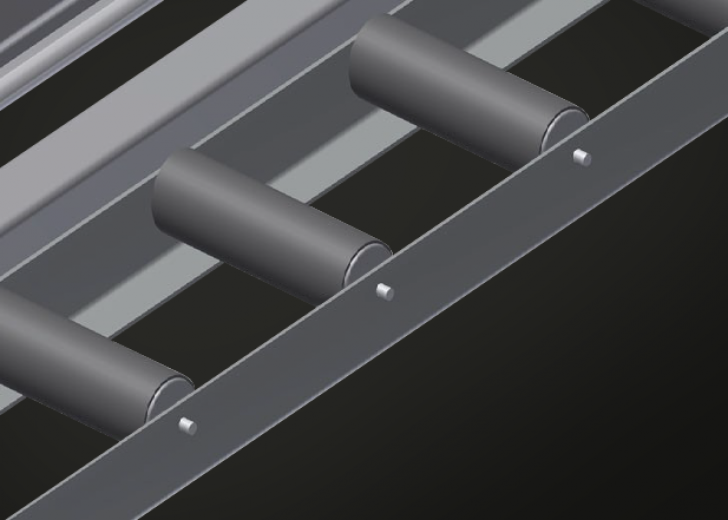

Roller support

Lower roller conveyor with support roller, L = 200 mm

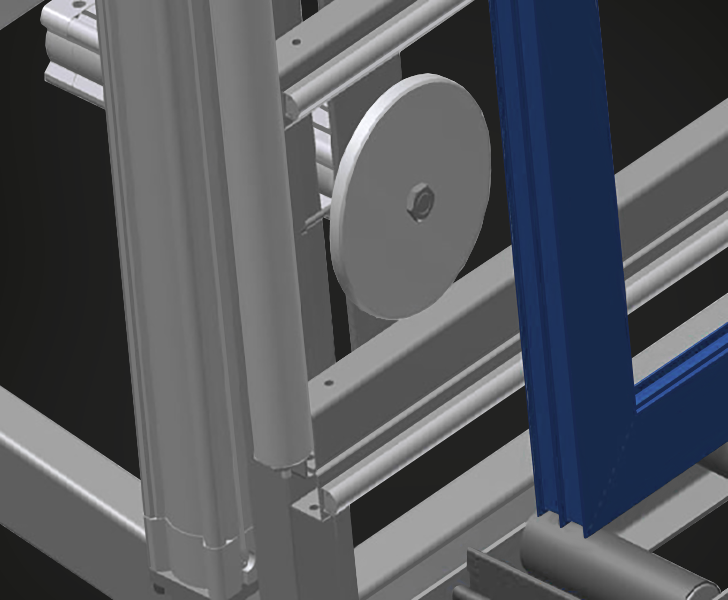

Clamps

Two material clamps at the side fix the profile while working, profile clamping height, max. 200 mm

MS 3000 Clamps Someco
MS 3000 Height adjustment Someco

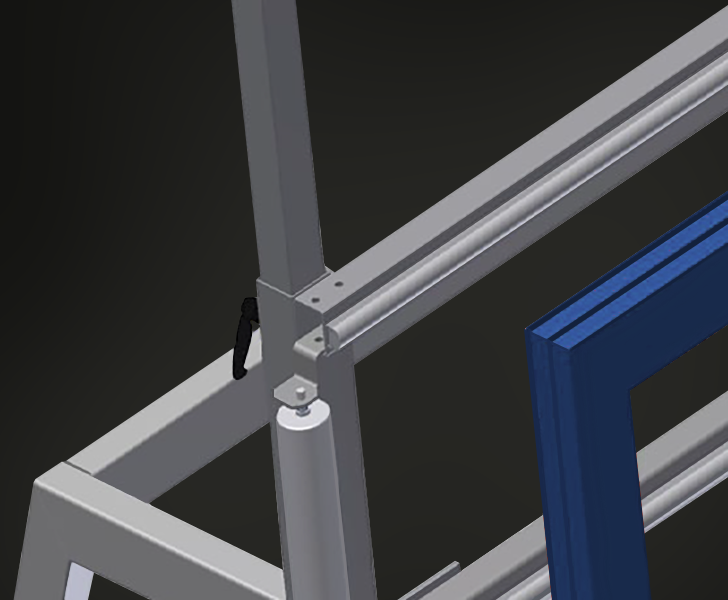

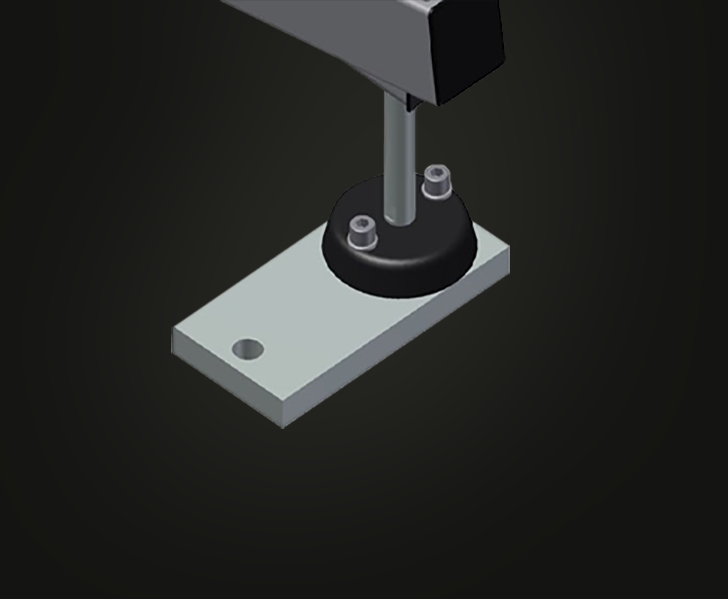

Height adjustment

Adjustable height, working height can be set by means of adjustable feet

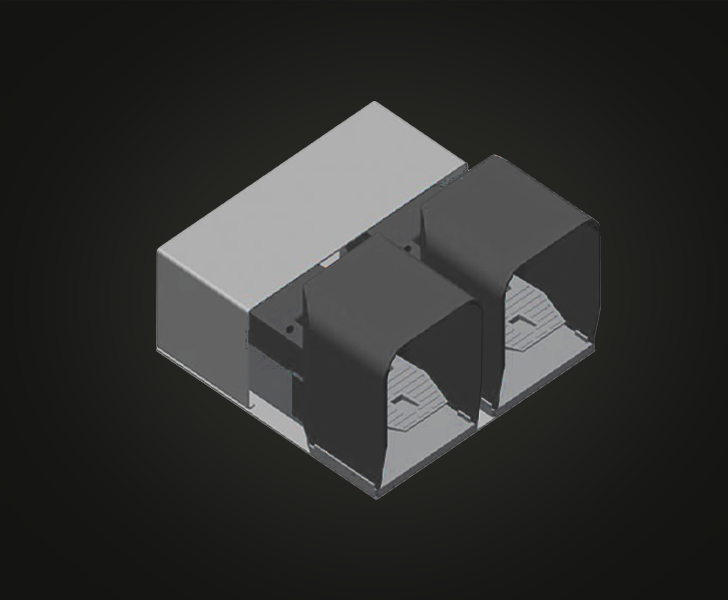

Foot switch

Control via foot valve. Height adjustable pneumatically by 500 mm in the vertical position, clamping is pneumatic

MS 3000 Foot switch Someco
MS 3000 4-fold compressed air connection Someco

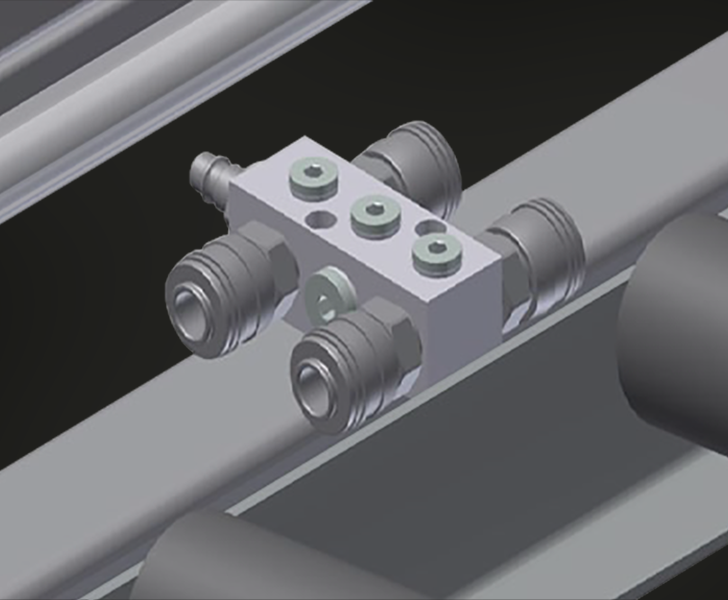

4-fold compressed air connection

4-fold compressed air connection for connecting compressed-air tools

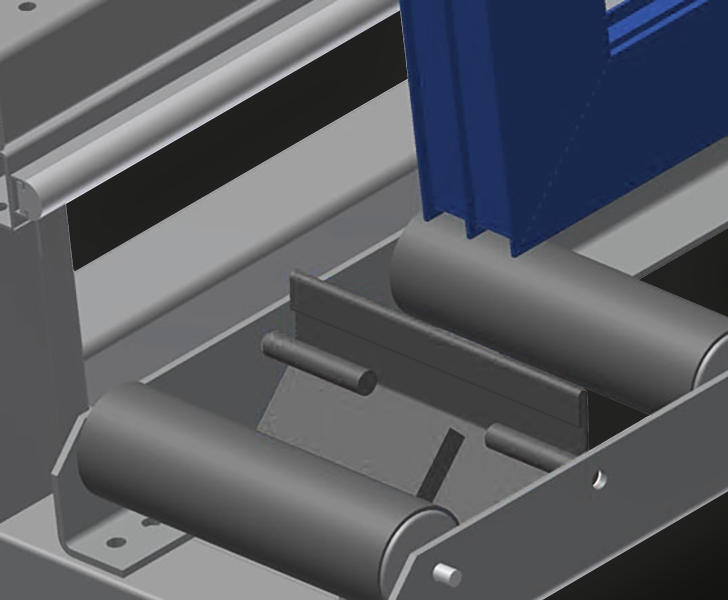

Lead-in rollers

Protective rollers for beginning or end of roller conveyor

MS 3000 Lead-in rollers Someco
MS 3000 Pull-out profile support Someco
Pull-out profile support (Optional)

The table support can be pulled out at the top for MS 3000 and MS 4000 by 800 mm and 500 mm to accommodate high frames

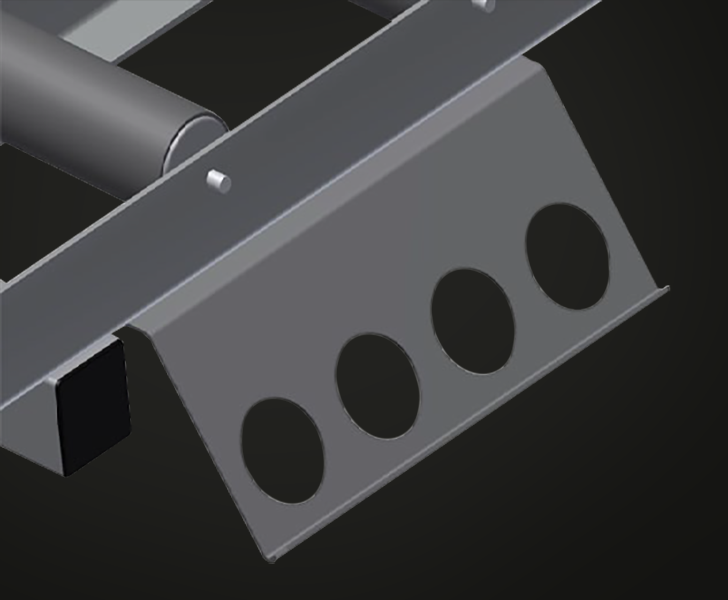

Holder plate for screw driving unit (Optional)

Tool rack for pneumatic tools

MS 3000 Holder plate for screw driving unit Someco
MS 3000 Positionable profile clamps Someco

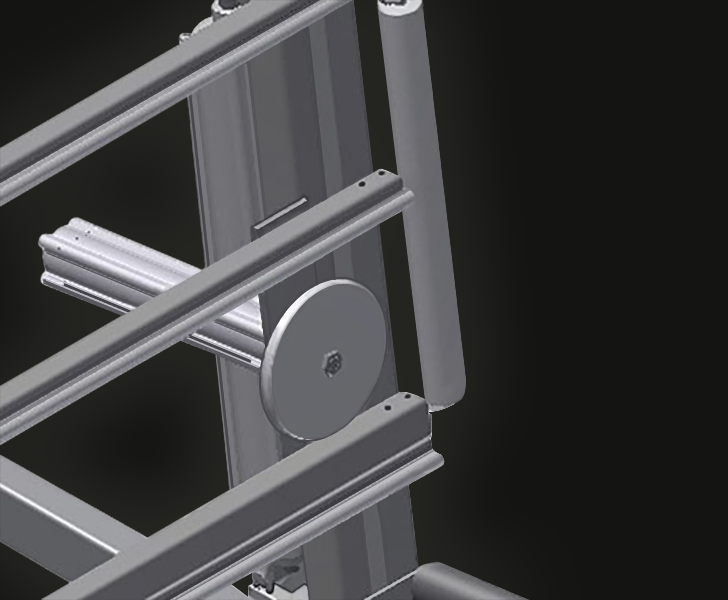

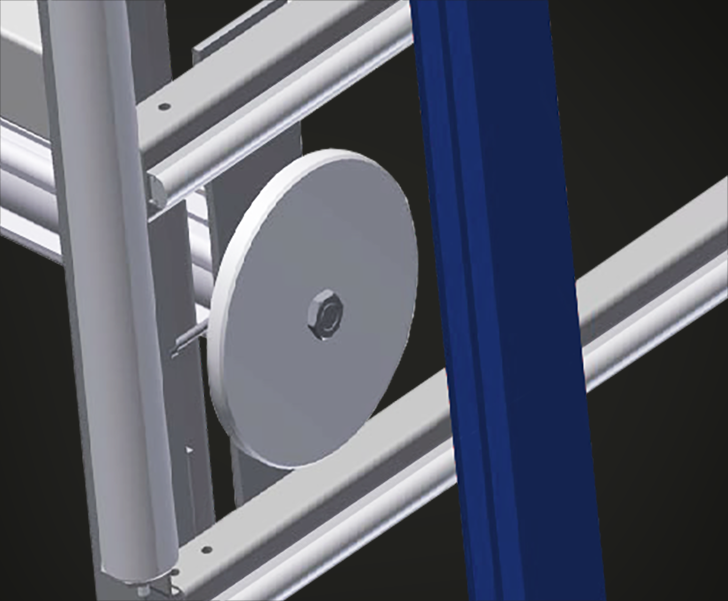

Positionable profile clamps (Optional)

Auxiliary clamps provide extra security when working

Profile protectors for support rollers (Optional)

Profile protectors for support rollers, 200 mm (Alum./16 x and Alum./21 x), roller conveyor with protective tubing over the rollers to protect the window element during infeed and outfeed

MS 3000 Profile protectors for support rollers Someco
MS 3000 End stop Someco
End stop (Optional)

End stop L = 200

Mobility unit (Optional)

Mobility unit for KT/KTH/MS/VE. Mobility unit with flanged rollers and fixing brake

MS 3000 Mobility unit Someco
MS 3000 Rails Someco
Rails (Optional)

Rails, 2.0 m, left and right
