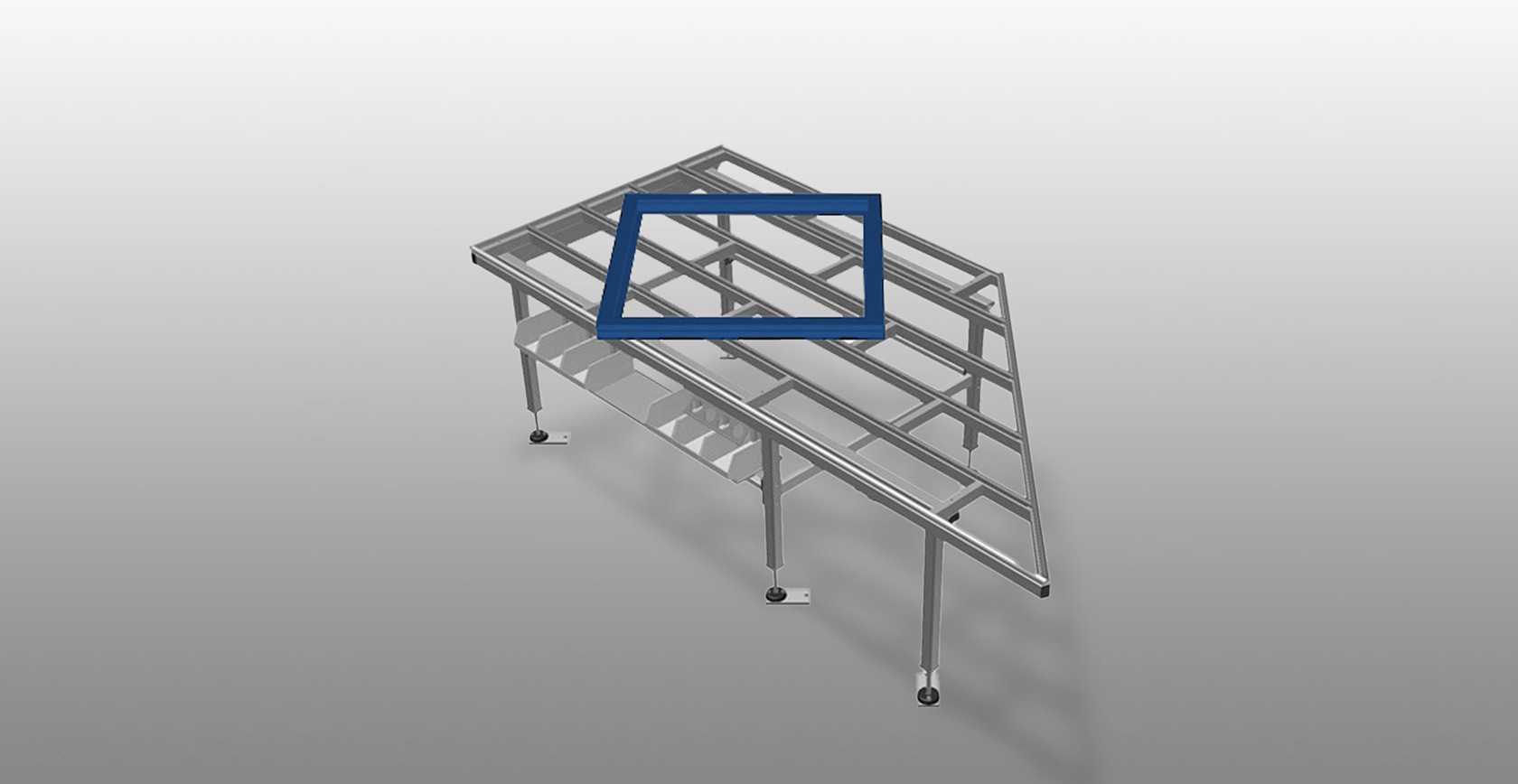

HT  2045 R
Horizontal table – right table, 45°

Horizontal table for all work tasks on frames and sashes. Stable steel construction. Angled work table; can be used as a pass-through in the production line or as a buffer zone. Assembly table for all work tasks on frames and sashes. Table supporting surface with plastic slide bars. Storage tray for setting down tools and accessories. Adjustable height. Simple installation with a modular system design.

Technical data arrow_drop_down
CHARACTERISTICS
Length (mm)
2.850
Width (mm)
1.300
Height (mm)
850 ÷ 1.000
Weight (kg)
100
Adjustable height

Storage tray for setting down tools and accessories

Table supporting surface with plastic slide bars

Table brush strip supporting surface

Table felt profile strip supporting surface

Table rubber knob profile

Roller support

Tool holder

4-fold compressed air supply

Storage trays

Parallelogram support for 90°

Table brush strip supporting surface for parallelogram support

Table felt profile strip supporting surface for parallelogram support

Table rubber knob profile for parallelogram support

Roller support for parallelogram support 90°

Triangle support

Table brush strip supporting surface for triangle support

Table felt profile strip supporting surface for triangle support

Table rubber knob profile for triangle support

Roller support surface for triangle support

Included
Available
Supporting surfaces

Supporting surfaces with plastic slide bars

HT 2045 R Supporting surfaces Someco
HT 2045 R Storage tray Someco
Storage tray

Storage tray for setting down tools and accessories

Height adjustment

Adjustable height; working height can be set to 850 – 1,000 mm by means of adjustable feet

HT 2045 R Height adjustment Someco
HT 2045 R Storage area Someco
Storage area (Optional)

Storage area with 6 plastic trays for small accessories, hardware and screws

Brush strip (Optional)

Supporting surfaces with brush strip

HT 2045 R Brush strip Someco
HT 2045 R Felt strip Someco
Felt strip (Optional)

Supporting surfaces with felt strip

Rubber strips (Optional)

Supporting surfaces with rubber-knob profile

HT 2045 R Rubber strips Someco
HT 2045 R Roller support cmpl. Someco
Roller support cmpl. (Optional)

Hard plastic rollers with polyamide coating, on plain bearings, load per roller 60 kg, convenient for transport and handling of PVC elements

Tool rack (Optional)

Tool rack for pneumatic or electrical tools

HT 2045 R Tool rack Someco
HT 2045 R 4-fold compressed air connection Someco
4-fold compressed air connection (Optional)

4-fold compressed air connection for connecting compressed-air tools

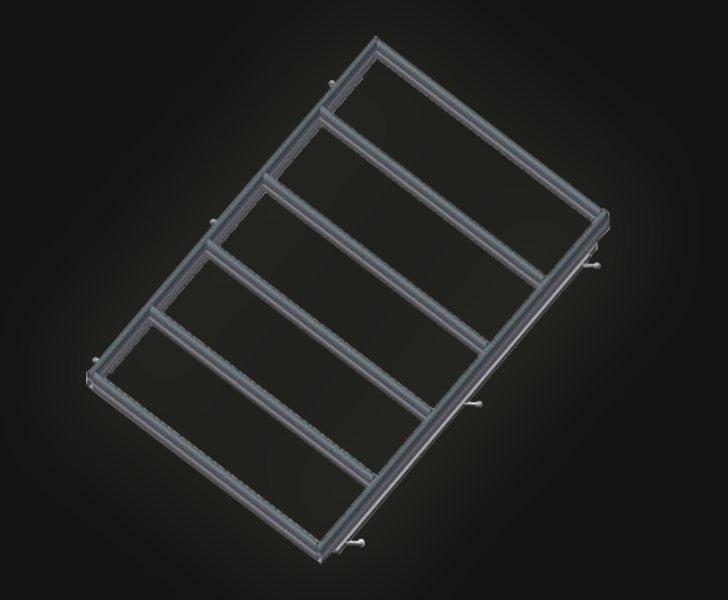

Parallelogram support, cmpl., for 90° (Optional)
The rhomboid support surface is available in versions with plastic sliding strips, brush strips, felt strips, rubber strips or roller support
HT 2045 R Parallelogram support, cmpl., for 90° Someco
HT 2045 R Triangle support, cmpl., for in-line use Someco

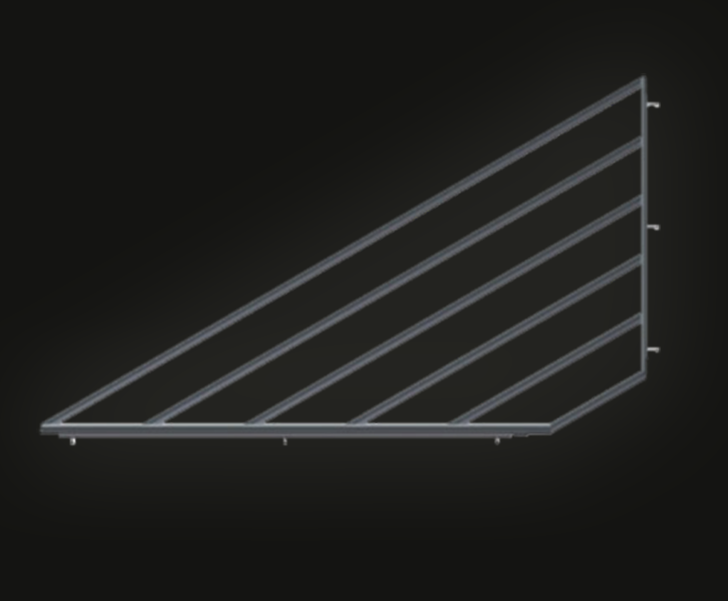

Triangle support, cmpl., for in-line use (Optional)
The triangular support surface is available in versions with plastic sliding strips, brush strips, felt strips, rubber strips or roller support
