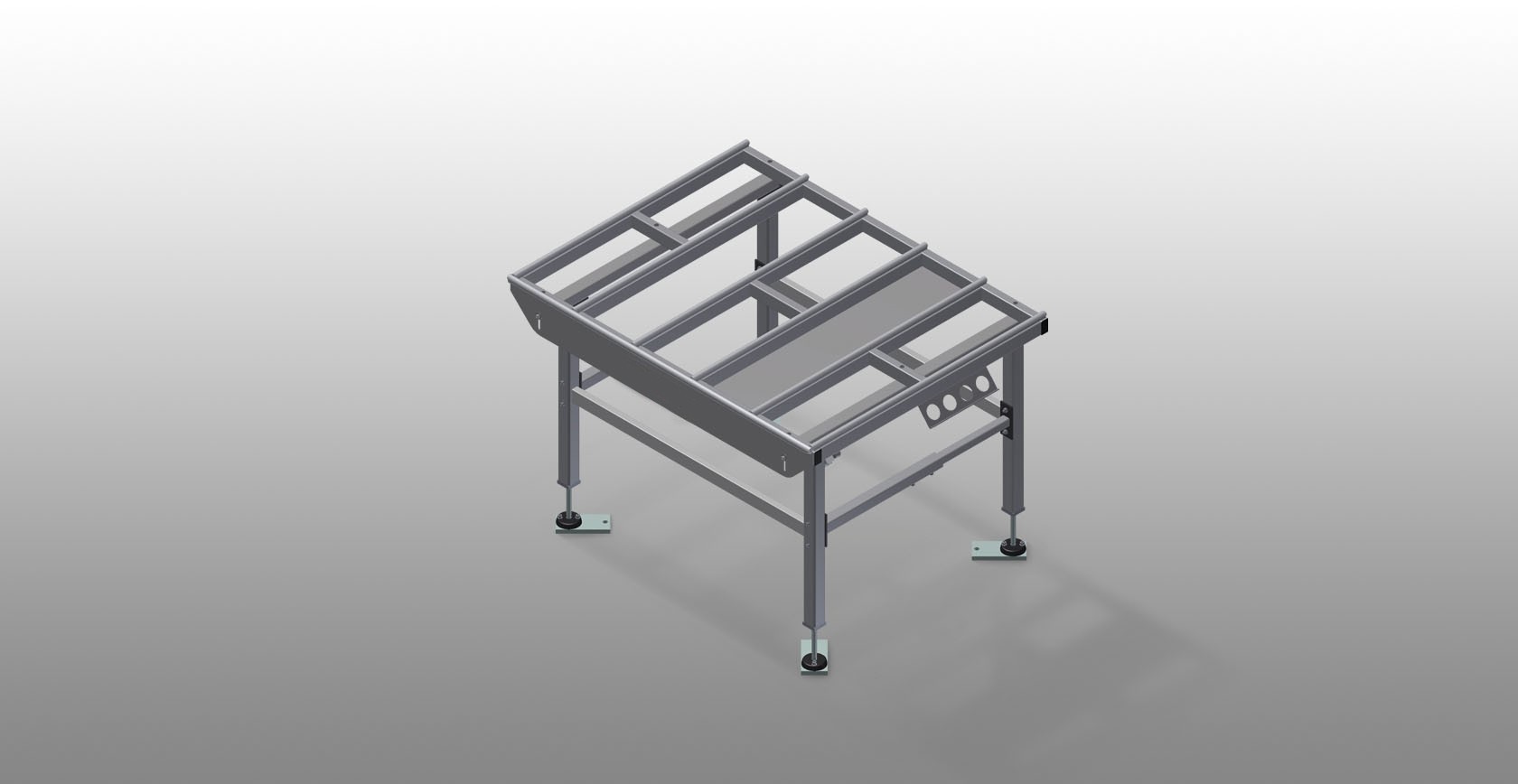

HT  1000
Horizontal table – individual table

Horizontal table for all work tasks on frames and sashes. Stable steel construction. Table supporting surface with plastic slide bars. Storage tray for setting down tools and accessories. Adjustable height. Simple installation with a modular system design. Options: also available with brush strips on request; also available with felt strips on request (for wooden elements); also available with rubber strips on request (for aluminium elements); roller support; tool rack; 4-fold compressed air supply.
Technical data arrow_drop_down
CHARACTERISTICS
Length (mm)
1.000
Width (mm)
1.300
Height (mm)
850 ÷ 1.000
Weight (kg)
70
Storage tray for setting down tools and accessories

Table supporting surface with plastic slide bars

Table brush strip supporting surface

Table felt profile strip supporting surface

Table rubber knob profile

Roller support

Tool holder

4-fold compressed air supply

Lifting unit

Included
Available
Supporting surfaces

Supporting surfaces with plastic slide bars

HT 1000 Supporting surfaces Someco
HT 1000 Storage tray Someco
Storage tray

Storage tray for setting down tools and accessories

Height adjustment

Adjustable height; working height can be set to 850 – 1,000 mm by means of adjustable feet

HT 1000 Height adjustment Someco
HT 1000 Brush strip Someco
Brush strip (Optional)

Supporting surfaces with brush strip

Felt strip (Optional)

Supporting surfaces with felt strip

HT 1000 Felt strip Someco
HT 1000 Rubber strips Someco
Rubber strips (Optional)

Supporting surfaces with rubber-knob profile

Tool rack (Optional)

Tool rack for pneumatic or electrical tools

HT 1000 Tool rack Someco
HT 1000 4-fold compressed air connection Someco
4-fold compressed air connection (Optional)

4-fold compressed air connection for connecting compressed-air tools

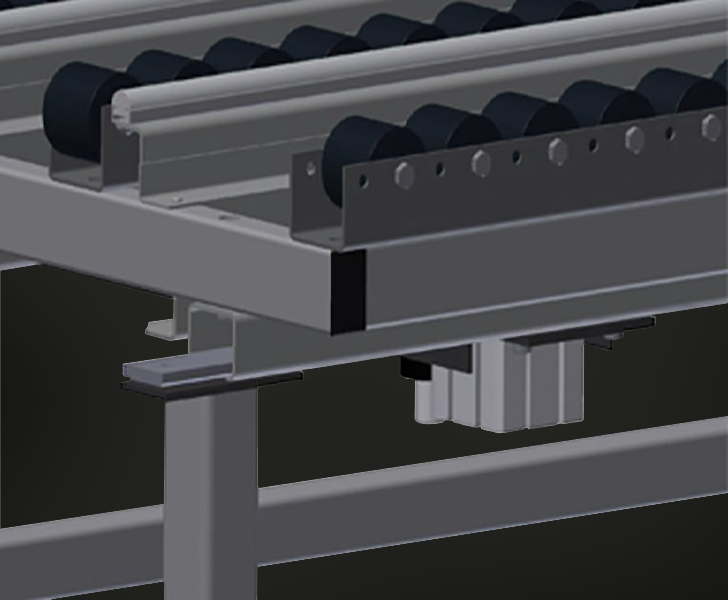

Roller support cmpl. (Optional)

Hard plastic rollers with polyamide coating, on plain bearings, load per roller 60 kg, convenient for transport and handling of PVC elements

HT 1000 Roller support cmpl. Someco
HT 1000 Pneumatic lifting unit Someco
Pneumatic lifting unit (Optional)

Lifting unit L = 1.000 mm
