VE  4000
Inspection and glazing units

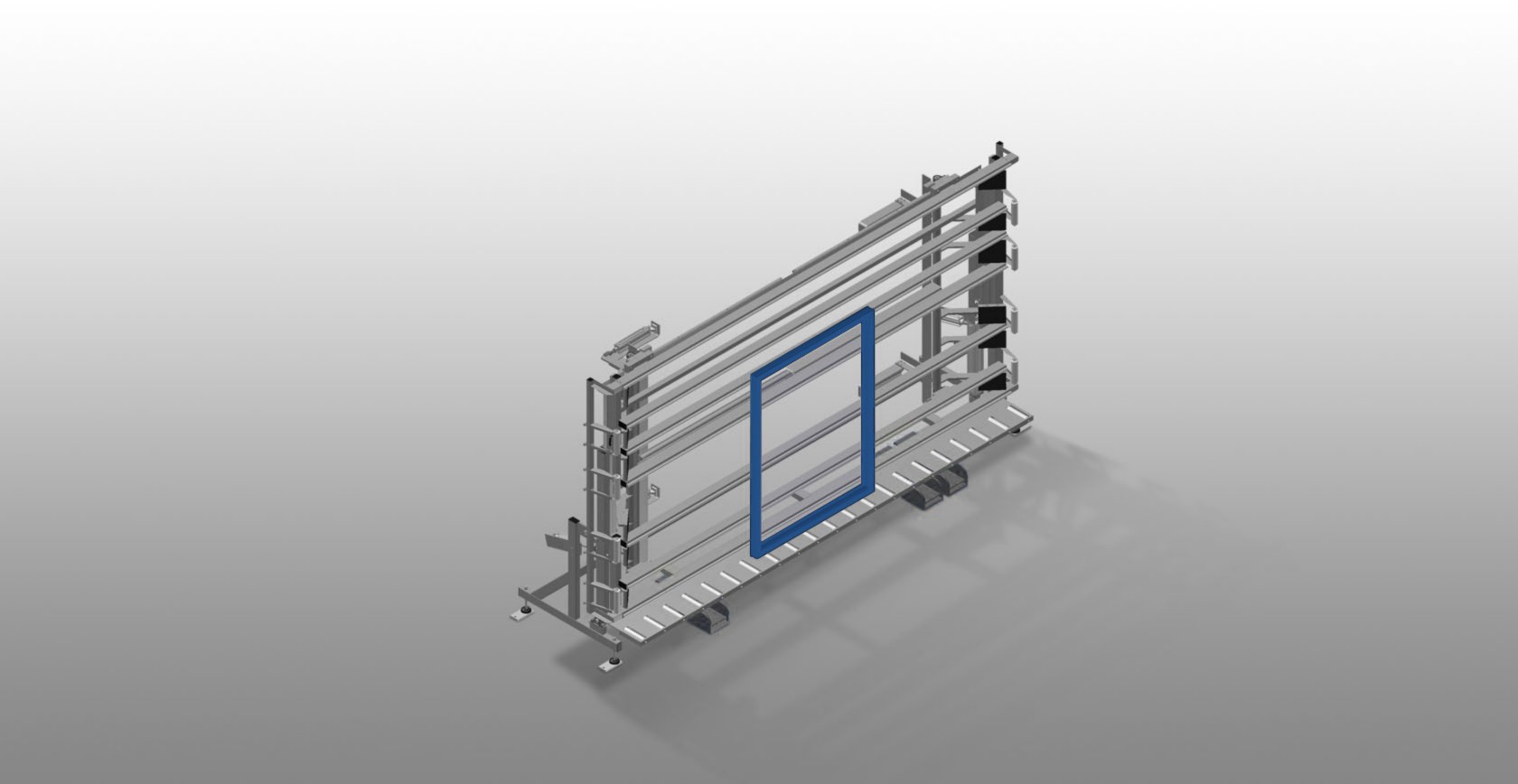

Inspection and glazing unit for glazing and final inspection in individual and serial assembly line production. Quick and precise assembly of windows, doors and elements. Stable steel construction. Precision ensured through parallel clamping bar pressing technique. Height continuously adjustable. Easy operation by means of foot switch. Two pressing bars which fold down and can be moved pneumatically and 4-fold compressed air supply.

Technical data arrow_drop_down
CHARACTERISTICS
Length (mm)
5.440
Width (mm)
1.180
Height (mm)
2.600
Maximum clamping width (mm)
4.000
Minimum clamping width (mm)
390
Adjustable height (mm)
500
Clamping bar height (mm)
2.300
Clamping bar width (mm)
200
Height continuously adjustable

Lower roller conveyor width (mm)
200
Weight (kg)
580
Load capacity (kg)
200
4-fold compressed air supply

Operating air pressure (bar)
7
Air consumption approx. (l/min.)
35
Lead-in rollers right, complete L= 2052 mm

Lead-in rollers left, complete L= 2052 mm

Mobility unit

Rail 2,0 m left and right

Profile protectors for L= 200 mm

Pneumatic tilt adjustment of 0° – 8°

Included
Available
Back support

Rear back support with plastic slide bars

VE 4000 Back support Someco

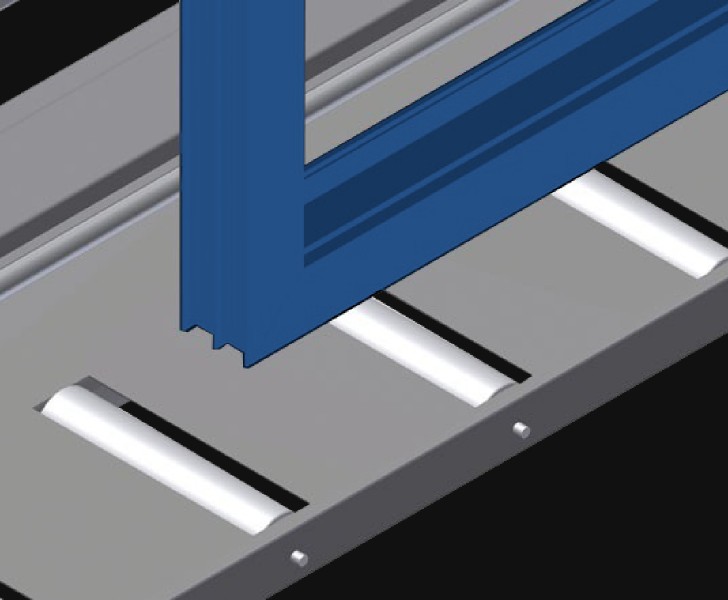

VE 4000 Roller support Someco
Roller support

Lower roller conveyor with support roller, L = 200 mm

Foot switch

All functions are controlled via foot valves

VE 4000 Foot switch Someco

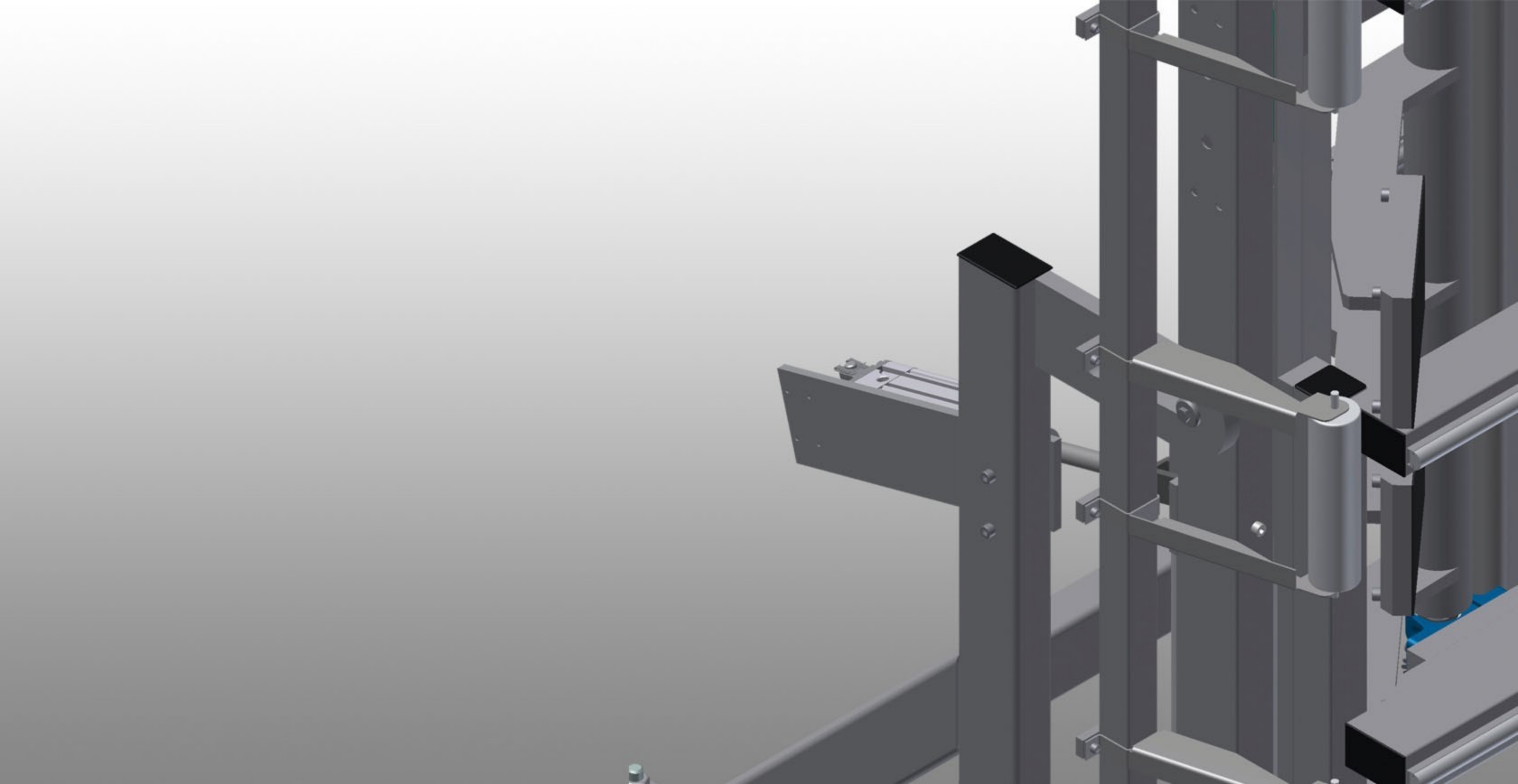

VE 4000 Pressing bar Someco

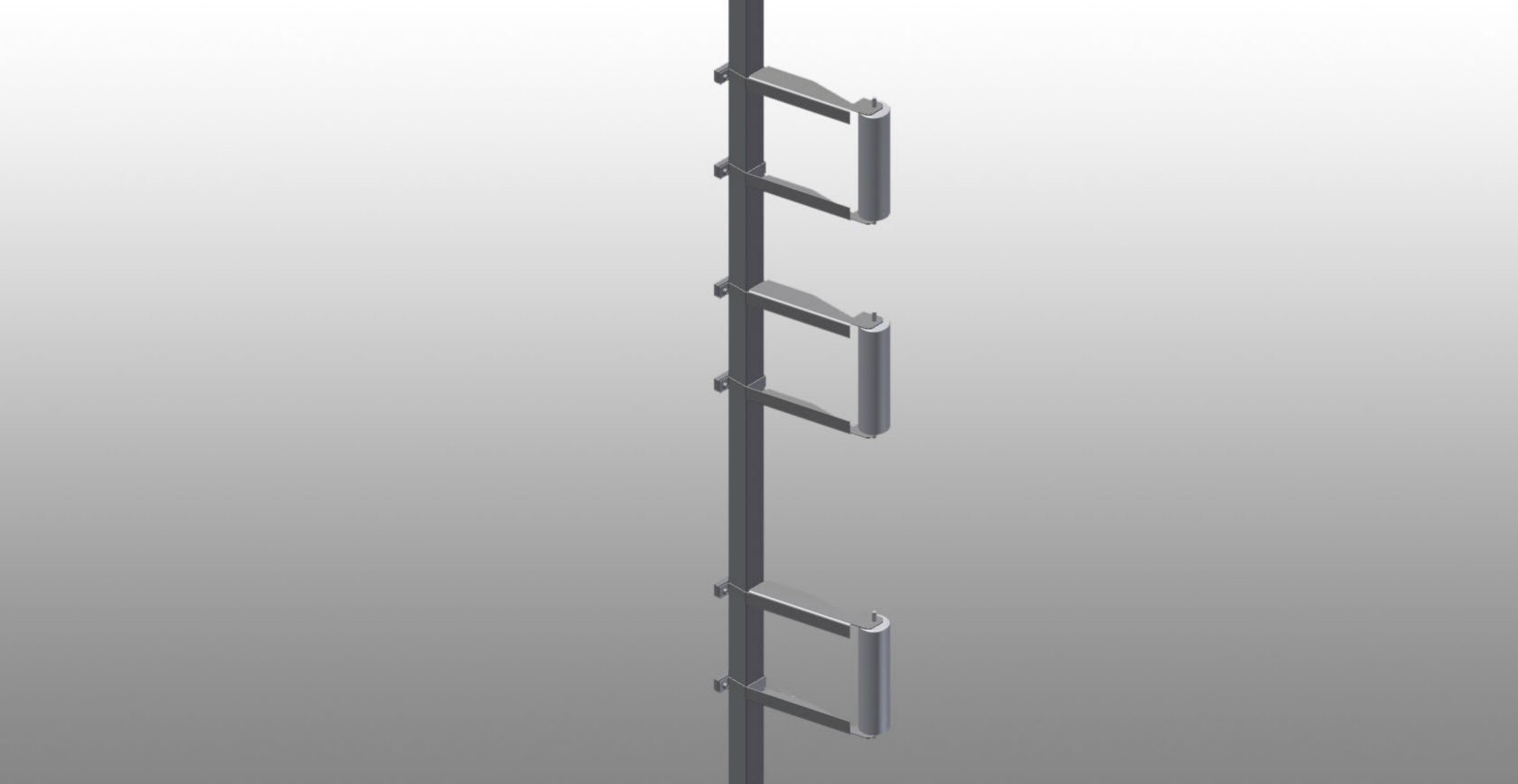

Pressing bar

Simultaneous folding and moving of the pressing bars ensure a minimum of time is required for opening and closing the press. Allows free pass-through of the window

Left lead-in rollers (Optional)

Protective rollers for beginning or end of roller conveyor

VE 4000 Left lead-in rollers Someco
VE 4000 Right lead-in rollers Someco
Right lead-in rollers (Optional)

Protective rollers for beginning or end of roller conveyor

Tilt adjustment of 0° - 8° (Optional)

Pneumatic tilt adjustment of 0° - 8°

VE 4000 Tilt adjustment of 0° - 8° Someco
VE 4000 Profile protectors Someco
Profile protectors (Optional)

Profile protectors for support rollers 200 mm. Support rollers covered with protective tubing

Mobility unit (Optional)

Mobility unit for KT/KTH/MS/VE. Mobility unit with flanged rollers and fixing brake

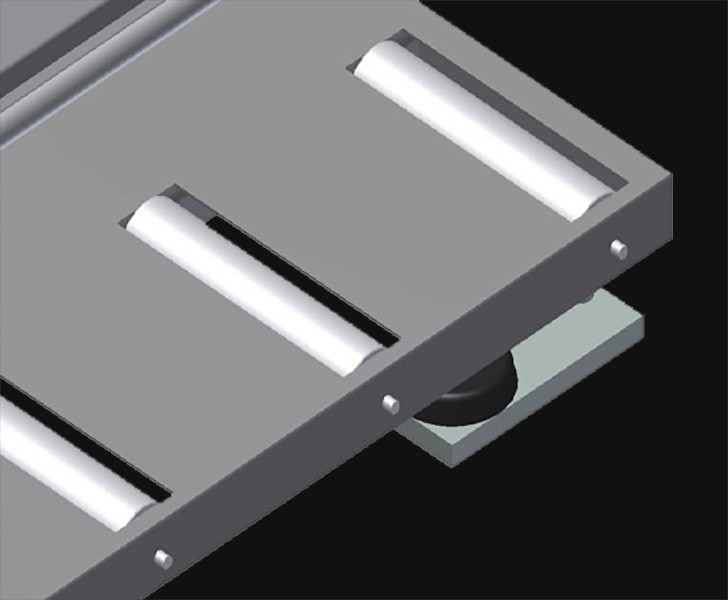

VE 4000 Mobility unit Someco

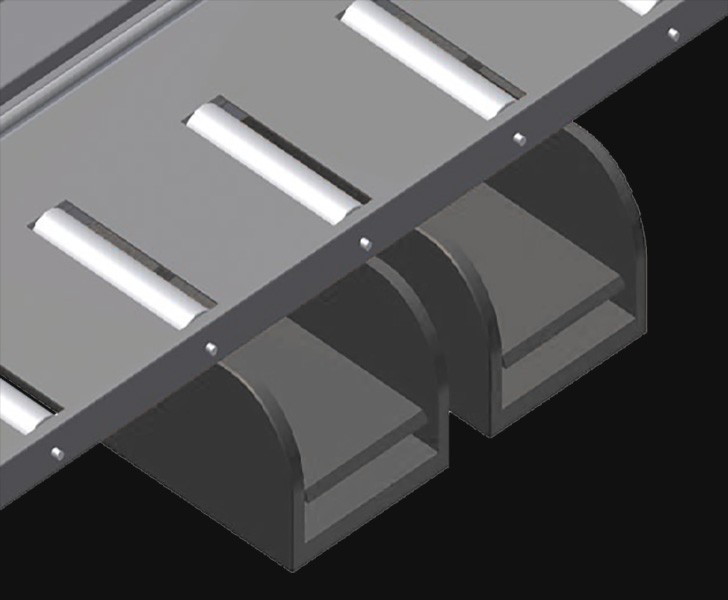

VE 4000 Rails Someco
Rails (Optional)

Rails, 2.0 m, left and right
