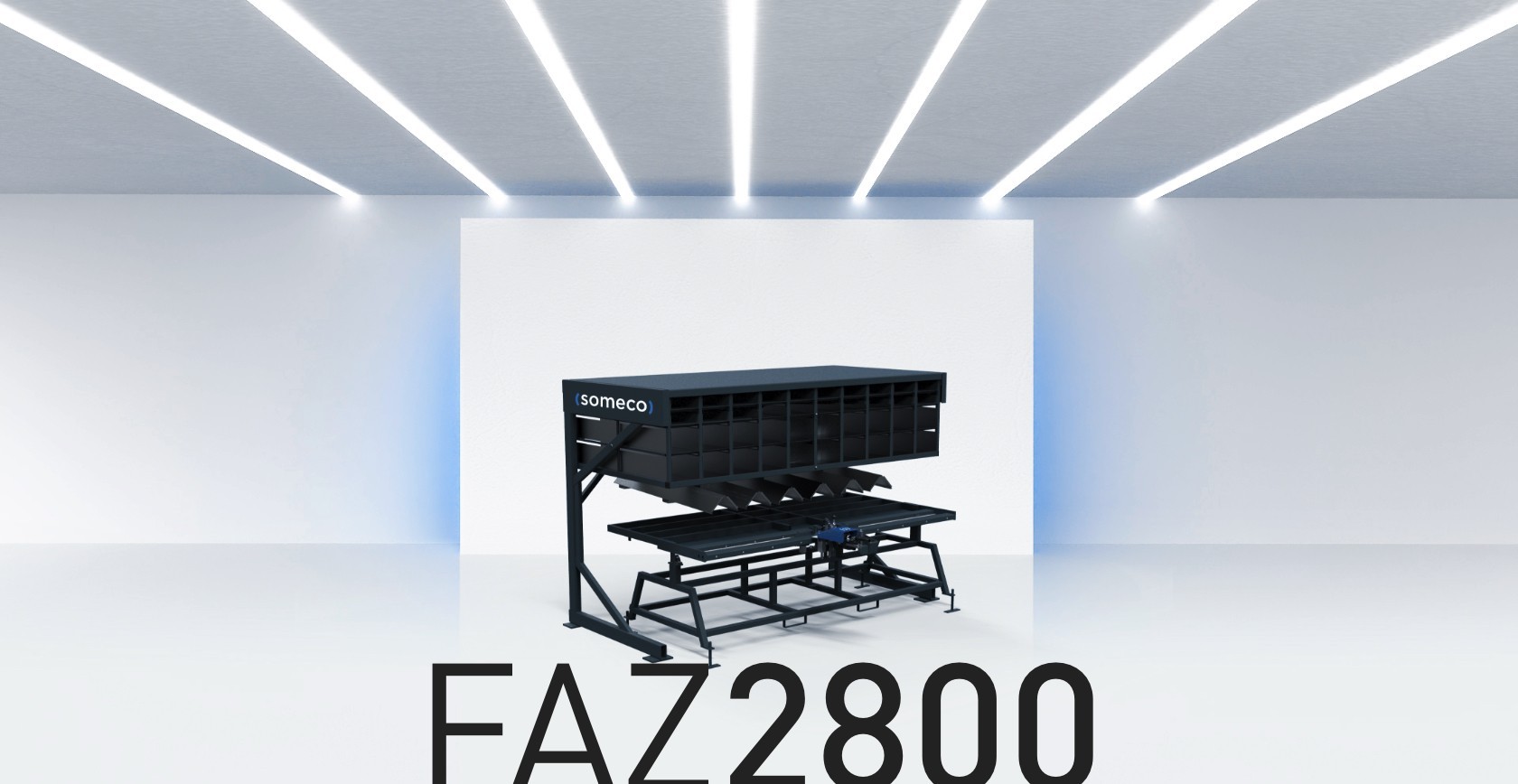

FAZ  2800
Sash assembly centre

home / application type / Pvc
Sash assembly centre for installing hardware on PVC and aluminium window sashes. Ergonomic fixing of hardware in a very short time. Sash assembly table for measuring and cutting to length of hardware components. Optimisation of sash processing by carrying out various work tasks at a single workstation. Assembly table can be tilted pneumatically. The sash, measurement and centring units can be moved pneumatically. Gear cropper with stops for a centred and consistent handle position. Two stop blocks for different sash widths. Mobile screwing unit with pneumatic height adjustment. Manual insertion funnel for second screw length. Automatic depth shutoff. Screw feed unit. Table supporting surface with plastic slide bars.
  • Table length 2,800 mm
  • Table width 1,400 mm
  • Total length 3,400 mm
  • Total width 2,000 mm
  • Weight 450 kg
  • Table height adjustable 850 - 1,000 mm
  • Table inclination approx. 15°
  • Sash inside dimensions approx. 280 - 2,300 mm
  • Compressed air supply 7 bar
  • Air consumption:
       Screw driving unit approx. 250 l/min.
    •    Clamping unit approx. 35 l/min.
  • Screw dimensions:

       Head diameters 5.0 - 9.0 mm

    •    Shank diameters 3.5 - 4.5 mm
    •    Length approx. 10.0 - 35.0 mm
  • Power supply 230/400 V, 3~, 50 Hz
  • Electrical connected load approx. 3 kW
Technical data arrow_drop_down
CHARACTERISTICS
Table length (mm)
2.800
Table width (mm)
1.400
Total length (mm)
3.400
Total width (mm)
2.000
Weight (kg)
450
Table height adjustable (mm)
850 - 1.000
Table inclination (°)
15
Sash inside dimensions (mm)
280 - 2.300
SCREW DIMENSIONS
Head diameters (mm)
5,0 - 9,0
Shank diameters (mm)
3,5 - 4,5
Length approx. (mm)
10 - 35
AIR CONSUMPTION
Screw driving unit approx. (l/min.)
250
Clamping unit approx. (l/min.)
35
PNEUMATIC CONNECTION
Pressure (bar)
7
Hose connection
DN10
Included
Available
Supporting surfaces

Supporting surfaces with plastic slide bars

Pvc FAZ 2800 Supporting surfaces Someco
Pvc FAZ 2800 Screwing unit Someco
Screwing unit

Mobile screwing unit with pneumatic height adjustment. Manual insertion funnel for second screw length. Automatic depth shutoff

Stop block

Two stop blocks for two sash widths

Pvc FAZ 2800 Stop block Someco
Pvc FAZ 2800 Gear cropper Someco
Gear cropper

Gear cropper with stops for a centred and consistent handle position. Gear cropper with open cutting tool

Screw feed unit

Screw feed unit with automatic screw feeding

Pvc FAZ 2800 Screw feed unit Someco
Pvc FAZ 2800 Stop block Someco
Stop block (Optional)

Stop blocks for additional sash widths

Laser unit (Optional)

Laser for screw driving position

Pvc FAZ 2800 Laser unit Someco
Pvc FAZ 2800 Hinge drilling unit Someco
Hinge drilling unit (Optional)

Hinge drilling unit with adjustable twospindle boring head, pneumatic height adjustment, with stops for the left and right drilling positions

Handle hole drilling unit (Optional)

Handle hole drilling unit installed at a fixed position with hydro-pneumatic drill feed and clamping unit; 3-spindle boring head

Pvc FAZ 2800 Handle hole drilling unit Someco
Pvc FAZ 2800 Lock case milling unit Someco
Lock case milling unit (Optional)

Milling unit can be moved manually with stop for lock case milling. Cutter diameter 12 mm

Folding stops (Optional)

Stop rail with 14 folding stops for a consistent handle position (7x left, 7x right)

Pvc FAZ 2800 Folding stops Someco
Pvc FAZ 2800 Hardware rack Someco
Hardware rack (Optional)

For orderly hardware storage at the sash assembly station
